HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116573

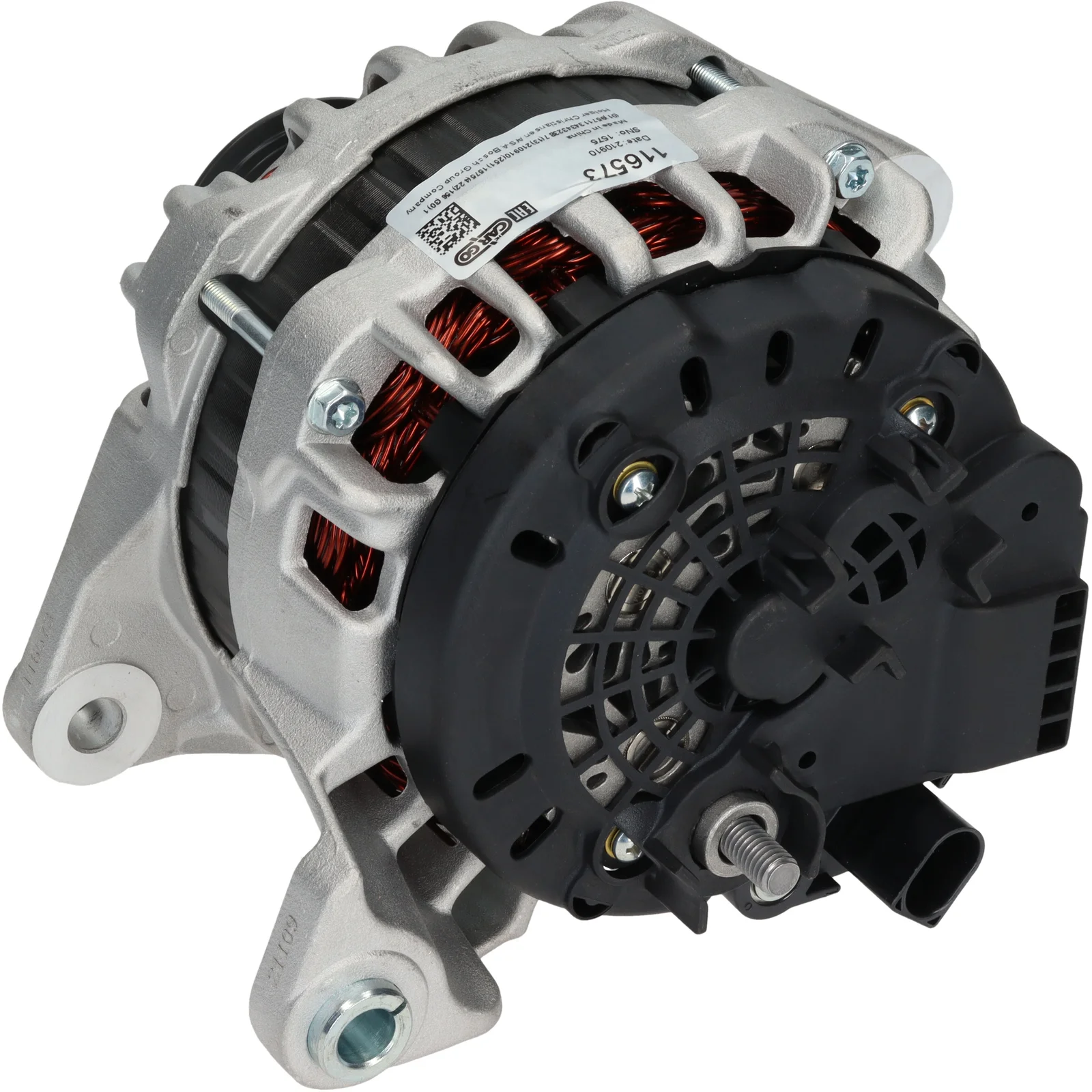

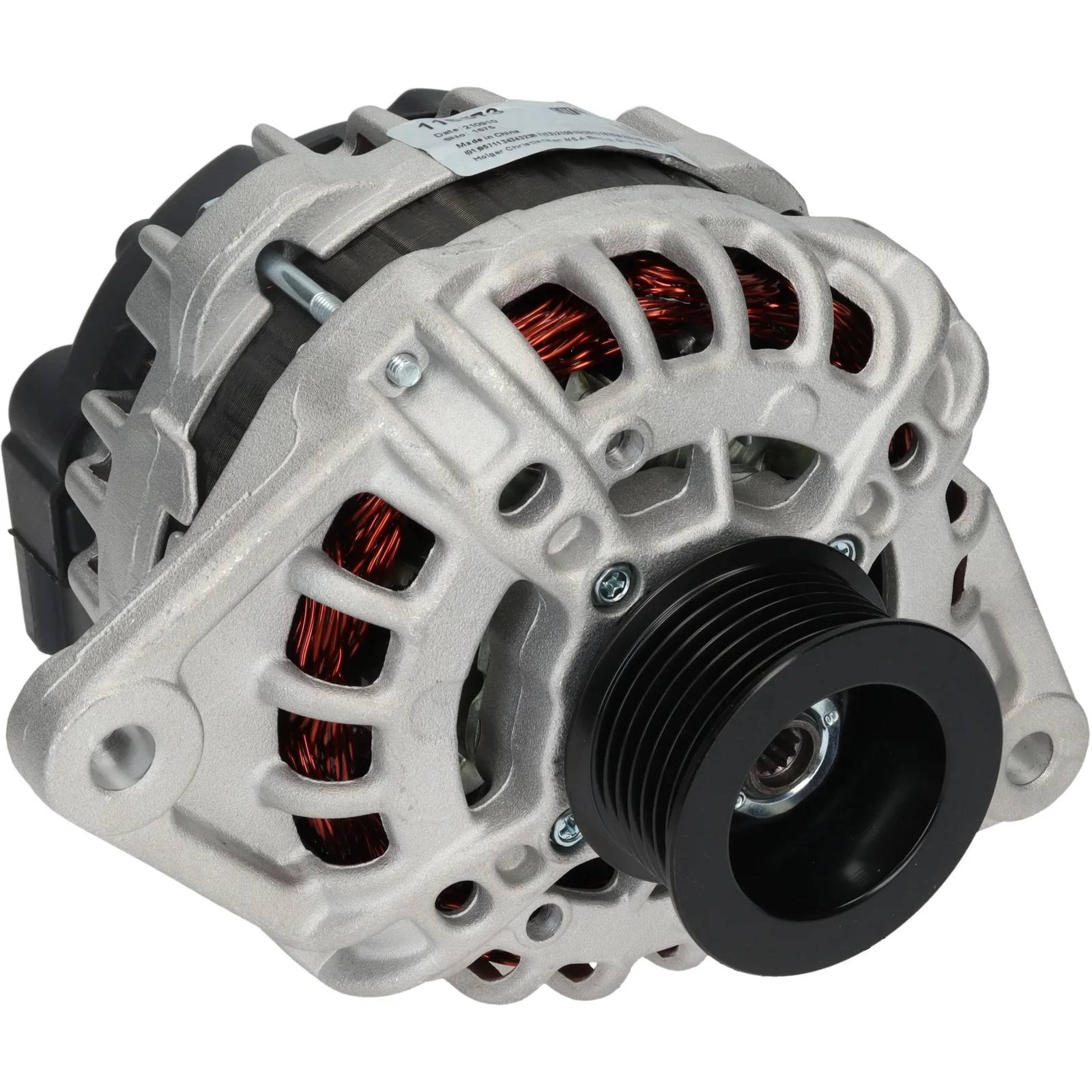

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 83.40

Description

Voltage: 14
Amp: 150
Pulley diameter: 41.40
Width/holder arm: 14.20
Mounting bracket diameter: 83.40
Bracket hole: 10.50
Belt adjustment bracket hole position: 55
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 55.00
Grooves/pulley: 7
Radius: 95.00
Radius 2: 95.00
B+: M8
Position/B+ in minutes: 22
Rotation: CW
Plug number: PL174
Total length mm: 180.00
Terminal type: COM
ID Code: 24
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL0781, F000BL0782, F032116573, 5801580927

  • Normalised article numbler
    a0665pr, a0665s, cal10547, f000bl0781, f000bl0782, f032116573, 8el015637381, 287631, 12090817, 505594150, 5801580927
  • Description
    Voltage: 14
    Amp: 150
    Pulley diameter: 41.40
    Width/holder arm: 14.20
    Mounting bracket diameter: 83.40
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 55
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 55.00
    Grooves/pulley: 7
    Radius: 95.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in minutes: 22
    Rotation: CW
    Plug number: PL174
    Total length mm: 180.00
    Terminal type: COM
    ID Code: 24
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0781, F000BL0782, F032116573, 5801580927

    • Normalised article numbler
      a0665pr, a0665s, cal10547, f000bl0781, f000bl0782, f032116573, 8el015637381, 287631, 12090817, 505594150, 5801580927
