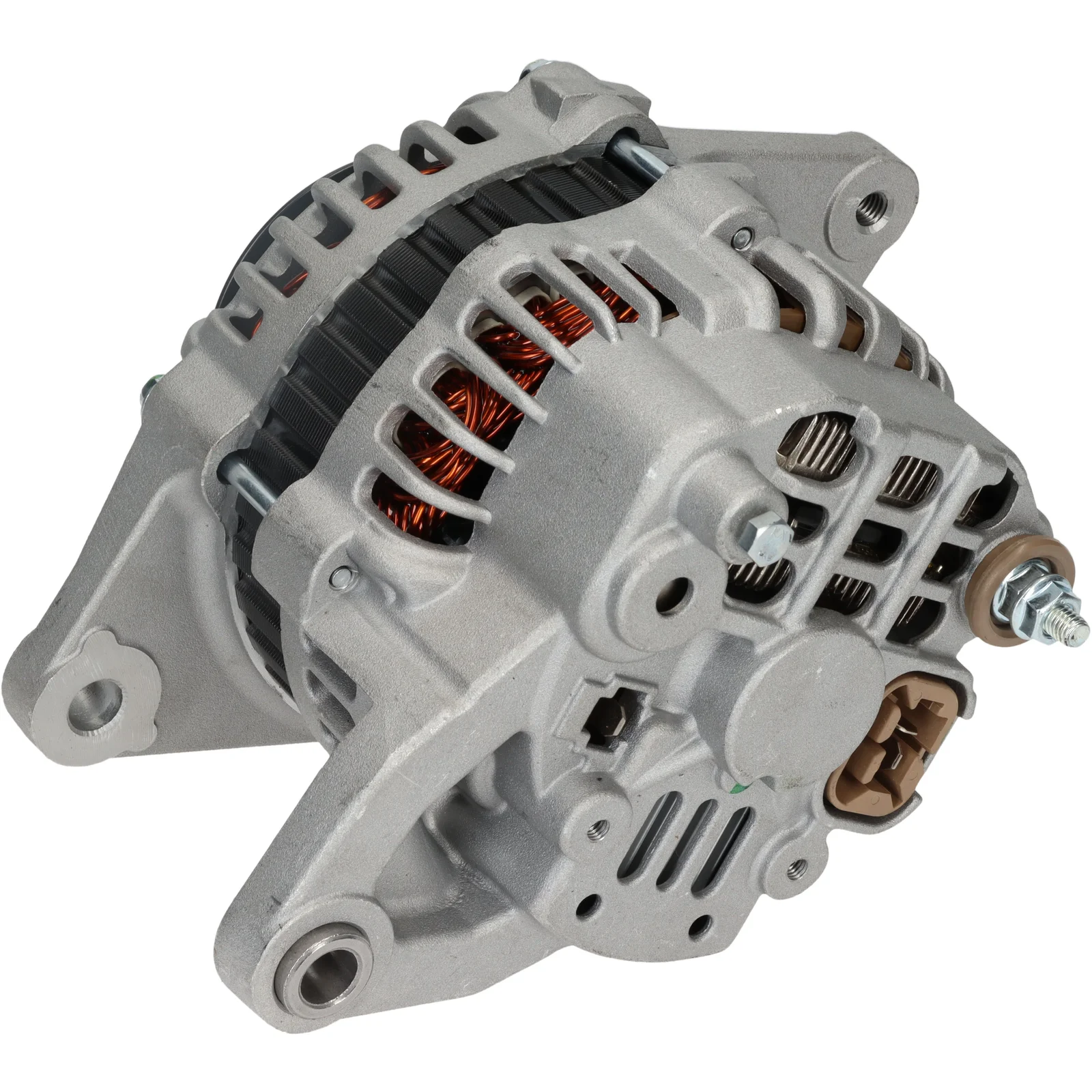

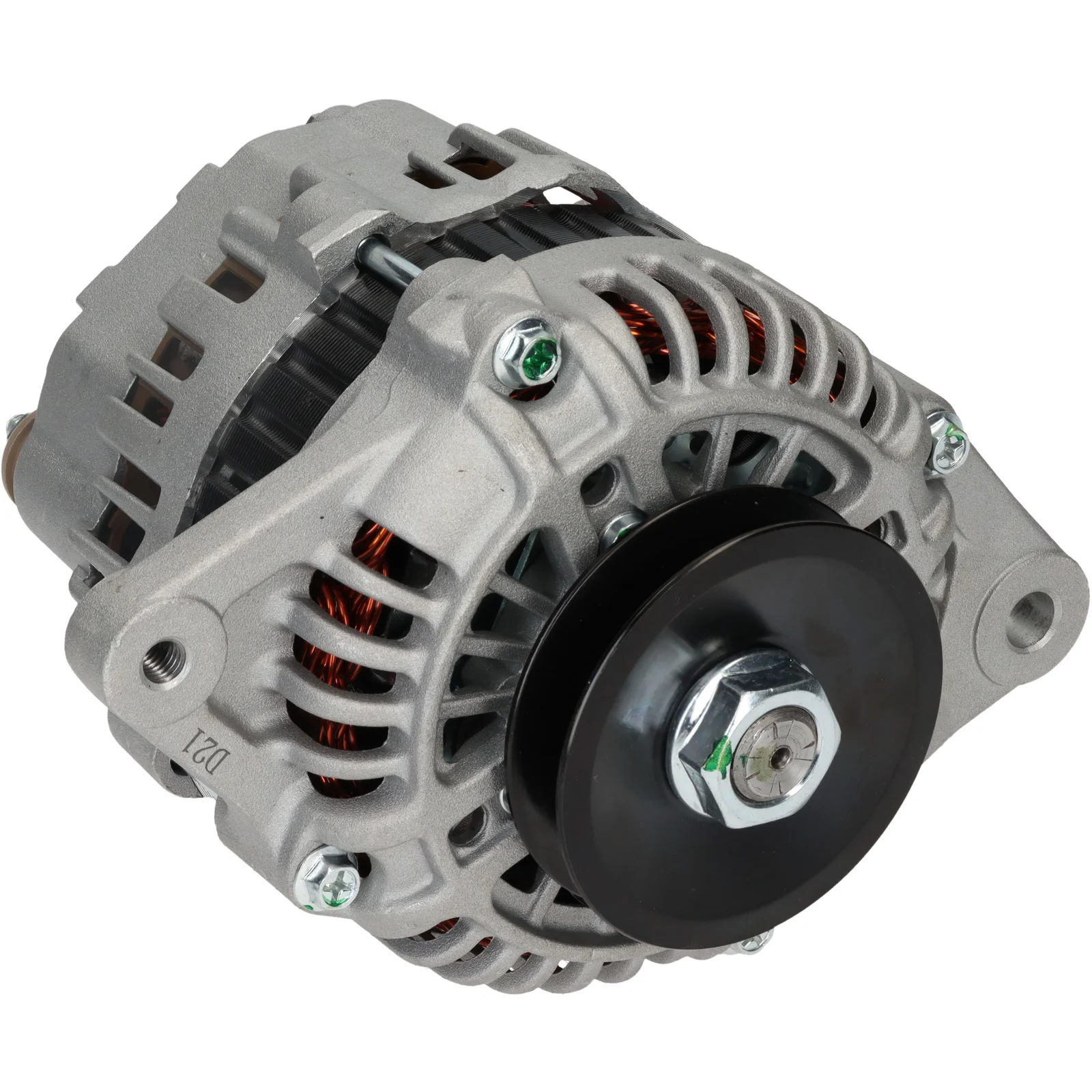

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116574

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 67.20

Description

Voltage: 14
Amp: 80
Pulley dist.: 42.60
Width/holder arm: 13.00
Mount. bracket dist.: 67.20
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 73.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL194
Terminal type: R-L
Lamp type: Inactive
Pulley: P

Files

  • OEM
    A005TA5977, A005TA5977B, A005TA5977C, A5TA5977, A5TA5977B, A5TA5977C, F032116574, 3N301-64011, 3R600-64011, 3R600-64012

  • Normalised article numbler
    a005ta5977, a005ta5977b, a005ta5977c, a5171, a5ta5977, a5ta5977b, a5ta5977c, cal35371, f032116574, lra03682, 3n30164011, 3r60064011, 3r60064012, 113437, 286743, 12061088, 695526080
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 42.60
    Width/holder arm: 13.00
    Mount. bracket dist.: 67.20
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 73.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL194
    Terminal type: R-L
    Lamp type: Inactive
    Pulley: P

    Files

  • Suitable for these vehicles

    • OEM
      A005TA5977, A005TA5977B, A005TA5977C, A5TA5977, A5TA5977B, A5TA5977C, F032116574, 3N301-64011, 3R600-64011, 3R600-64012

    • Normalised article numbler
      a005ta5977, a005ta5977b, a005ta5977c, a5171, a5ta5977, a5ta5977b, a5ta5977c, cal35371, f032116574, lra03682, 3n30164011, 3r60064011, 3r60064012, 113437, 286743, 12061088, 695526080
