HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116576

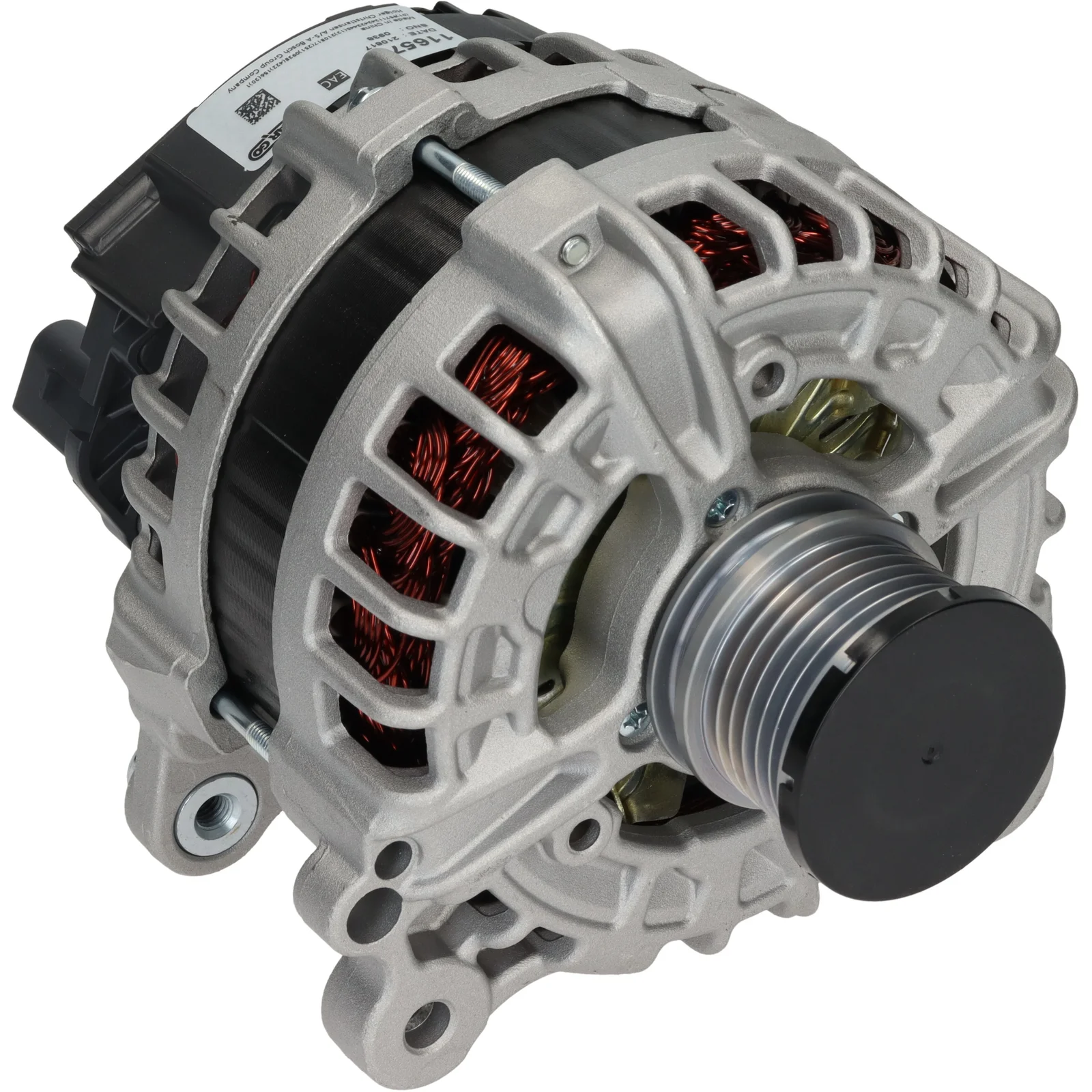

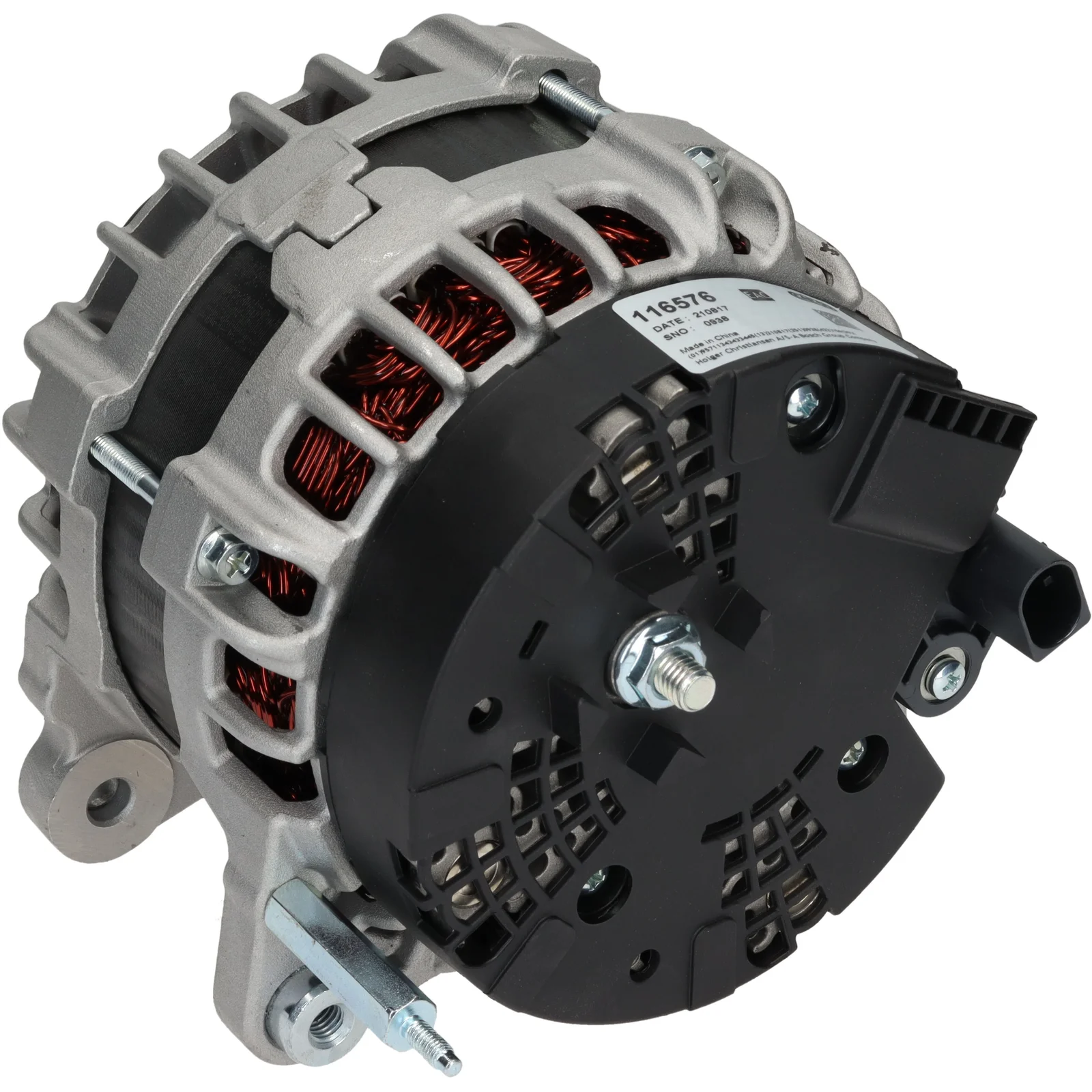

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 60.00

Description

HC-Cargo Alternator 14V-180A, 6grooves 49.6mm

Voltage: 14
Amp: 180
Pulley diameter: 40.00
Width/holder arm: 14.00
Mounting bracket diameter: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.60
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL125
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116576, 04L 903 023T, 04L903023T, 04L903023TX, 1986A01379, 1986A01510, 0125811115, 0125811116

  • Normalised article numbler
    cal10a25, f032116576, 04l903023t, 04l903023tx, 1986a01379, 1986a01510, 12090710, 0125811115, 0125811116, 305309180, 0986085980
  • Description

    HC-Cargo Alternator 14V-180A, 6grooves 49.6mm

    Voltage: 14
    Amp: 180
    Pulley diameter: 40.00
    Width/holder arm: 14.00
    Mounting bracket diameter: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.60
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL125
    Total length mm: 191.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116576, 04L 903 023T, 04L903023T, 04L903023TX, 1986A01379, 1986A01510, 0125811115, 0125811116

    • Normalised article numbler
      cal10a25, f032116576, 04l903023t, 04l903023tx, 1986a01379, 1986a01510, 12090710, 0125811115, 0125811116, 305309180, 0986085980
