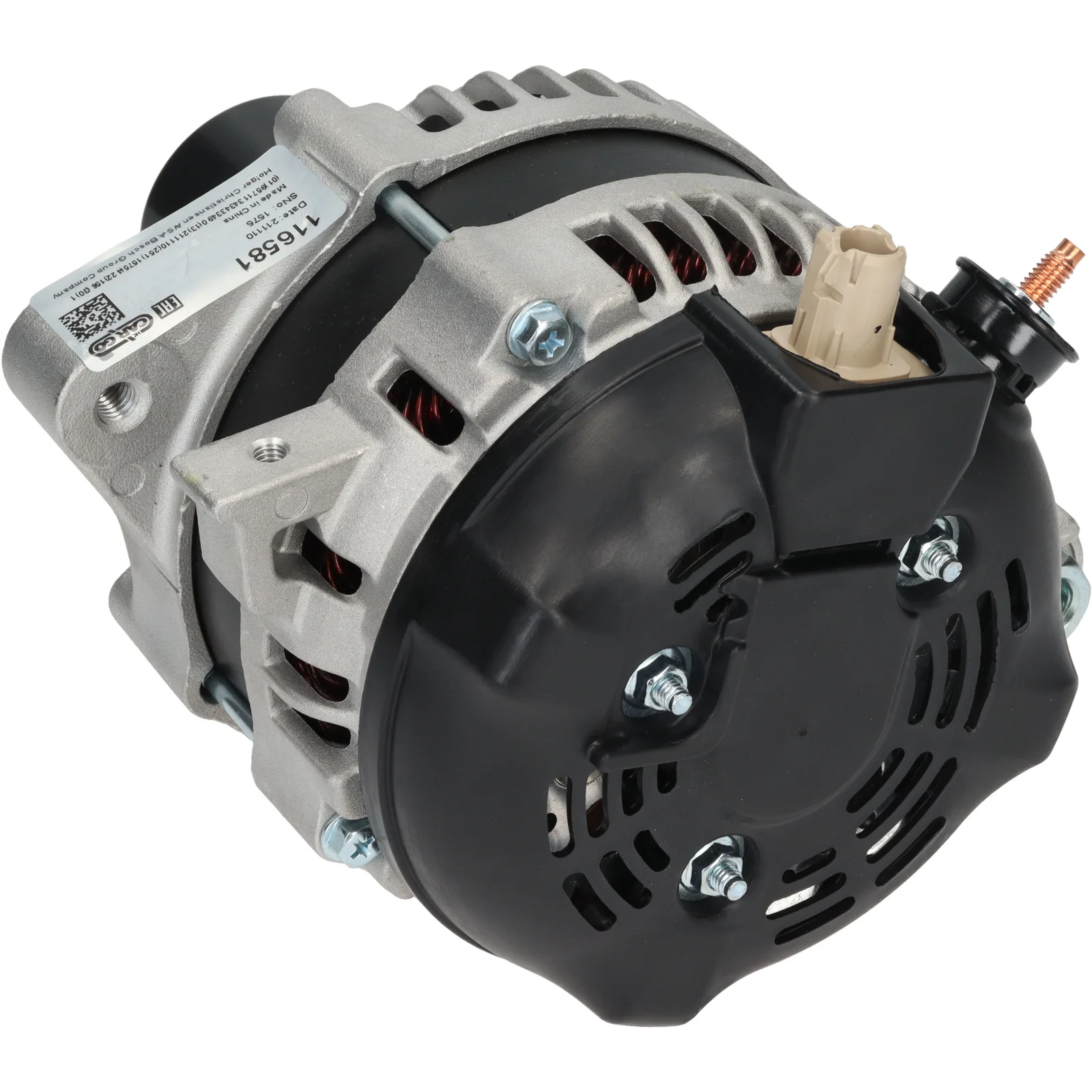

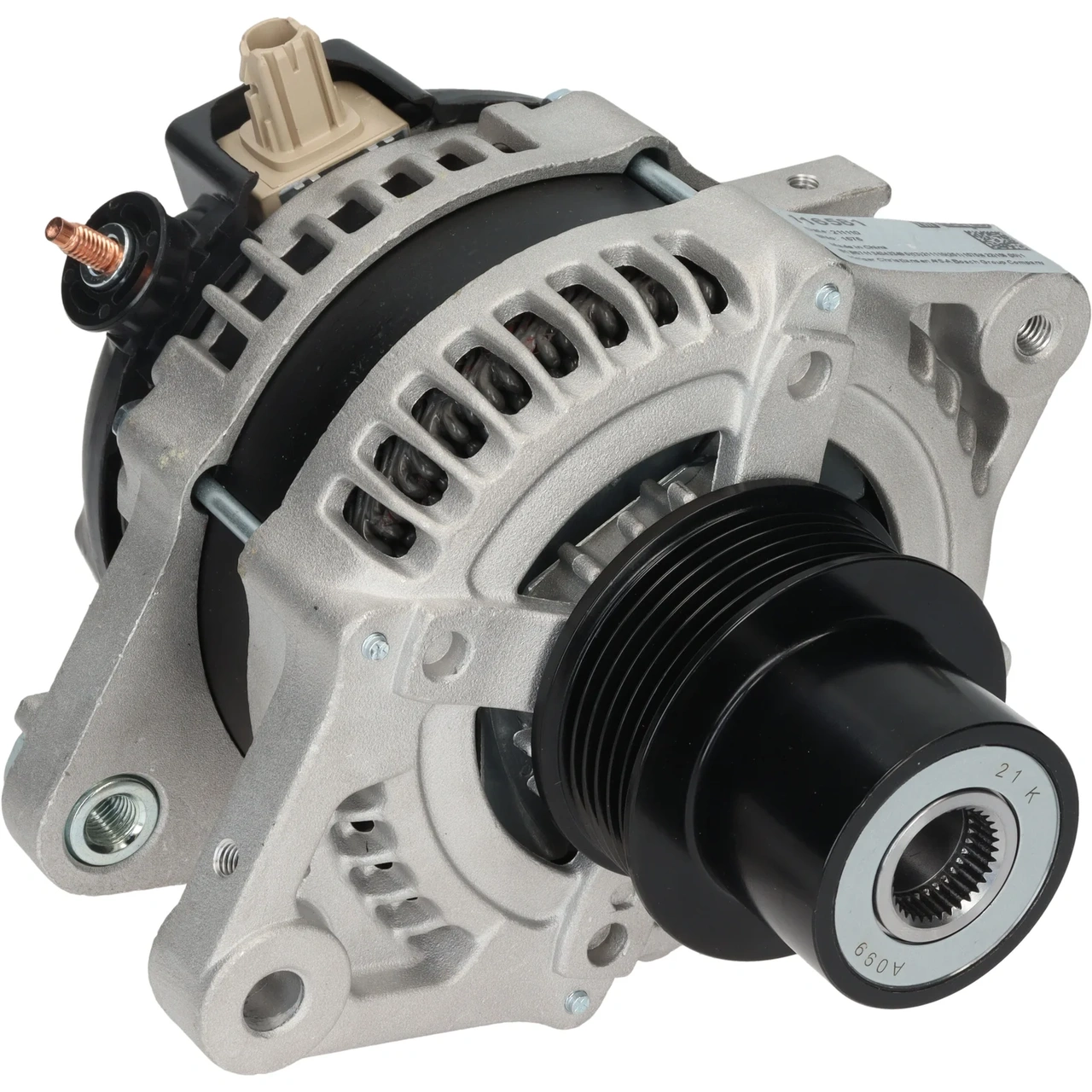

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116581

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 35.50

Description

Voltage: 14
Amp: 100
Pulley diameter: 30.20
Width/holder arm: 19.00
Mounting bracket distance: 35.50
Bracket hole: 11.00
Belt adjustment bracket hole position: 58
Belt adjustment bracket hole 1: M8
Pulley diameter: 67.50
Grooves/pulley: 6
Radius: 89.00
Radius 2: 82.50
B+: M6
Position/B+ in min.: 20
Rotation: CW
Spark plug no.: PL204
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116581, 1986A01658, 27060-0q150, 27060-0Q151, 104211-3010, 104211-3011, 104211-3012

  • Normalised article numbler
    a6683s, cal40434, dan1315, dra1093, f032116581, lra03538, 1986a01658, 210972, 210972a, 270600q150, 270600q151, 286648, 554424ri, 12061216, 0986086510, 1042113010, 1042113011, 1042113012
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 30.20
    Width/holder arm: 19.00
    Mounting bracket distance: 35.50
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 58
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 67.50
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 82.50
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Spark plug no.: PL204
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116581, 1986A01658, 27060-0q150, 27060-0Q151, 104211-3010, 104211-3011, 104211-3012

    • Normalised article numbler
      a6683s, cal40434, dan1315, dra1093, f032116581, lra03538, 1986a01658, 210972, 210972a, 270600q150, 270600q151, 286648, 554424ri, 12061216, 0986086510, 1042113010, 1042113011, 1042113012
