HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116583

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 180, Rotation: clockwise, Mounting bracket distributor: 62.00

Description

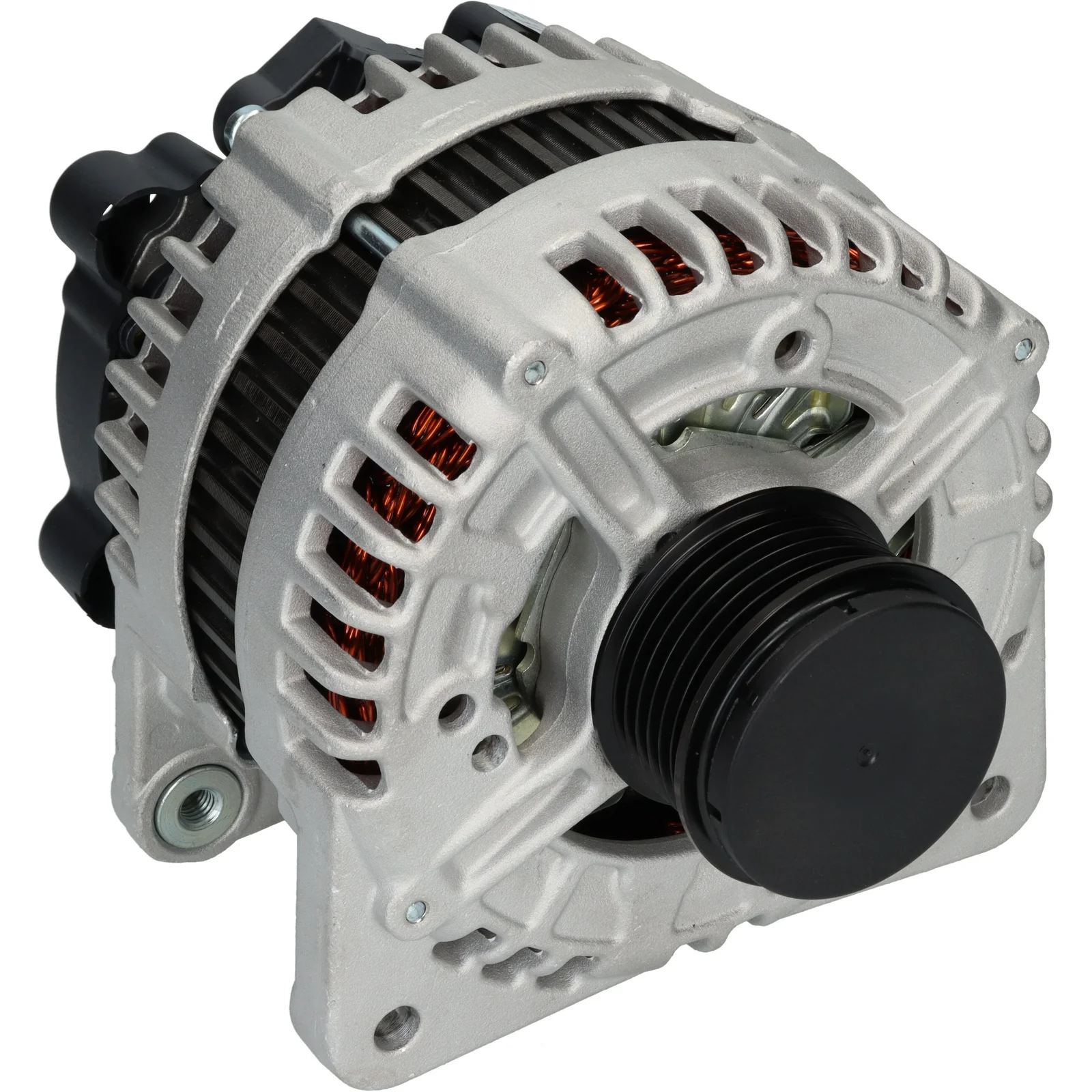

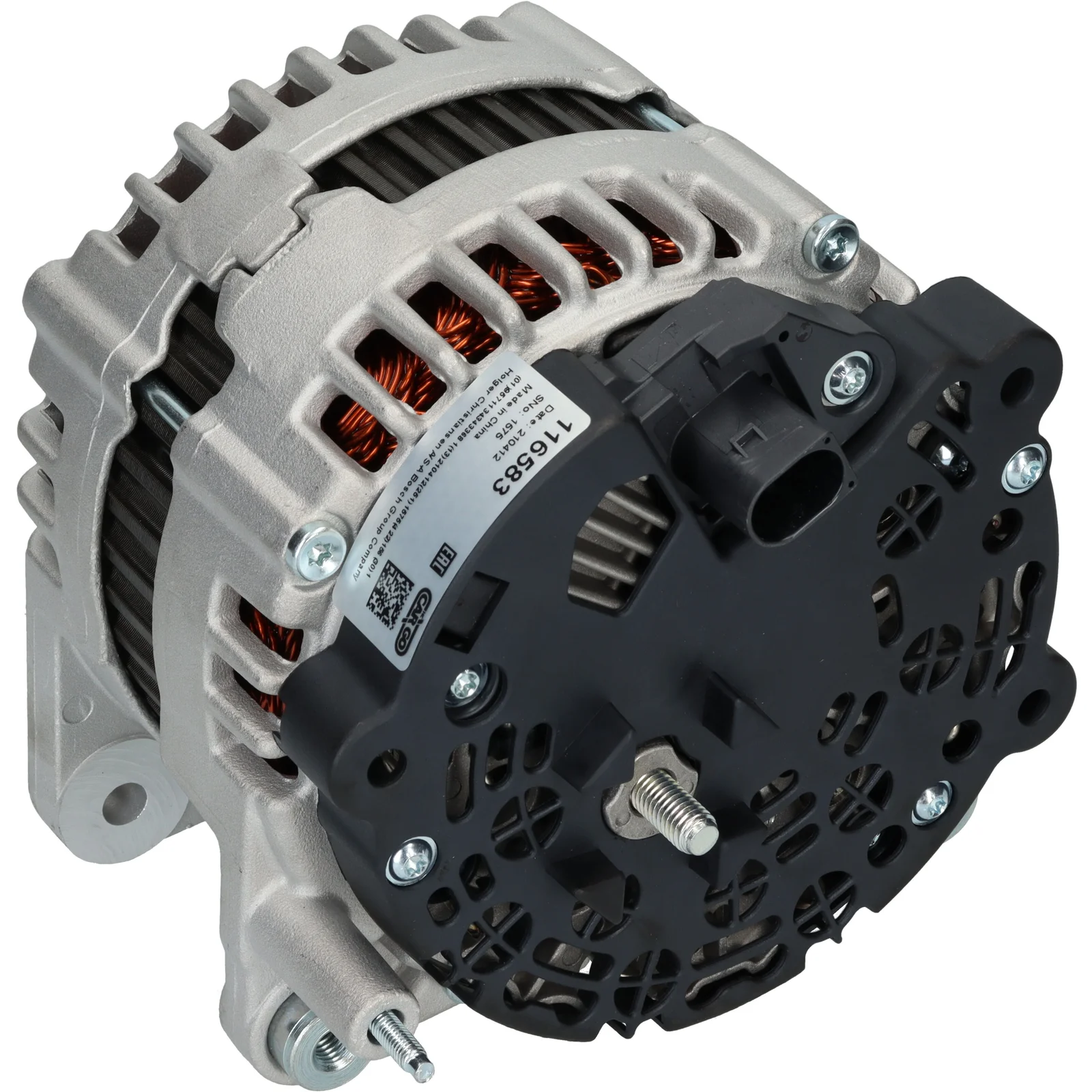

HC-Cargo Alternator 14V - 180A, 6 grooves

Voltage: 14
Amp: 180
Pulley diameter: 30.00
Width/holder arm: 14.20
Mounting bracket diameter: 62.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 35
Rotation: CW
Plug no.: PL86
Total length mm: 180.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116583, 059 903 018K, 0121 715 080, 0121 715 180, 116583, 059903018k, 059903018KX, 0121715080, 0121715180

  • Normalised article numbler
    a0409, dra0899, f032116583, lra04075, 116583, 287684, 443303, 444205, 12090905, 059903018k, 059903018kx, 0121715080, 0121715180, 205579180
  • Description
    HC-Cargo Alternator 14V - 180A, 6 grooves

    Voltage: 14
    Amp: 180
    Pulley diameter: 30.00
    Width/holder arm: 14.20
    Mounting bracket diameter: 62.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 35
    Rotation: CW
    Plug no.: PL86
    Total length mm: 180.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116583, 059 903 018K, 0121 715 080, 0121 715 180, 116583, 059903018k, 059903018KX, 0121715080, 0121715180

    • Normalised article numbler
      a0409, dra0899, f032116583, lra04075, 116583, 287684, 443303, 444205, 12090905, 059903018k, 059903018kx, 0121715080, 0121715180, 205579180
