HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116591

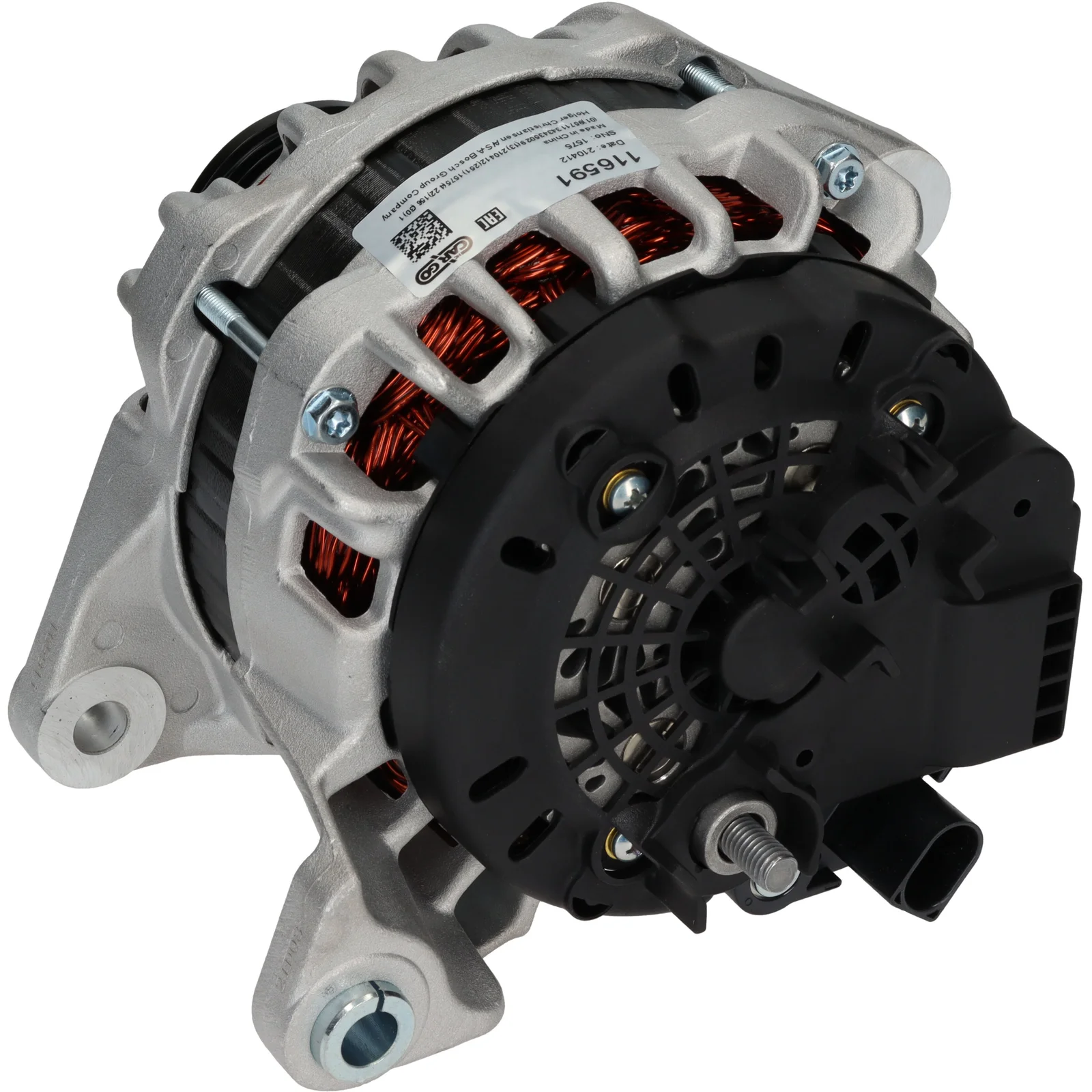

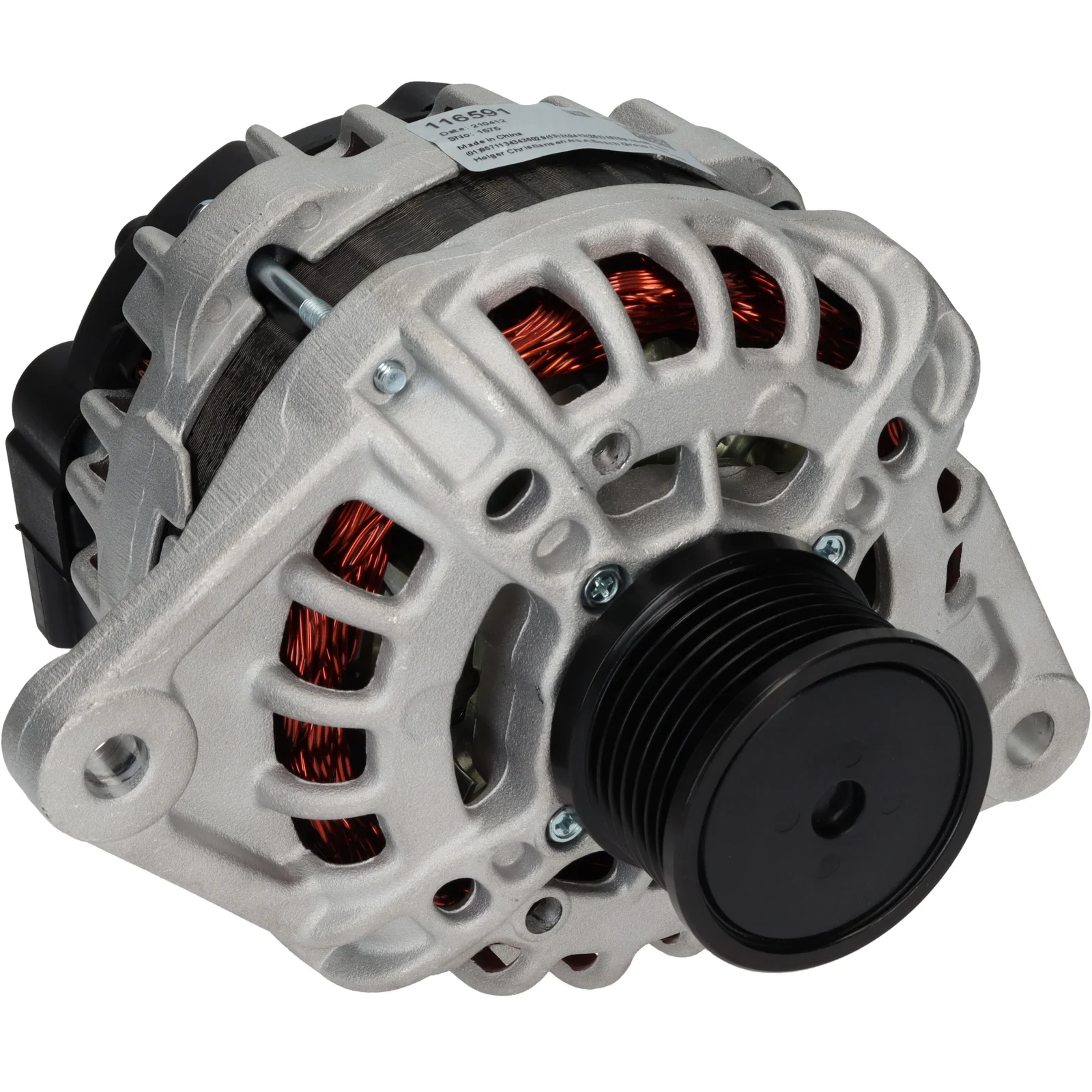

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Mounting bracket distance: 83.50, Pulley diameter: 55.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 41.50
Width/holder arm: 14.00
Mount. bracket dist.: 83.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 56
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 94.00
Radius 2: 95.50
B+: M8
Position/B+ in min.: 22
Plug no.: PL174
Total length mm: 184.00
Terminal type: COM
ID Code: 24
Communication: LIN
Alternator: SP/FW
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

  • Normalised article numbler
    a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 41.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 83.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 56
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 94.00
    Radius 2: 95.50
    B+: M8
    Position/B+ in min.: 22
    Plug no.: PL174
    Total length mm: 184.00
    Terminal type: COM
    ID Code: 24
    Communication: LIN
    Alternator: SP/FW
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL07CE, F000BL07CF, F032116591, 1986A01521, 5802217842

    • Normalised article numbler
      a0826s, cal10024, f000bl07ce, f000bl07cf, f032116591, lra04476, 1986a01521, 288585, 443396, 444279, 554856rib, 12090984, 32446540, 505906150, 5802217842
