HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116610

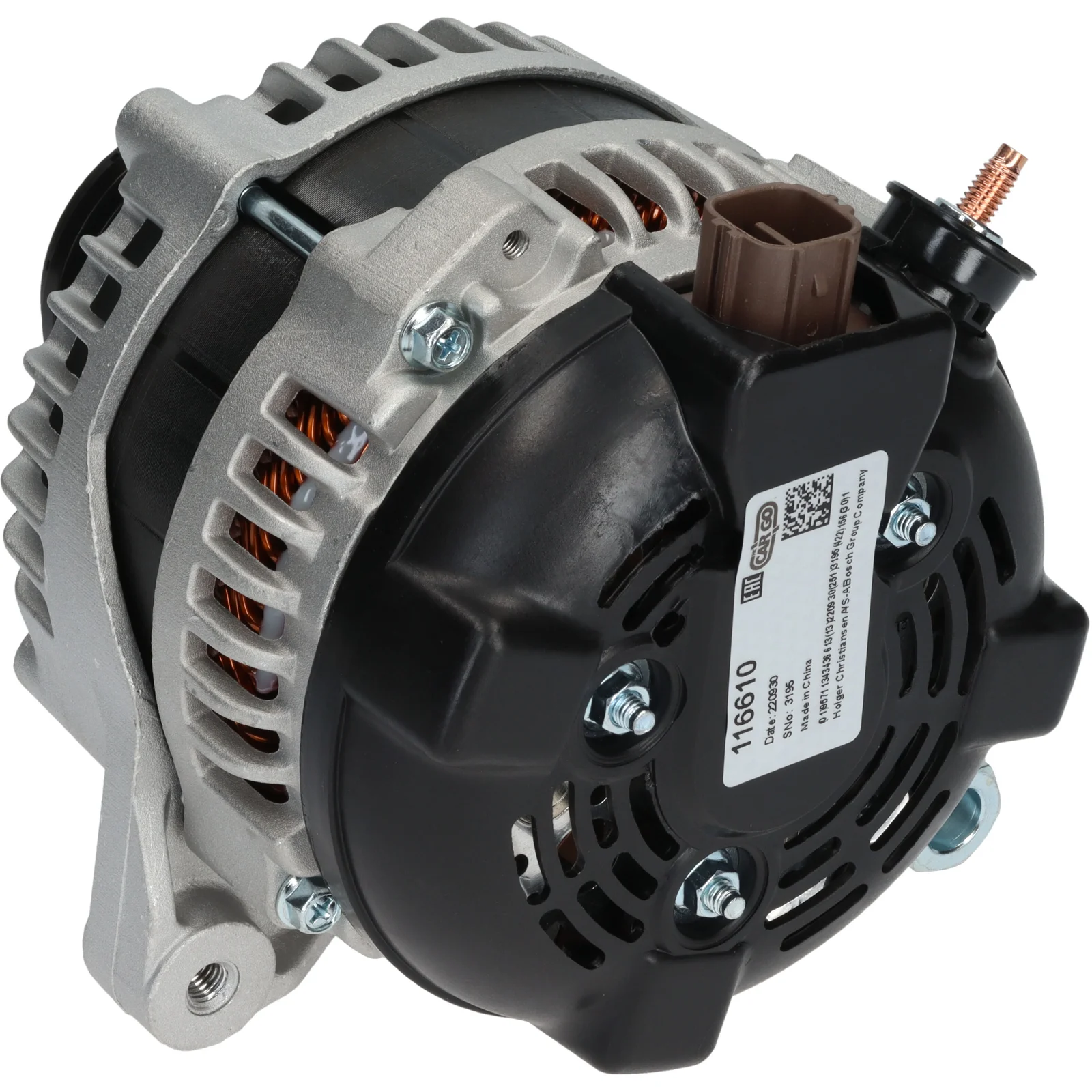

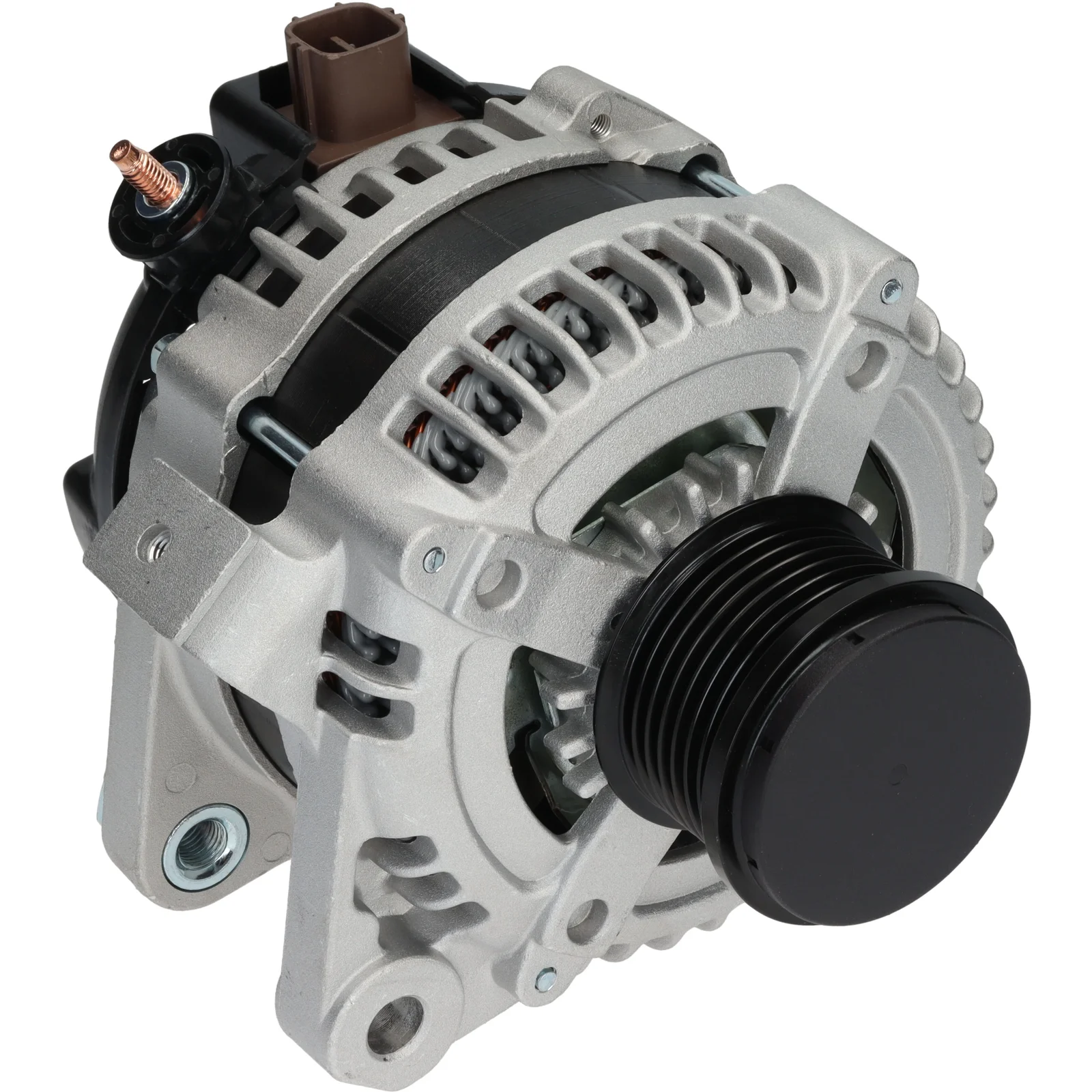

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 45.50

Description

Voltage: 14
Amp: 100
Pulley dist.: 36.00
Width/holder arm: 18.00
Mount. bracket dist.: 45.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 14
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL146
Total length mm: 172.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116610, 1986A01463, 27060-28300, 27060-28301, 27060-28311, 104210-4790, 104210-4791, 104210-4795

  • Normalised article numbler
    a6316, cal40381, f032116610, lra04217, 1986a01463, 287826, 553965ri, 12060896, 195955100, 1042104790, 1042104791, 1042104795, 2706028300, 2706028301, 2706028311
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 36.00
    Width/holder arm: 18.00
    Mount. bracket dist.: 45.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 14
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL146
    Total length mm: 172.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116610, 1986A01463, 27060-28300, 27060-28301, 27060-28311, 104210-4790, 104210-4791, 104210-4795

    • Normalised article numbler
      a6316, cal40381, f032116610, lra04217, 1986a01463, 287826, 553965ri, 12060896, 195955100, 1042104790, 1042104791, 1042104795, 2706028300, 2706028301, 2706028311
