HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116614

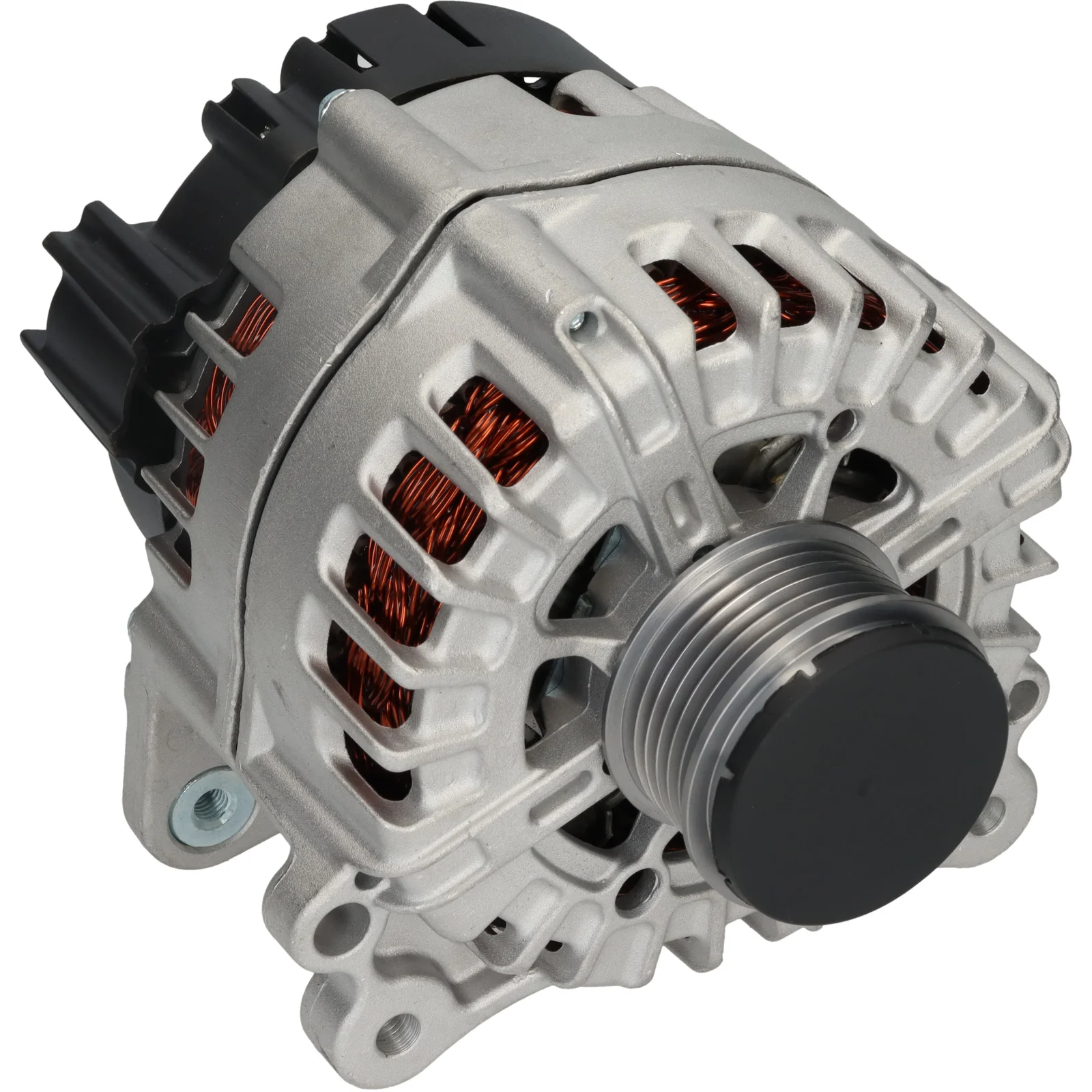

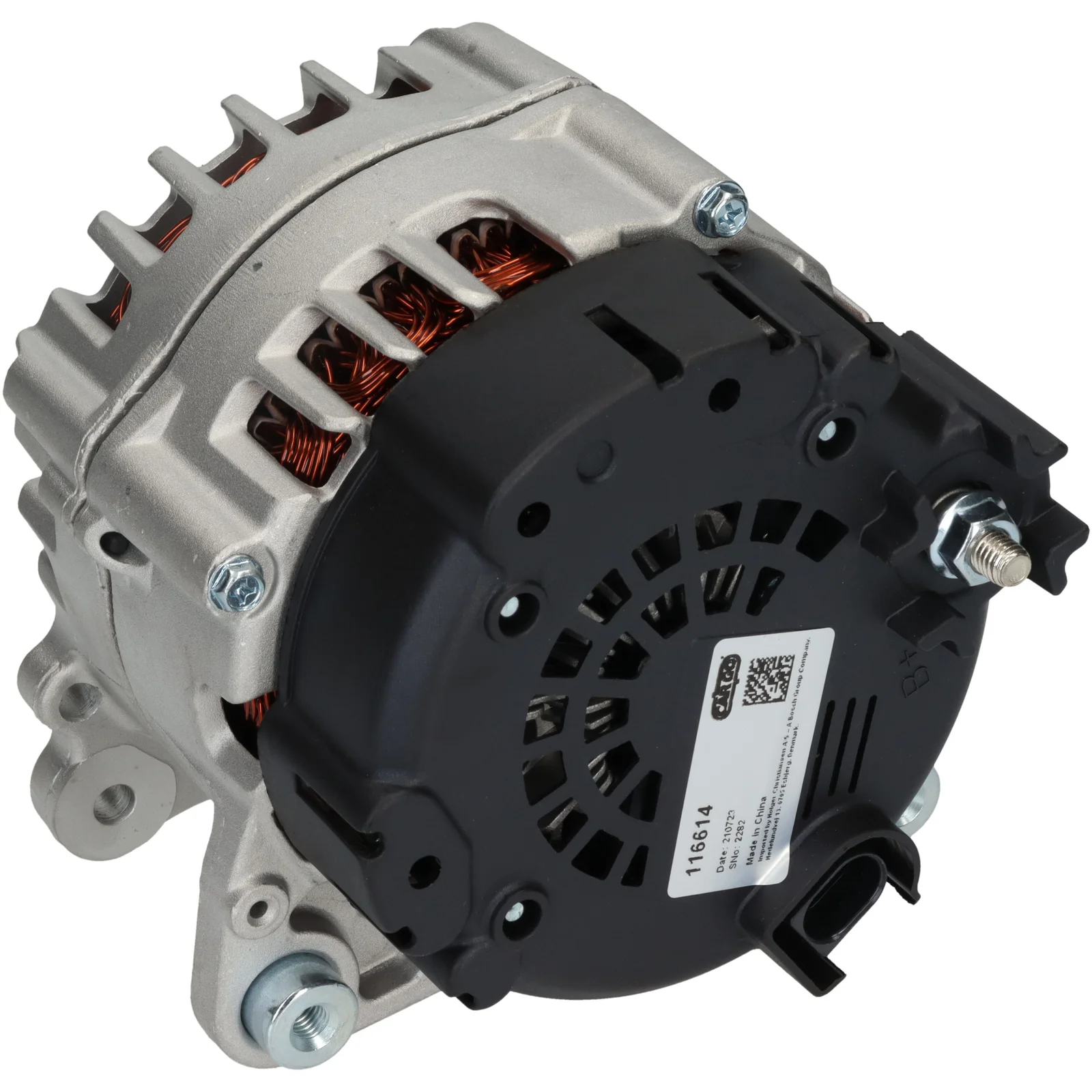

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 200, Rotation: CW, Mount. bracket dist.: 60.60

Description

Voltage: 14
Amp: 200
Pulley dist.: 30.50
Width/holder arm: 14.00
Mount. bracket dist.: 60.60
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL125
Total length mm: 188.00
Terminal type: COM
ID Code: 41
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116614, FG20S011, FGN20S011, 2608773A, 059903018T, 59903018QX

  • Normalised article numbler
    a3493s, a3510s, cal15396, cal20234, dra0672, dra1164, f032116614, fg20s011, fgn20s011, lra03434, 113449, 286546, 439781, 440413, 553576ri, 553576riv, 2608773a, 9090814, 059903018t, 59903018qx, 205546200, 205546200500
  • Description
    Voltage: 14
    Amp: 200
    Pulley dist.: 30.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.60
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL125
    Total length mm: 188.00
    Terminal type: COM
    ID Code: 41
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116614, FG20S011, FGN20S011, 2608773A, 059903018T, 59903018QX

    • Normalised article numbler
      a3493s, a3510s, cal15396, cal20234, dra0672, dra1164, f032116614, fg20s011, fgn20s011, lra03434, 113449, 286546, 439781, 440413, 553576ri, 553576riv, 2608773a, 9090814, 059903018t, 59903018qx, 205546200, 205546200500
