HC-Cargo Alternator

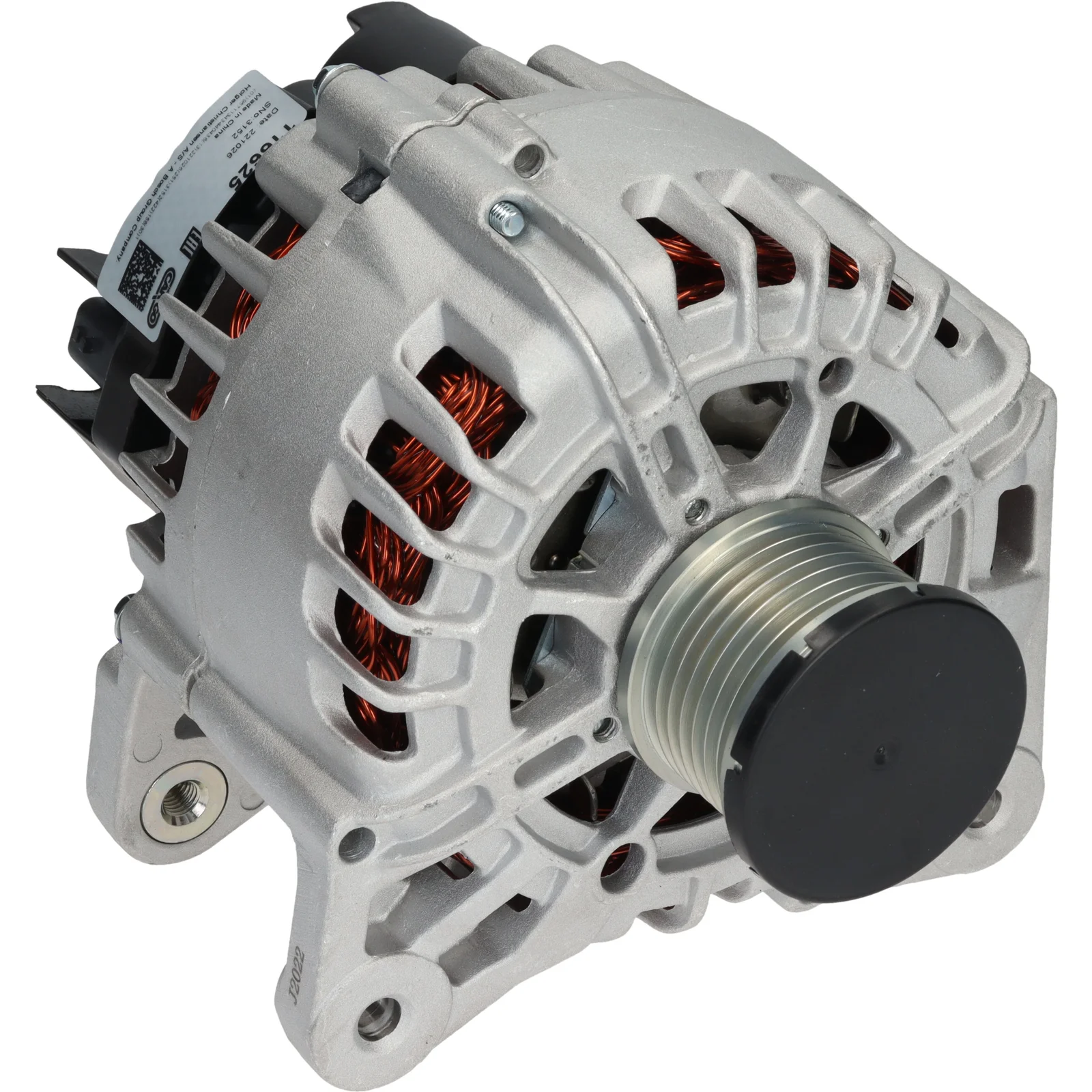

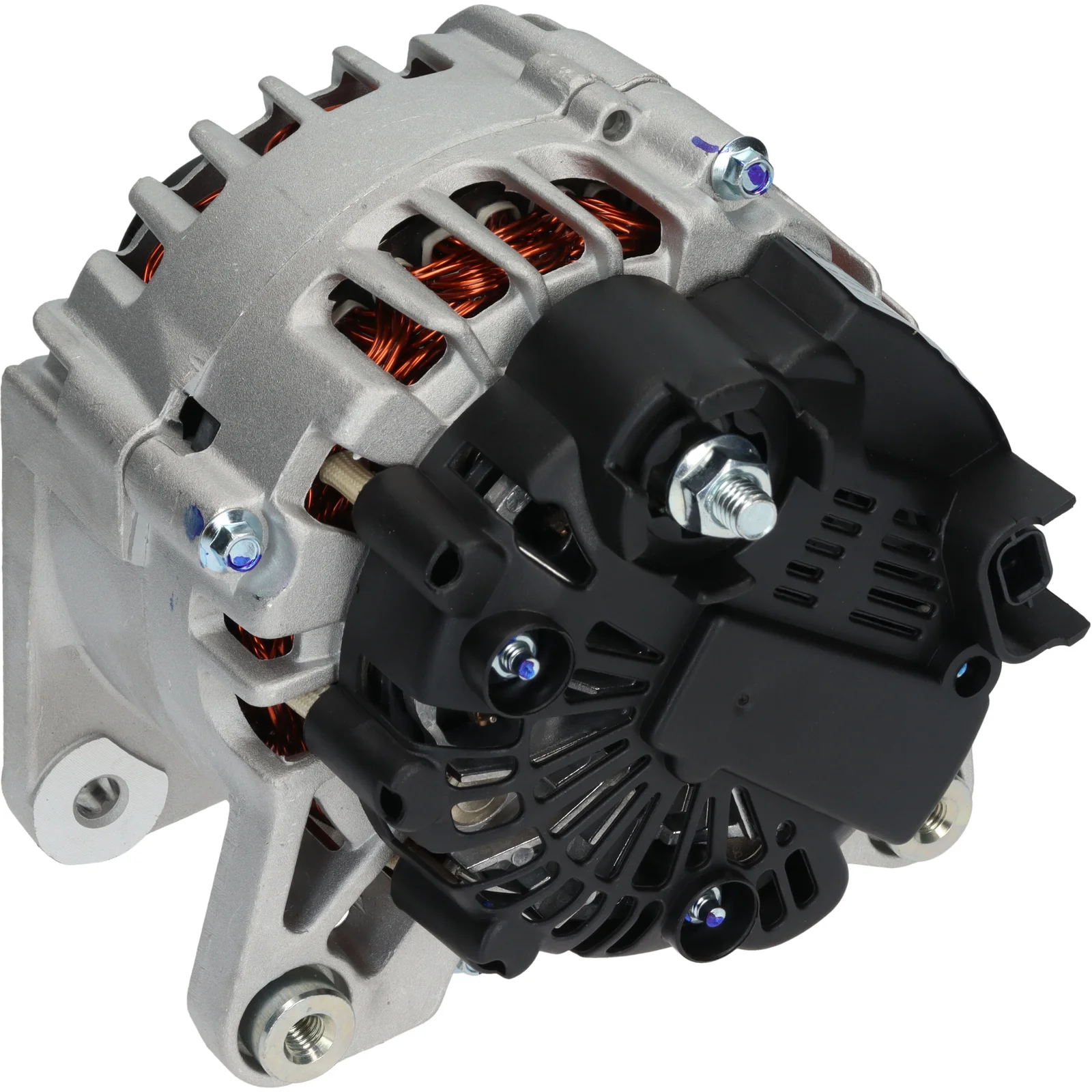

HC-Cargo Alternator
Article no.: F032116625

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 14V - 150A, 7-grinding disc, (LIN) 48.5mm Voltage: 14 Current: 150 Pulley distance: 32.50 Width/holder arm: 14.00 Mounting bracket distance: 61.00 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 48.50 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 53 Rotation: CW Plug number: PL131 Total length mm: 195.00 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000 BL0 814, F000 BL0 841, F032116225, F032116625, FG15T071, 90-480-8633, 23100-4BE0A, 23100-4BE0B, 23100-8633R, 116225, 1202452, 2616927A, 4407989, 93868641, 95519888, 231008633R

  • Normalised article numbler
    a0590s, cal15017, f000bl0814, f000bl0841, f032116225, f032116625, fg15t071, 116225, 200282, 231004be0a, 231004be0b, 287535, 439923, 440663, 554287ri, 1202452, 2616927a, 4407989, 93868641, 95519888, 165902150, 231008633r, 904808633, 0986085850
  • Description
    HC-Cargo Alternator 14V - 150A, 7-grinding disc, (LIN) 48.5mm Voltage: 14 Current: 150 Pulley distance: 32.50 Width/holder arm: 14.00 Mounting bracket distance: 61.00 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 48.50 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 53 Rotation: CW Plug number: PL131 Total length mm: 195.00 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000 BL0 814, F000 BL0 841, F032116225, F032116625, FG15T071, 90-480-8633, 23100-4BE0A, 23100-4BE0B, 23100-8633R, 116225, 1202452, 2616927A, 4407989, 93868641, 95519888, 231008633R

    • Normalised article numbler
      a0590s, cal15017, f000bl0814, f000bl0841, f032116225, f032116625, fg15t071, 116225, 200282, 231004be0a, 231004be0b, 287535, 439923, 440663, 554287ri, 1202452, 2616927a, 4407989, 93868641, 95519888, 165902150, 231008633r, 904808633, 0986085850
