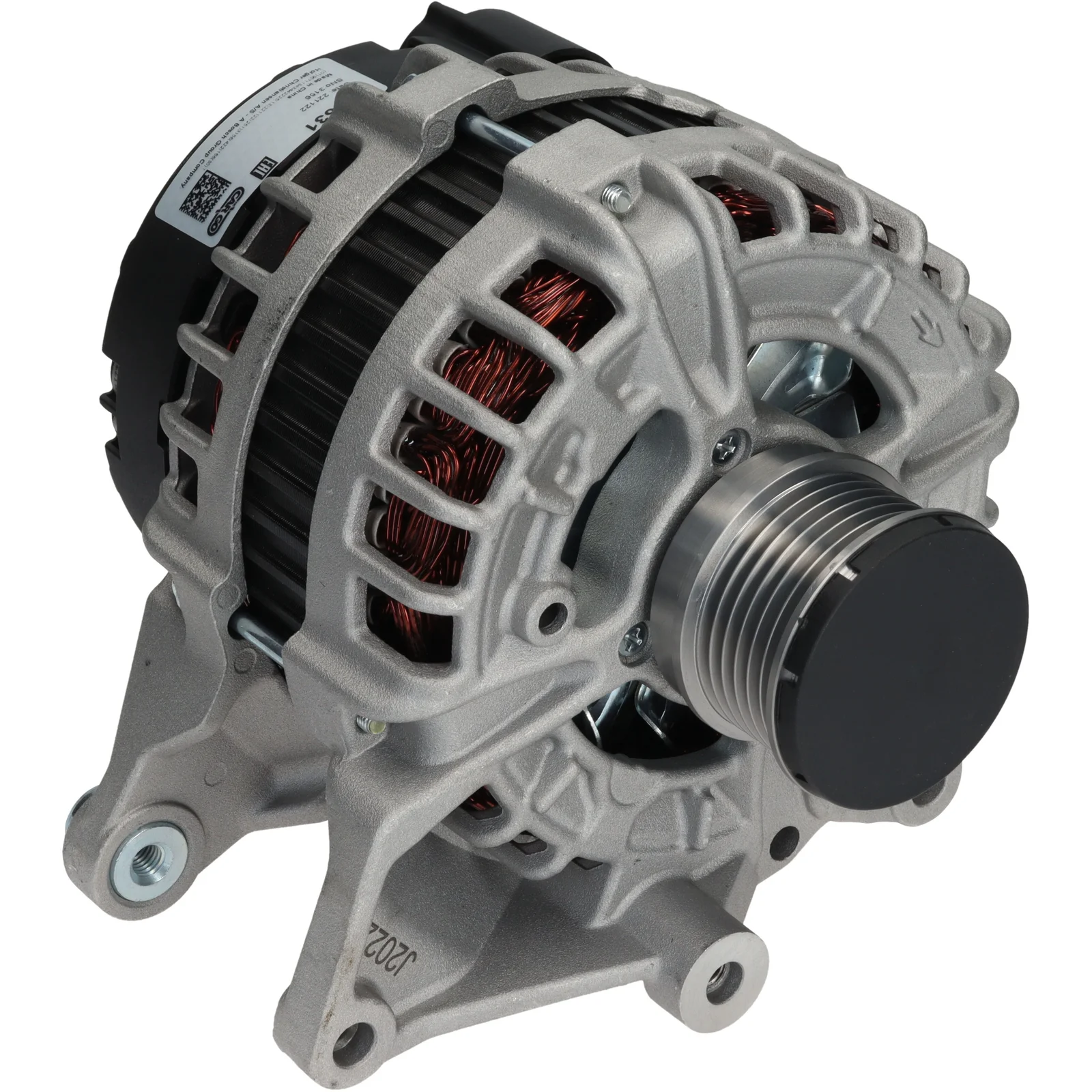

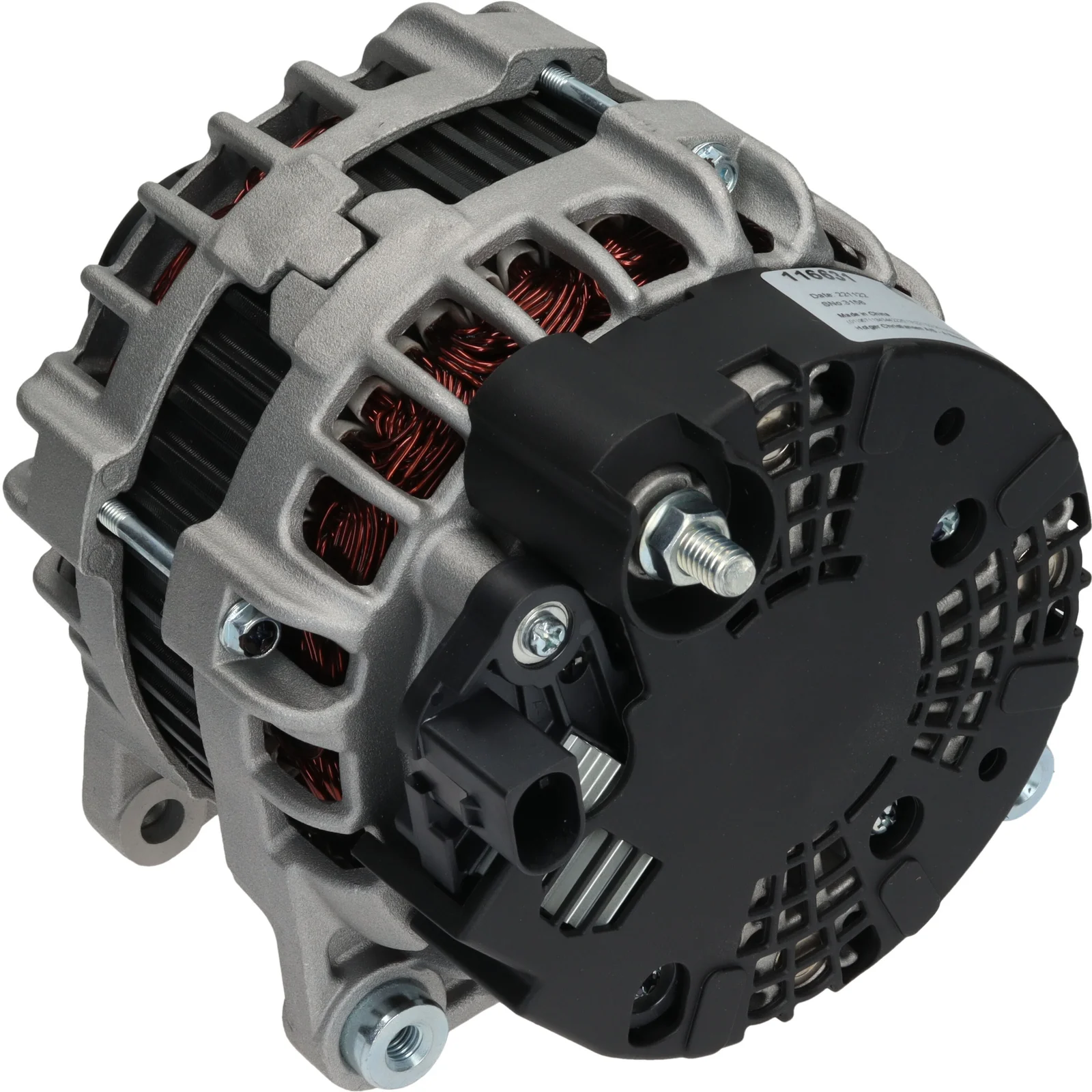

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116631

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 175, Rotation: CW, Mount. bracket dist.: 60.00

Description

Voltage: 14
Amp: 175
Pulley dist.: 32.50
Width/holder arm: 14.00
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Bracket hole 2: M8
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 53.00
Grooves/pulley: 6
Radius: 86.60
Radius 2: 115.40
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL125
Total length mm: 197.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0009060922, A0009060922kZ, A0009061503, A0009064702, F032116631, 1986A01045, 0009060922, 0009061503, 0009064702, 0125711099, 0125711100, 0125711119, 0125711120, 0125711121, 0125711122

  • Normalised article numbler
    a0009060922, a0009060922kz, a0009061503, a0009064702, a0530s, cal10534, f032116631, 8el011713991, 8el015630831, 1986a01045, 209257, 209257a, 286942, 443375, 444299, 554289ri, 554289rib, 0009060922, 0009061503, 0009064702, 12090723, 32711099, 0125711099, 0125711100, 0125711119, 0125711120, 0125711121, 0125711122, 555929175, 555930175, 0986081850, 0986081853, 0986081857
  • Description
    Voltage: 14
    Amp: 175
    Pulley dist.: 32.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.00
    Bracket hole: 8.50
    Bracket hole 2: M8
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 53.00
    Grooves/pulley: 6
    Radius: 86.60
    Radius 2: 115.40
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL125
    Total length mm: 197.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0009060922, A0009060922kZ, A0009061503, A0009064702, F032116631, 1986A01045, 0009060922, 0009061503, 0009064702, 0125711099, 0125711100, 0125711119, 0125711120, 0125711121, 0125711122

    • Normalised article numbler
      a0009060922, a0009060922kz, a0009061503, a0009064702, a0530s, cal10534, f032116631, 8el011713991, 8el015630831, 1986a01045, 209257, 209257a, 286942, 443375, 444299, 554289ri, 554289rib, 0009060922, 0009061503, 0009064702, 12090723, 32711099, 0125711099, 0125711100, 0125711119, 0125711120, 0125711121, 0125711122, 555929175, 555930175, 0986081850, 0986081853, 0986081857
