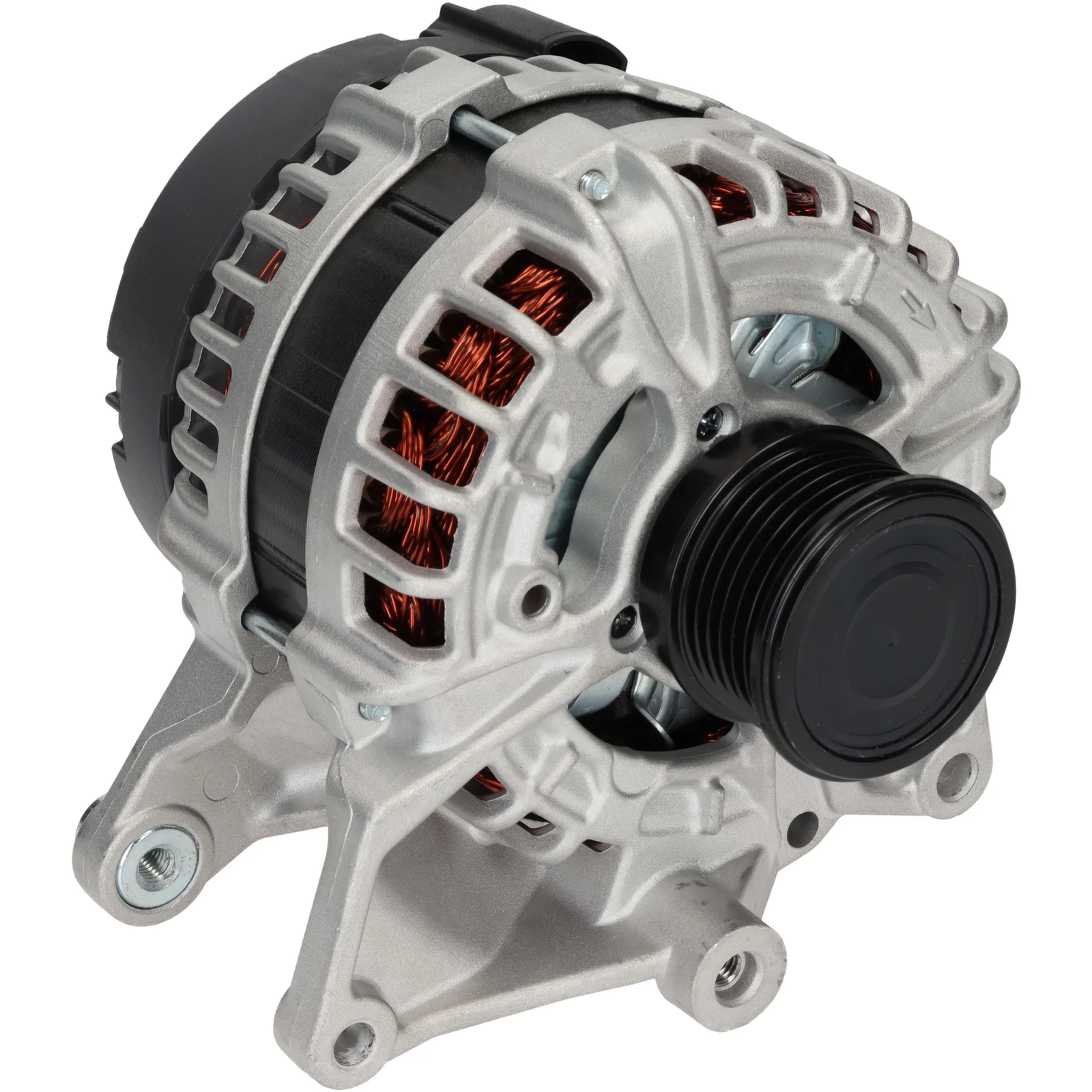

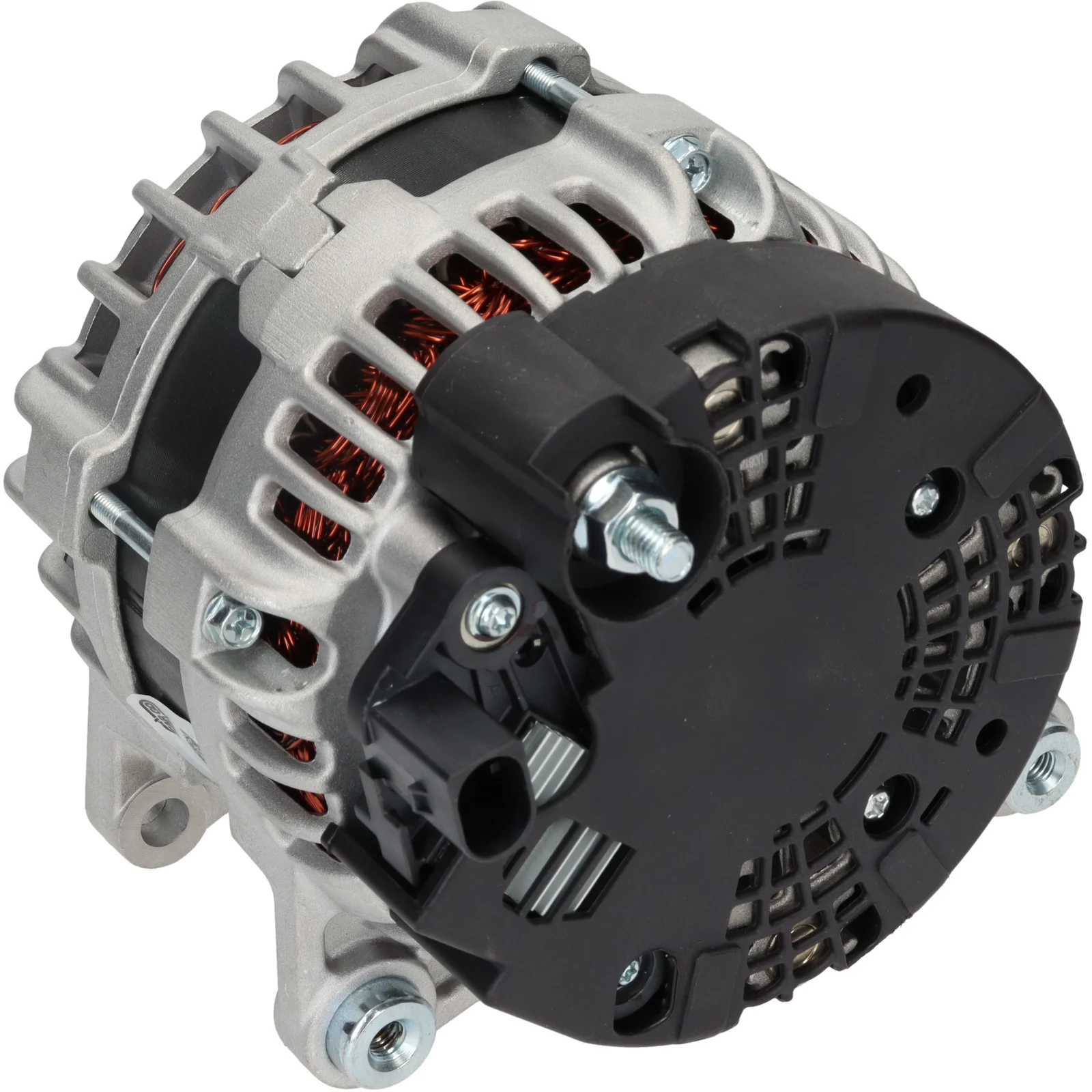

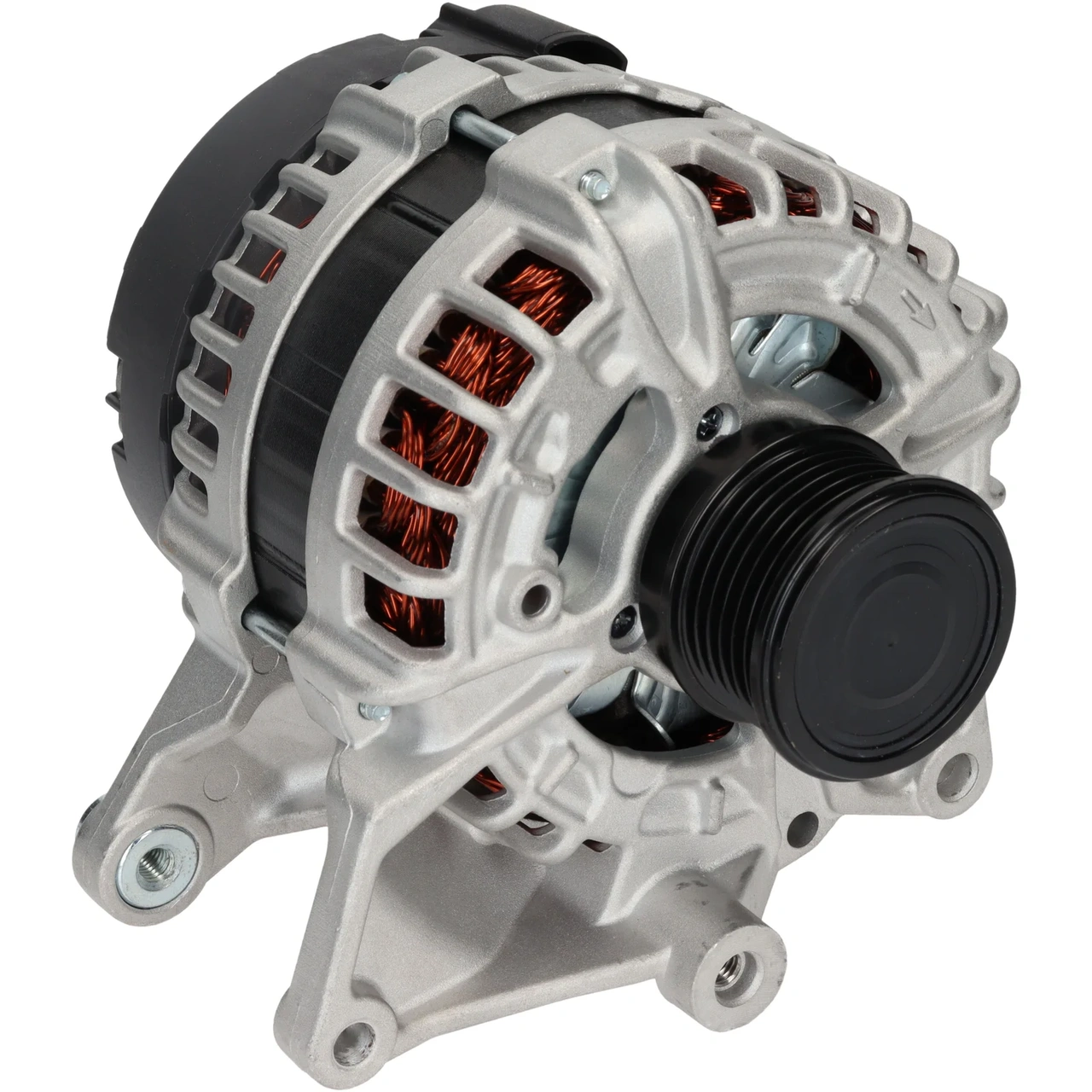

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116632

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 150, Rotation: CW, Mounting bracket distance: 60.00

Description

Voltage: 14
Amp: 150
Pulley: Dis. 32.50
Width/holder arm: 14.00
Mounting bracket distance: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 52.50
Grooves/pulley: 6
Radius: 115.00
Radius 2: 86.50
B+: M8
Position/B+ in min.: 47
Rotation: CW
Plug no.: PL125
Total length mm: 191.00
Terminal type: COM
ID Code: 24
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0009061822, A0009062003, A00090620030080, A000906200380, F032116632, 23100-4HH3ACI, 23100-4HH3AEM, 0009061822, 0009062003, 0009065501, 0125711032, 0125711080, 000906200380, 00090620030080

  • Normalised article numbler
    a0009061822, a0009062003, a00090620030080, a000906200380, a0536s, cal10008, dra1383, dra1389, f032116632, 231004hh3aci, 231004hh3aem, 286950, 440930, 443278, 554435ri, 0009061822, 0009062003, 0009065501, 12090534, 12090704, 32081730, 32711113, 0125711032, 0125711080, 555942150, 000906200380, 0986081730, 0986081733, 00090620030080
  • Description
    Voltage: 14
    Amp: 150
    Pulley: Dis. 32.50
    Width/holder arm: 14.00
    Mounting bracket distance: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 52.50
    Grooves/pulley: 6
    Radius: 115.00
    Radius 2: 86.50
    B+: M8
    Position/B+ in min.: 47
    Rotation: CW
    Plug no.: PL125
    Total length mm: 191.00
    Terminal type: COM
    ID Code: 24
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0009061822, A0009062003, A00090620030080, A000906200380, F032116632, 23100-4HH3ACI, 23100-4HH3AEM, 0009061822, 0009062003, 0009065501, 0125711032, 0125711080, 000906200380, 00090620030080

    • Normalised article numbler
      a0009061822, a0009062003, a00090620030080, a000906200380, a0536s, cal10008, dra1383, dra1389, f032116632, 231004hh3aci, 231004hh3aem, 286950, 440930, 443278, 554435ri, 0009061822, 0009062003, 0009065501, 12090534, 12090704, 32081730, 32711113, 0125711032, 0125711080, 555942150, 000906200380, 0986081730, 0986081733, 00090620030080
