HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116647

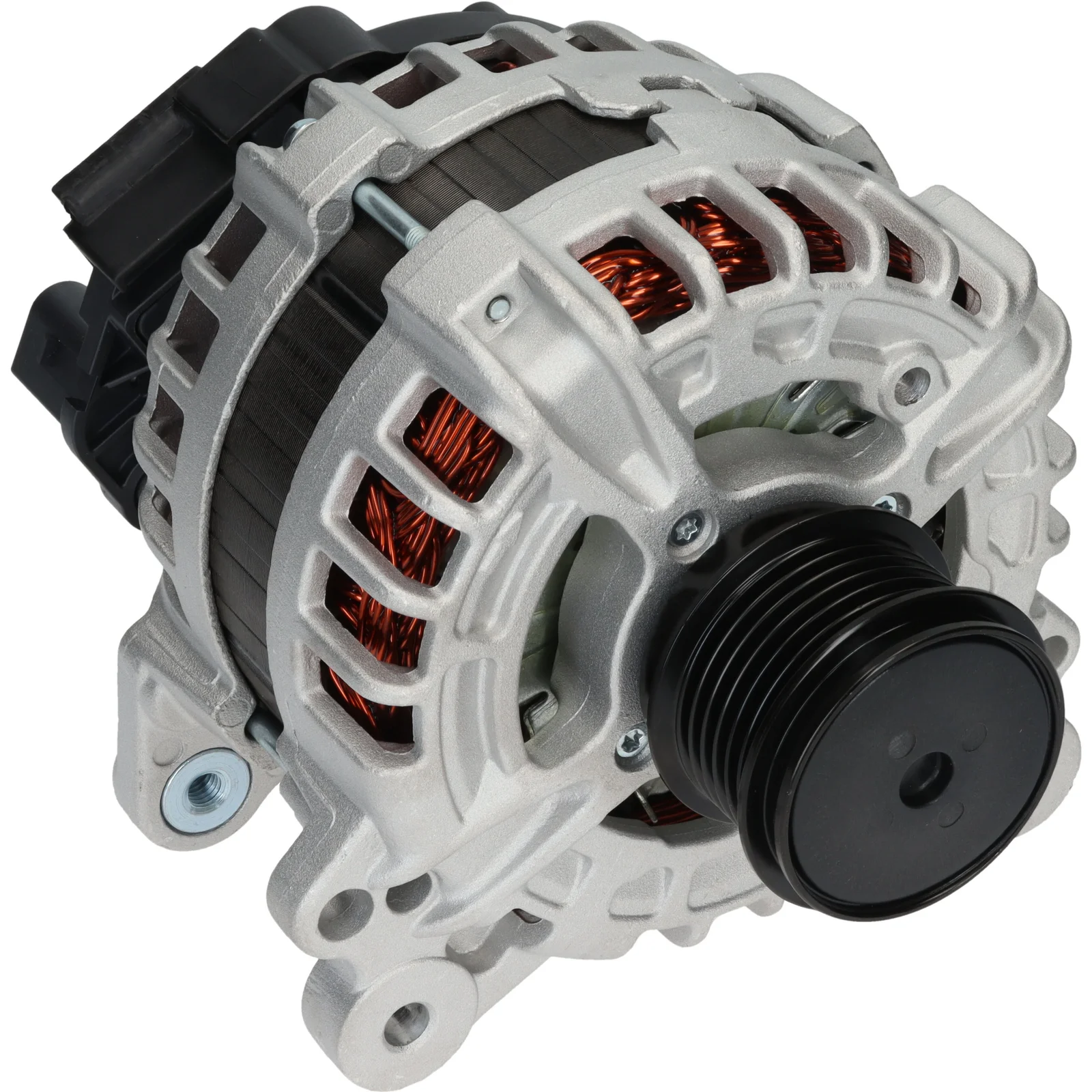

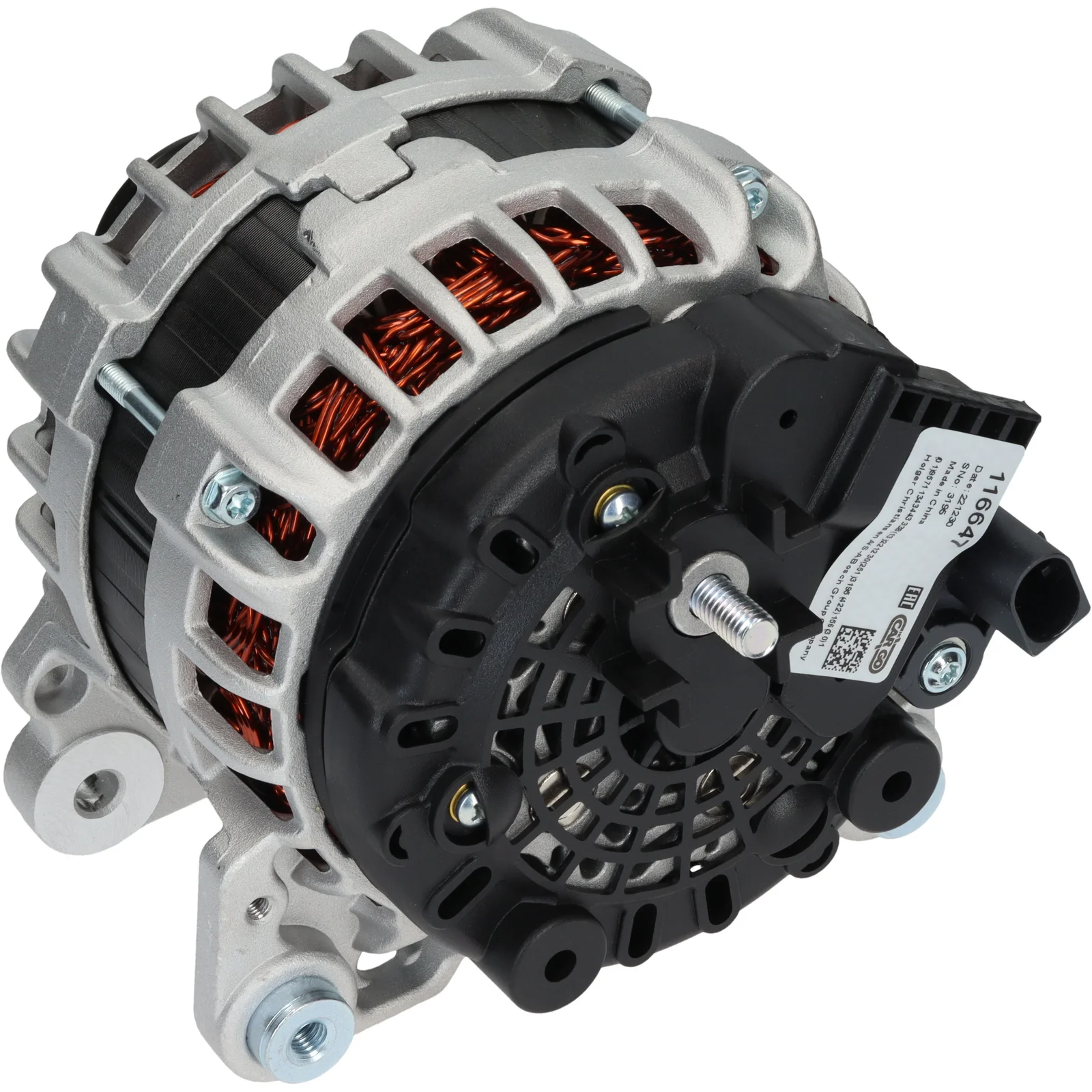

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Mounting bracket distance: 62.00

Description

Voltage: 14
Amp: 140
Pulley: Pulley
dist.: 39.60
Width/holder arm: 14.00
Mounting bracket distance: 62.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL181
Total length mm: 193.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL08M7, F000BL08M8, F032116647, 04L903024T, 04L903024TX, 1986A01371

  • Normalised article numbler
    f000bl08m7, f000bl08m8, f032116647, 04l903024t, 04l903024tx, 1986a01371, 443391, 444274, 0986086210
  • Description
    Voltage: 14
    Amp: 140
    Pulley: Pulley
    dist.: 39.60
    Width/holder arm: 14.00
    Mounting bracket distance: 62.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL181
    Total length mm: 193.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL08M7, F000BL08M8, F032116647, 04L903024T, 04L903024TX, 1986A01371

    • Normalised article numbler
      f000bl08m7, f000bl08m8, f032116647, 04l903024t, 04l903024tx, 1986a01371, 443391, 444274, 0986086210
