HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116649

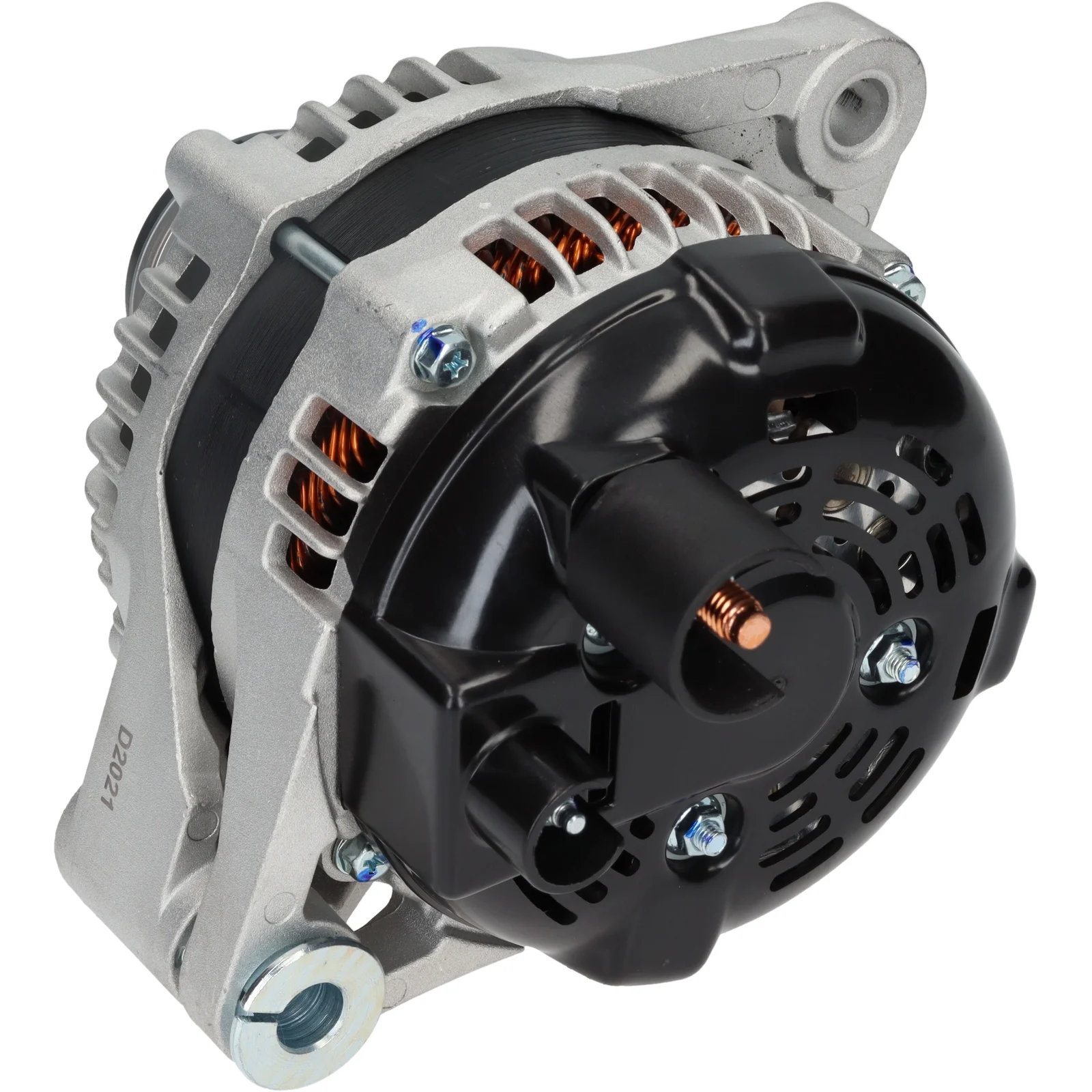

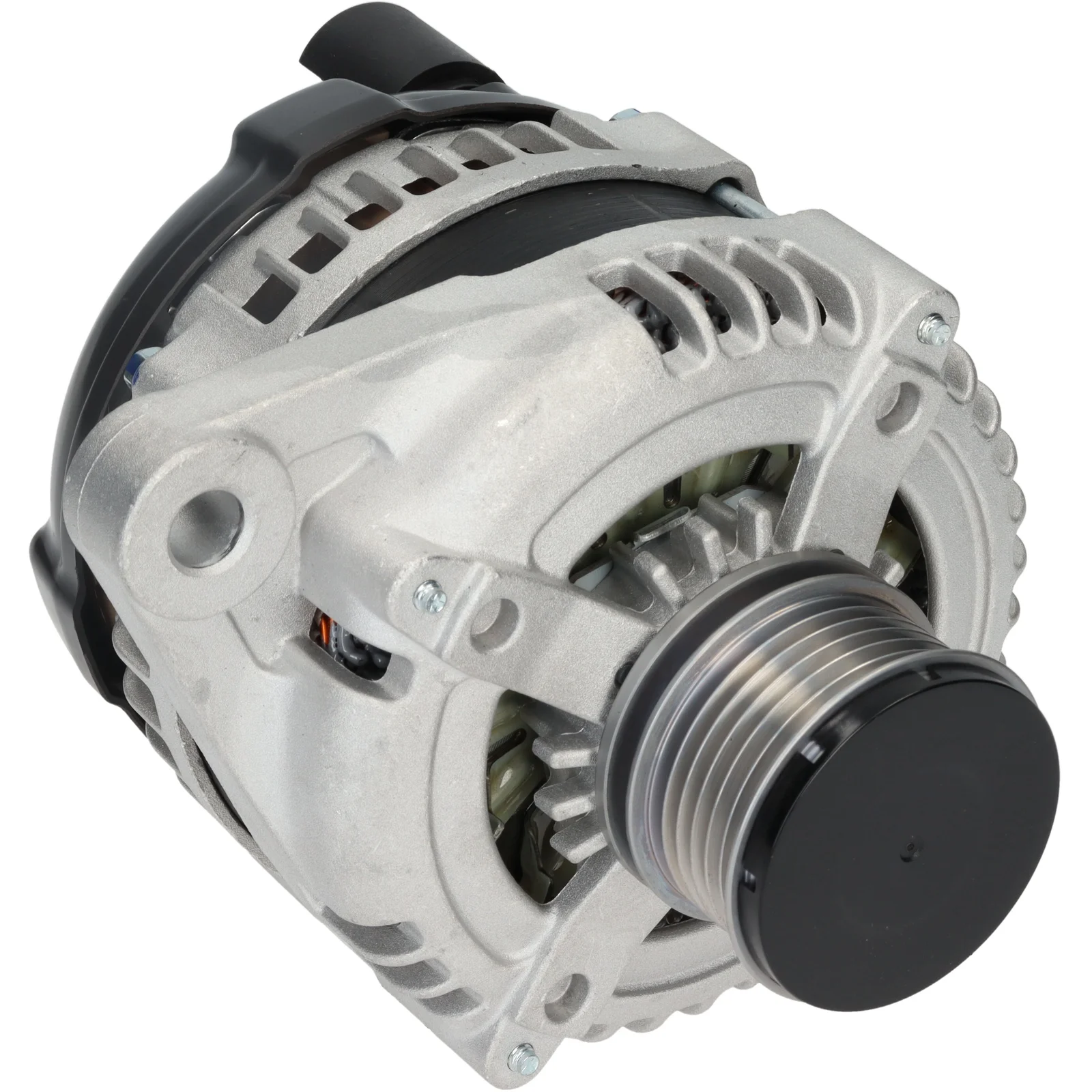

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Pulley diameter: 53.80

Description

Voltage: 14
Amp: 150
Pulley dist.: 51.50
Bracket hole: 12.30
Belt. adj. bracket hole pos.: 59
Belt. adj. bracket hole 1: 12.30
Pulley diameter: 53.80
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 44
D+ Size: M5
Rotation: CW
Total length millimeters: 200.00
Alternator: SP/FW
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    A6472(DENSO), A6472S, A6563S, A6674S, CAL40402, dan1123, DAN1123, dra1395, DRA1395, F032116649, 28-7515, 218.323.1502, 505.586.150, 1986A01821, 104210-1200, 104211-8530, 210935, 210935A, 553967RI, 849251, 1202273, 1202453, 1203273, 12090981, 32083920, 51808561, 51863675, 51943777, 52003623, 52021968, 95511969, 95519889, 95520425

  • Normalised article numbler
    a6472denso, a6472s, a6563s, a6674s, cal40402, dan1123, dra1395, f032116649, 1986a01821, 210935, 210935a, 287515, 553967ri, 849251, 1202273, 1202453, 1203273, 12090981, 32083920, 51808561, 51863675, 51943777, 52003623, 52021968, 95511969, 95519889, 95520425, 505586150, 1042101200, 1042118530, 2183231502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 51.50
    Bracket hole: 12.30
    Belt. adj. bracket hole pos.: 59
    Belt. adj. bracket hole 1: 12.30
    Pulley diameter: 53.80
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 44
    D+ Size: M5
    Rotation: CW
    Total length millimeters: 200.00
    Alternator: SP/FW
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A6472(DENSO), A6472S, A6563S, A6674S, CAL40402, dan1123, DAN1123, dra1395, DRA1395, F032116649, 28-7515, 218.323.1502, 505.586.150, 1986A01821, 104210-1200, 104211-8530, 210935, 210935A, 553967RI, 849251, 1202273, 1202453, 1203273, 12090981, 32083920, 51808561, 51863675, 51943777, 52003623, 52021968, 95511969, 95519889, 95520425

    • Normalised article numbler
      a6472denso, a6472s, a6563s, a6674s, cal40402, dan1123, dra1395, f032116649, 1986a01821, 210935, 210935a, 287515, 553967ri, 849251, 1202273, 1202453, 1203273, 12090981, 32083920, 51808561, 51863675, 51943777, 52003623, 52021968, 95511969, 95519889, 95520425, 505586150, 1042101200, 1042118530, 2183231502
