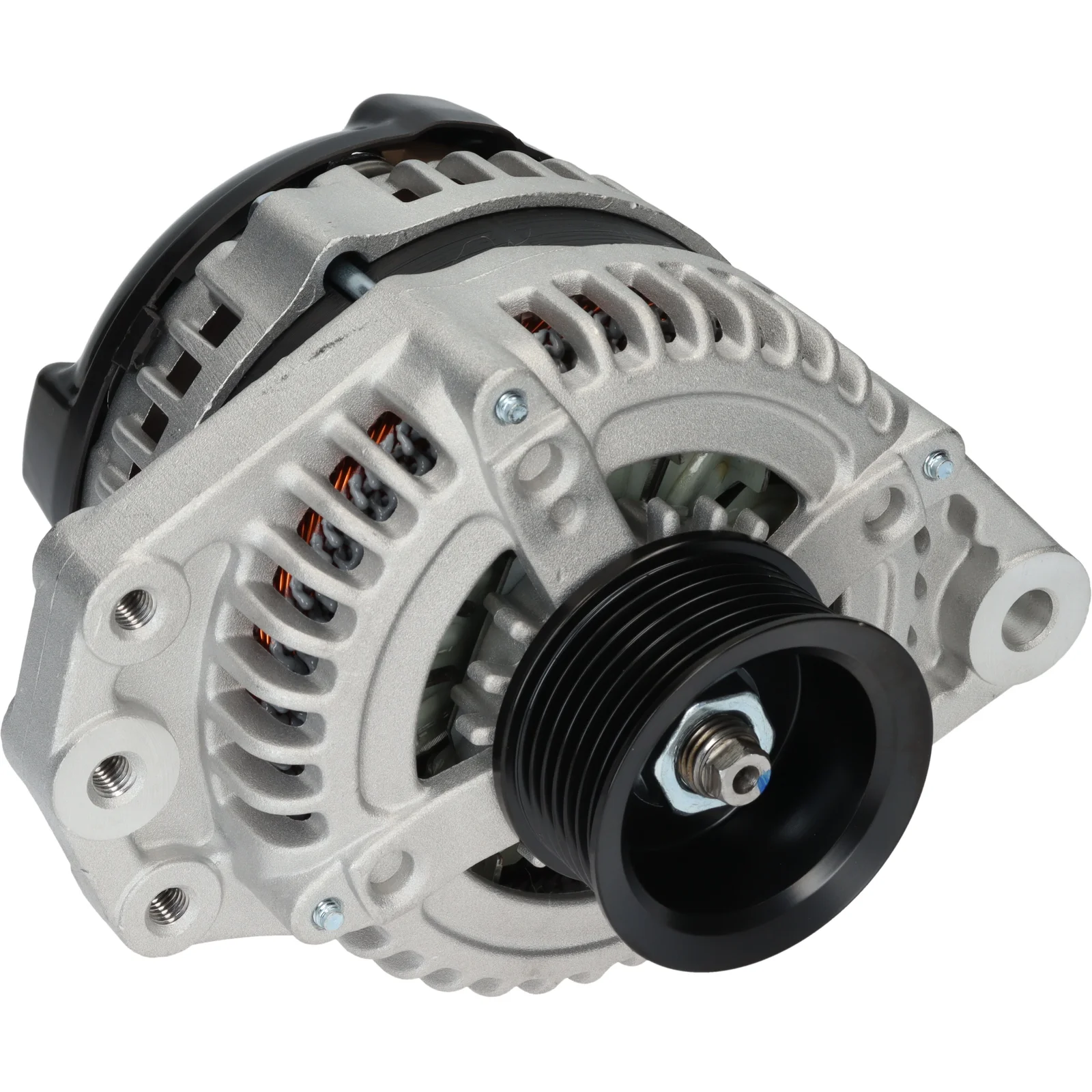

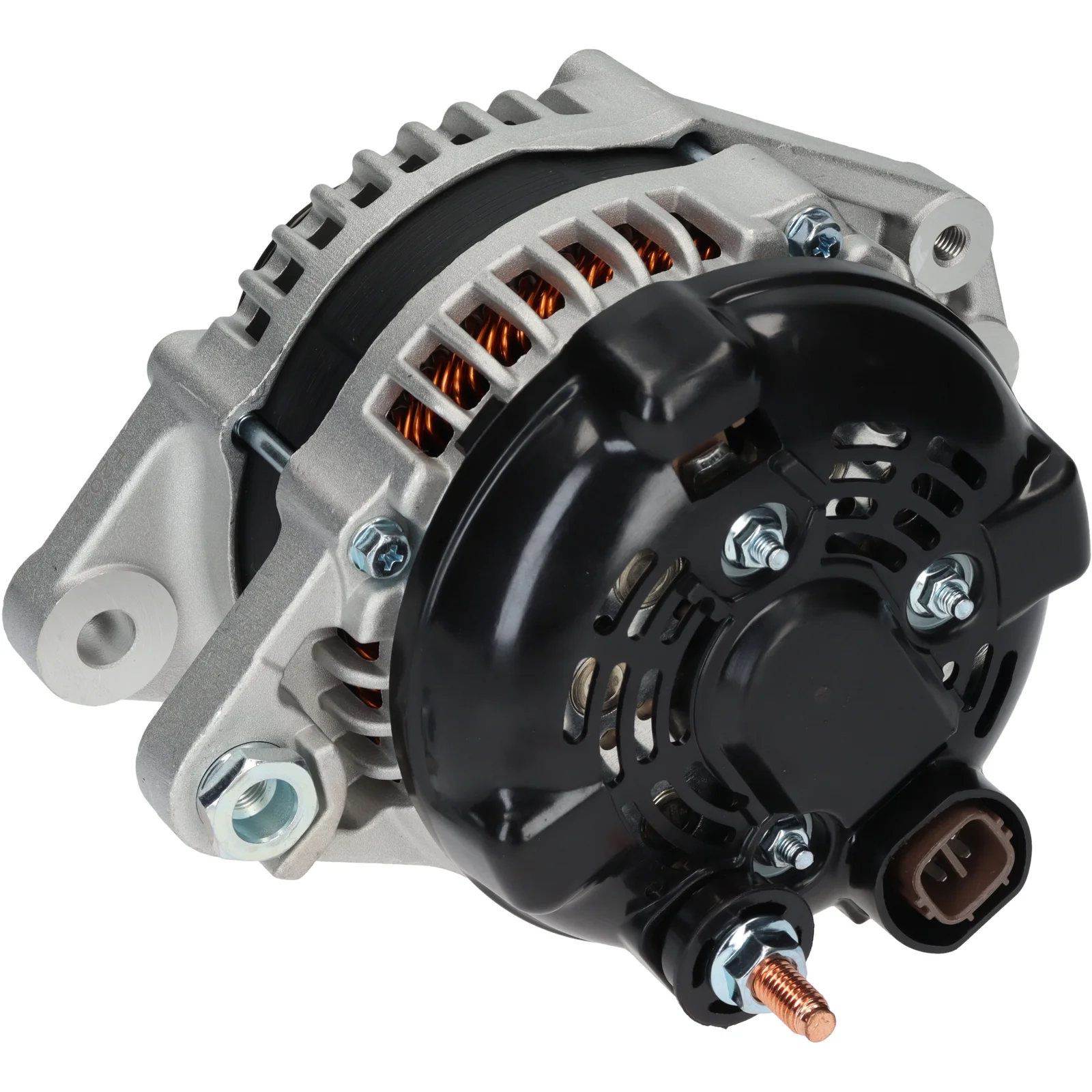

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116661

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 42.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 31.50
Width/holder arm: 16.00
Mounting bracket distance: 42.00
Bracket hole: 11.00
Belt tension bracket hole position: 2
Belt tension bracket hole position 3: 58
Belt tension bracket hole position 2: 54
Belt tension bracket hole 1: M8
Belt tension bracket hole 2: M8
Belt tension bracket hole 3: M8
Pulley diameter: 60.00
Grooves/pulley: 7
Radius: 87.00
Radius 2: 87.00
Radius 3: 86.00
Radius 4: 84.00
B+: M8
Position/B+ in minutes: 20
D+ size: Plug
Rotation: CW
Plug number: PL60
Total length mm: 188.00
Pulley: SP
Fan: IF
Voltage regulator type: IR

Files

  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 31.50
    Width/holder arm: 16.00
    Mounting bracket distance: 42.00
    Bracket hole: 11.00
    Belt tension bracket hole position: 2
    Belt tension bracket hole position 3: 58
    Belt tension bracket hole position 2: 54
    Belt tension bracket hole 1: M8
    Belt tension bracket hole 2: M8
    Belt tension bracket hole 3: M8
    Pulley diameter: 60.00
    Grooves/pulley: 7
    Radius: 87.00
    Radius 2: 87.00
    Radius 3: 86.00
    Radius 4: 84.00
    B+: M8
    Position/B+ in minutes: 20
    D+ size: Plug
    Rotation: CW
    Plug number: PL60
    Total length mm: 188.00
    Pulley: SP
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles
