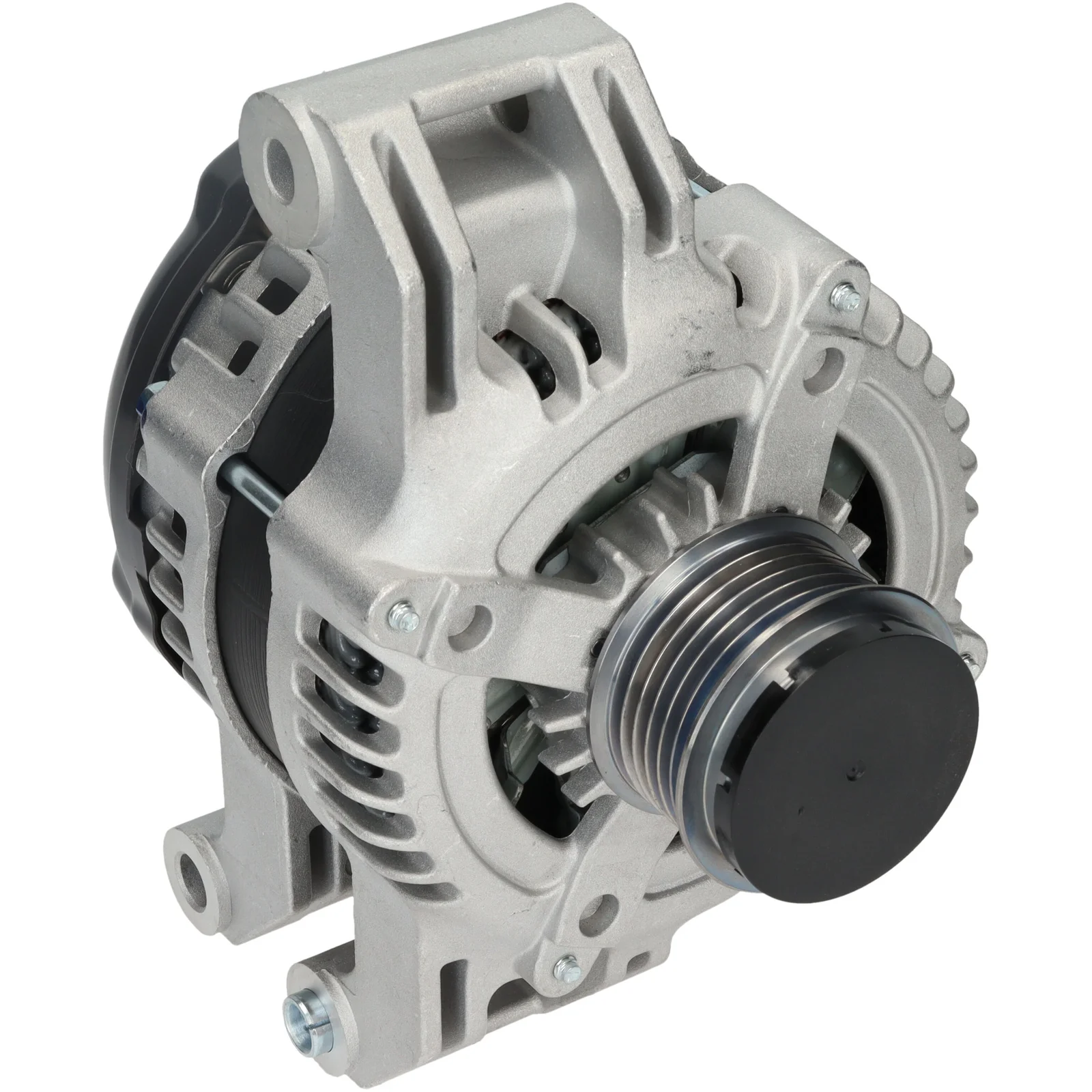

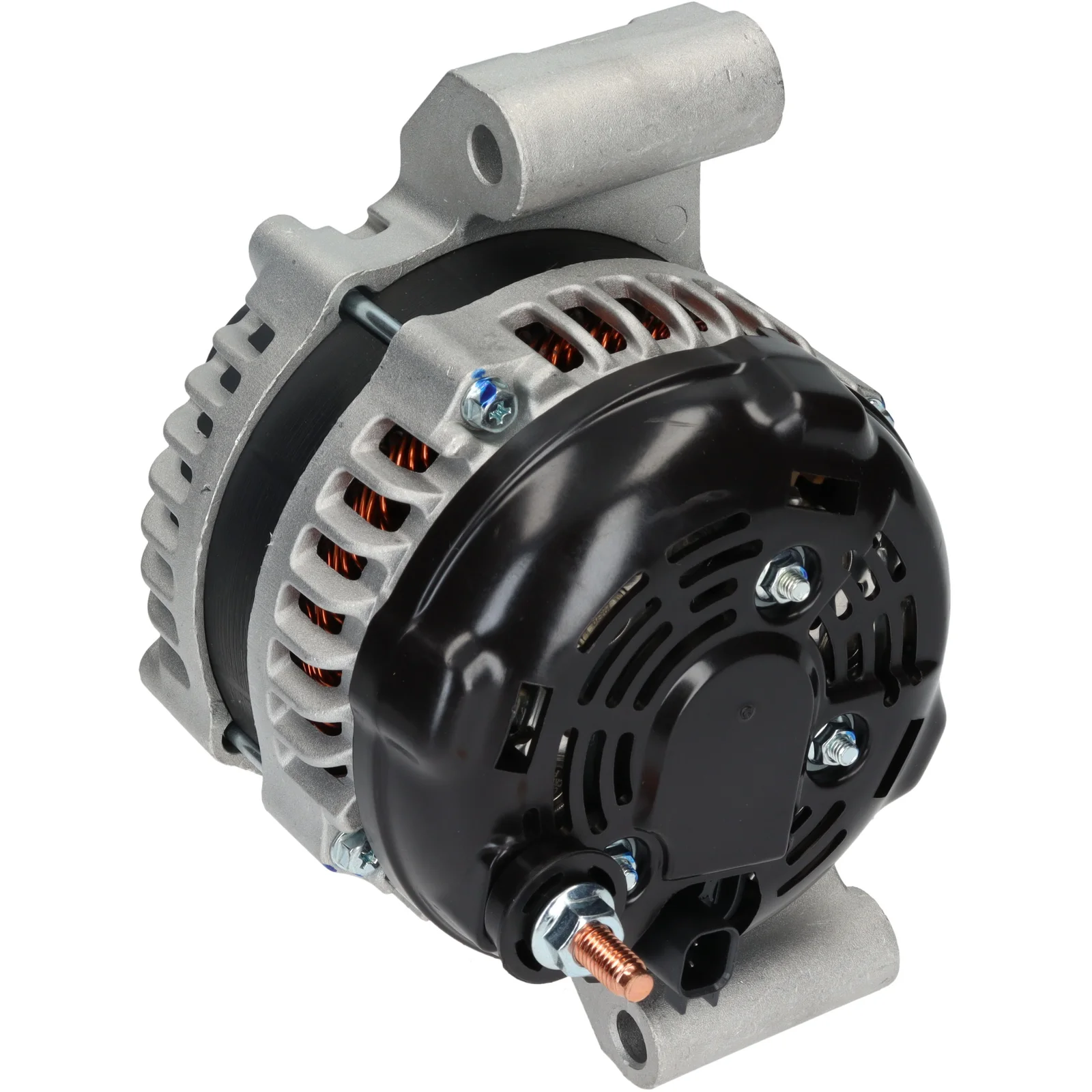

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116662

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 160, Rotation: CW, Mounting bracket distance: 49.00

Description

Voltage: 14
Amp: 160
Pulley dist.: 54.00
Width/holder arm: 57.50
Mounting bracket dist.: 49.00
Bracket hole: 8.60
Belt adjustment bracket hole 1: 8.30x9.60
Pulley dia.: 52.40
Grooves/pulley: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL177
Total length mm: 193.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116662, K04801779AL, 421000-0750, 421000-0752, 4801779AG, 56029624AB

  • Normalised article numbler
    a5353, a6537s, cal40511, dra2186, f032116662, k04801779al, lra04198, 11572n, 40434, 277807, 554820ri, 4801779ag, 12090879, 56029624ab, 835979160, 4210000750, 4210000752, 5340691602
  • Description
    Voltage: 14
    Amp: 160
    Pulley dist.: 54.00
    Width/holder arm: 57.50
    Mounting bracket dist.: 49.00
    Bracket hole: 8.60
    Belt adjustment bracket hole 1: 8.30x9.60
    Pulley dia.: 52.40
    Grooves/pulley: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 40
    Rotation: CW
    Plug no.: PL177
    Total length mm: 193.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116662, K04801779AL, 421000-0750, 421000-0752, 4801779AG, 56029624AB

    • Normalised article numbler
      a5353, a6537s, cal40511, dra2186, f032116662, k04801779al, lra04198, 11572n, 40434, 277807, 554820ri, 4801779ag, 12090879, 56029624ab, 835979160, 4210000750, 4210000752, 5340691602
