HC-Cargo Alternator

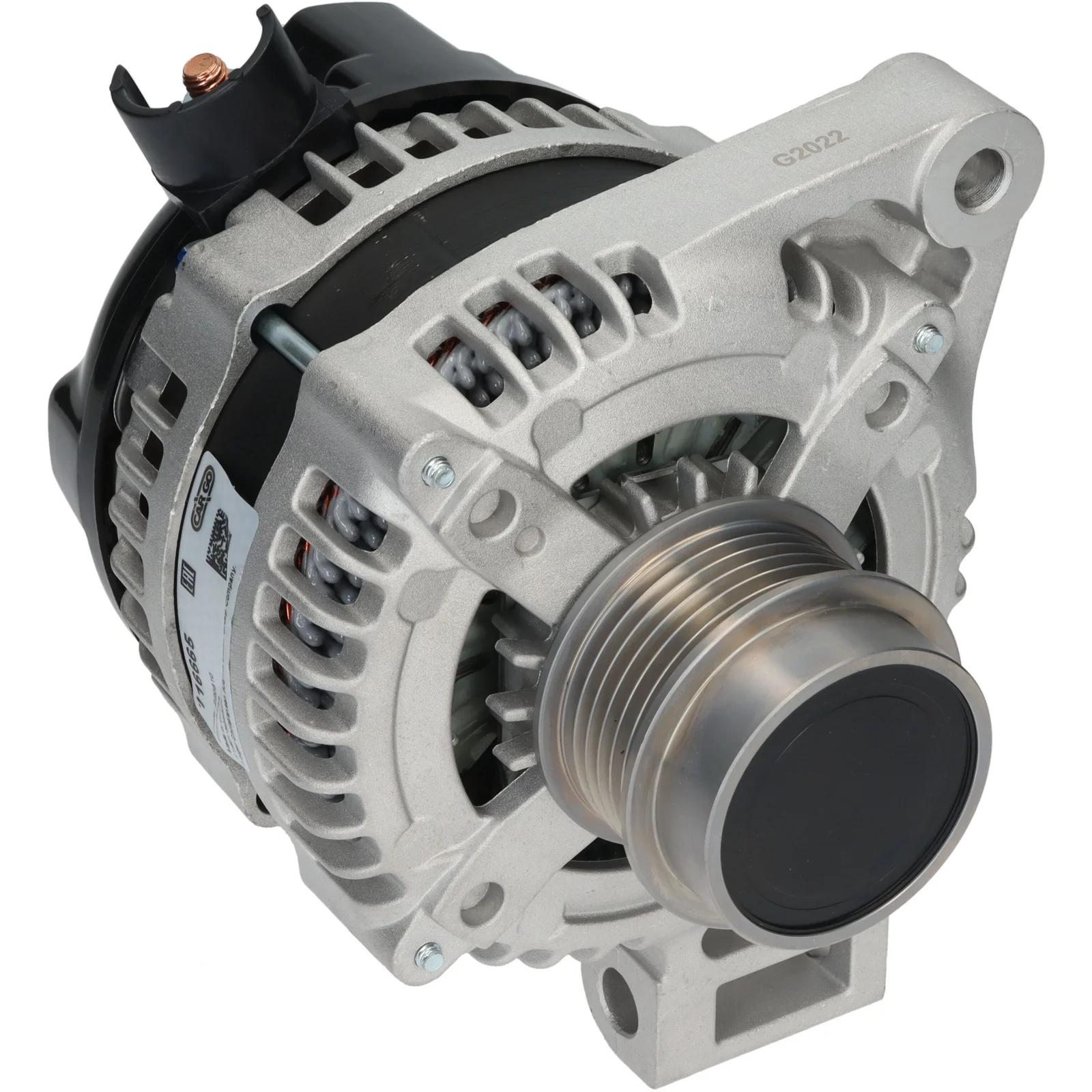

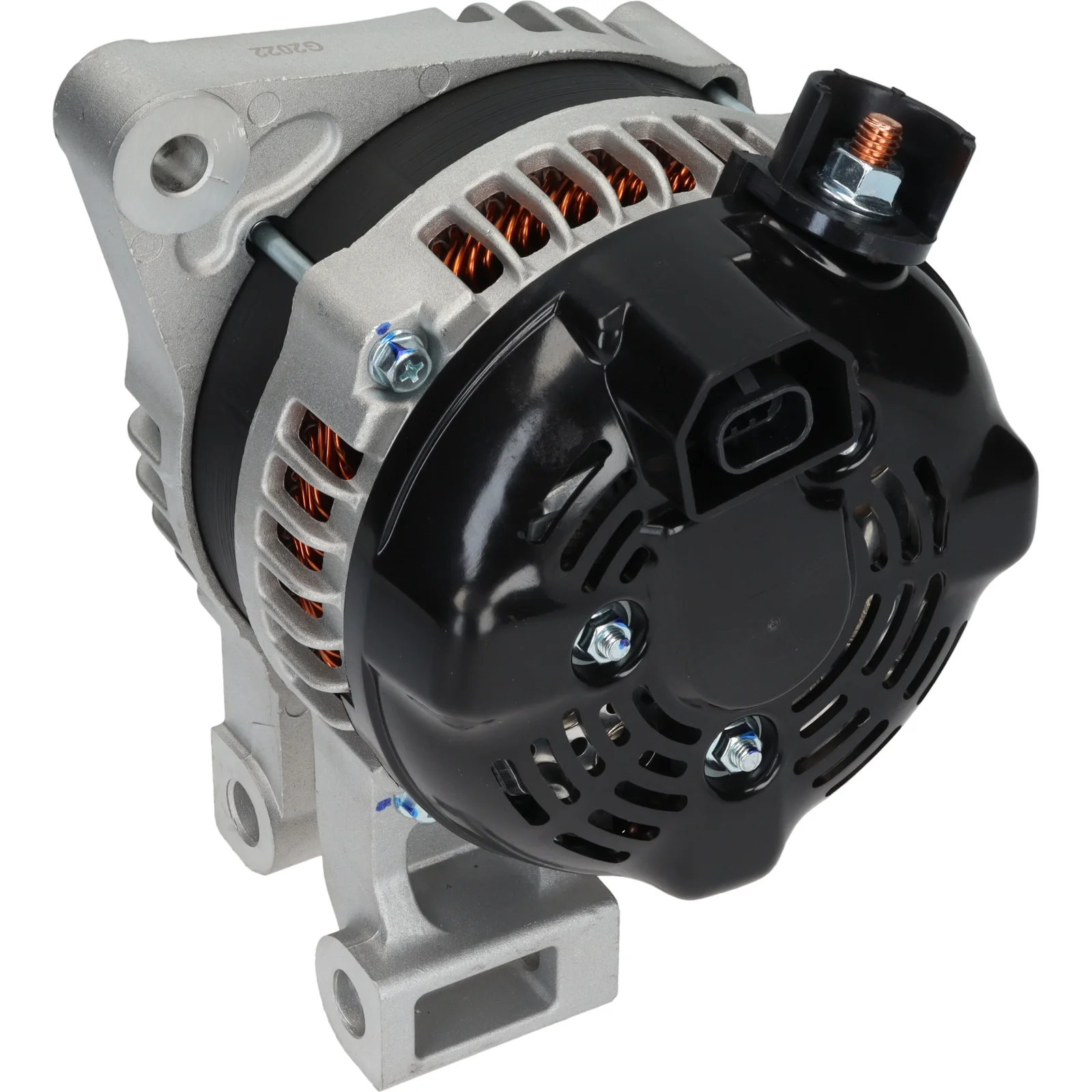

HC-Cargo Alternator
Article no.: F032116665

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 32.00
Width/holder arm: 50.00
Mount. bracket dist.: 59.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 91.00
Radius 2: 88.00
B+: M8
Position/B+ in min.: 4
Rotation: CW
Plug no.: PL180
Total length mm: 180.00
Terminal type: L-F
Communication: PWM
Alternator: SP/FW
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116665, 104210-2170, 104210-2172, 1204645, 13502584

  • Normalised article numbler
    a6488s, cal40502, dra1237, f032116665, lra04136, 40328, 287745, 440716, 555346ri, 1204645, 12090903, 13502584, 135921150, 1042102170, 1042102172, 2283121502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 32.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 59.00
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 91.00
    Radius 2: 88.00
    B+: M8
    Position/B+ in min.: 4
    Rotation: CW
    Plug no.: PL180
    Total length mm: 180.00
    Terminal type: L-F
    Communication: PWM
    Alternator: SP/FW
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a PWM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116665, 104210-2170, 104210-2172, 1204645, 13502584

    • Normalised article numbler
      a6488s, cal40502, dra1237, f032116665, lra04136, 40328, 287745, 440716, 555346ri, 1204645, 12090903, 13502584, 135921150, 1042102170, 1042102172, 2283121502
