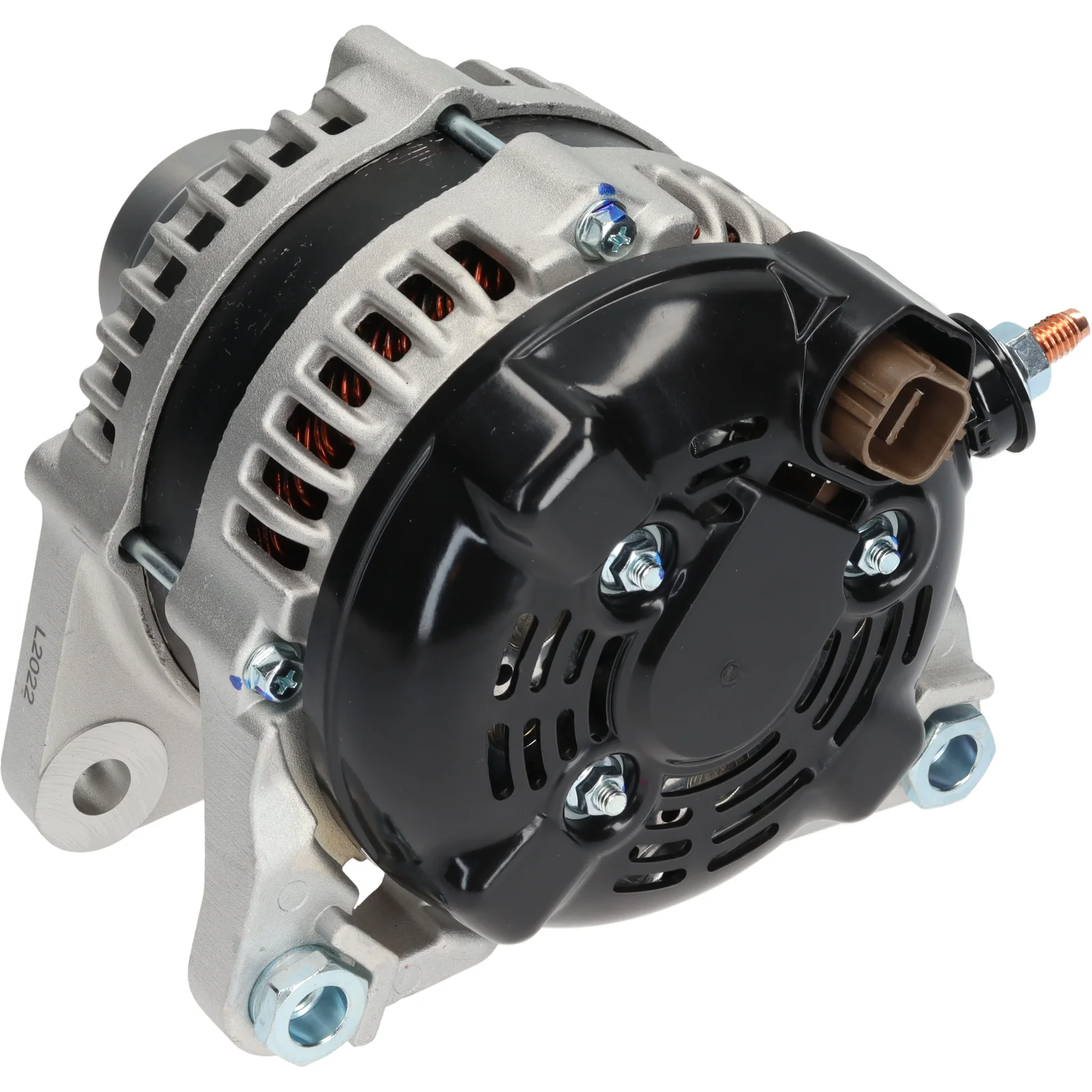

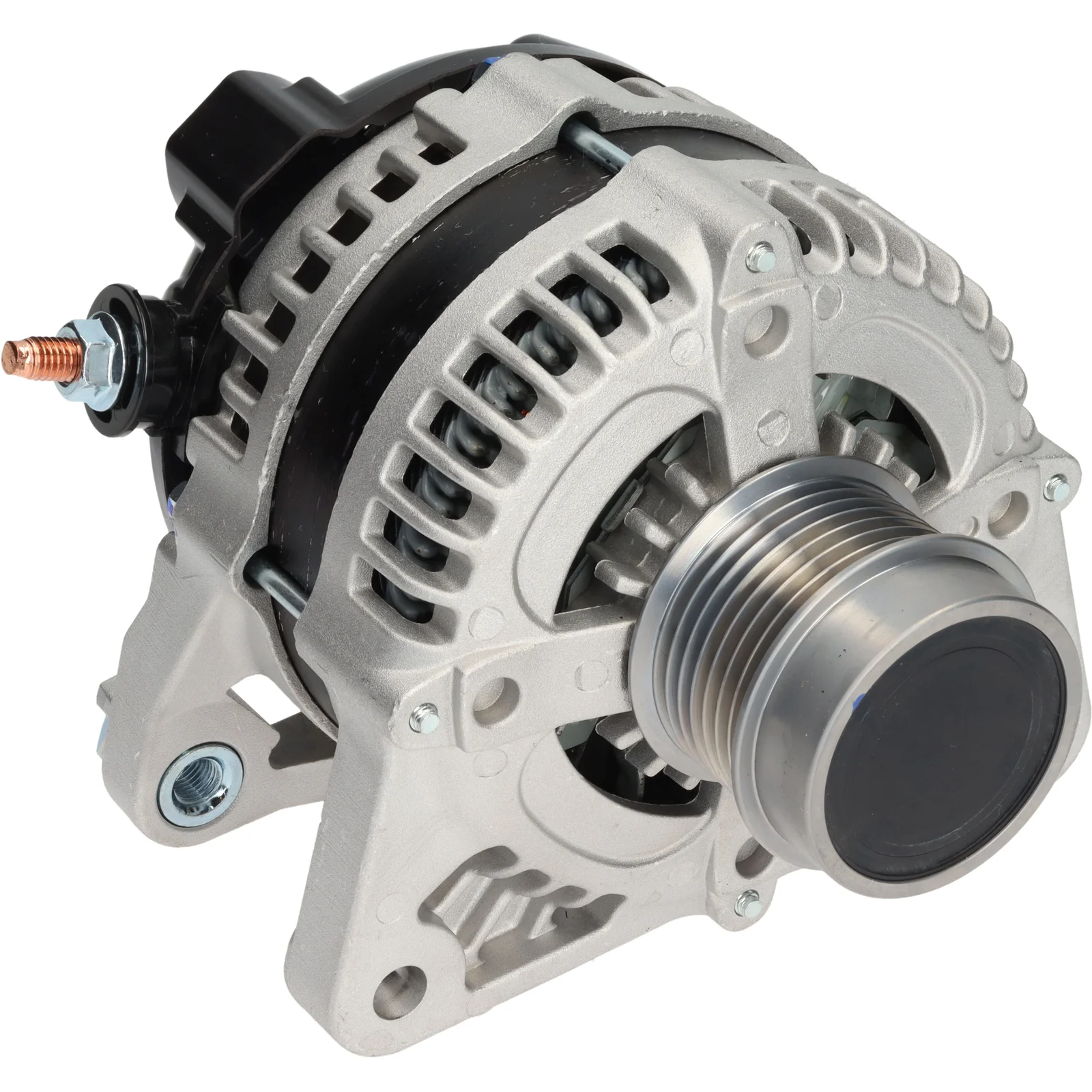

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116667

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 130, Rotation: clockwise, Mounting bracket distance: 55.50

Description

Voltage: 14
Amp: 130
Pulley distance: 33.00
Width/holder arm: 16.20
Mounting bracket distance: 55.50
Bracket hole: 12.00
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 55.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Total length mm: 180.00
Terminal type: L-IG-FR-C
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116667, 31400-67J1, 31400-67J10, 31400-67J11, 31400-67J11-000, 104210-1180

  • Normalised article numbler
    a6487s, a6488s, cal40388, f032116667, lra04136, 40328, 287745, 287827, 555346ri, 3140067j1, 3140067j10, 3140067j11, 3140067j11000, 12061170, 185536140, 1042101180, 2283121502, 2451421402
  • Description
    Voltage: 14
    Amp: 130
    Pulley distance: 33.00
    Width/holder arm: 16.20
    Mounting bracket distance: 55.50
    Bracket hole: 12.00
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 55.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Total length mm: 180.00
    Terminal type: L-IG-FR-C
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116667, 31400-67J1, 31400-67J10, 31400-67J11, 31400-67J11-000, 104210-1180

    • Normalised article numbler
      a6487s, a6488s, cal40388, f032116667, lra04136, 40328, 287745, 287827, 555346ri, 3140067j1, 3140067j10, 3140067j11, 3140067j11000, 12061170, 185536140, 1042101180, 2283121502, 2451421402
