HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116670

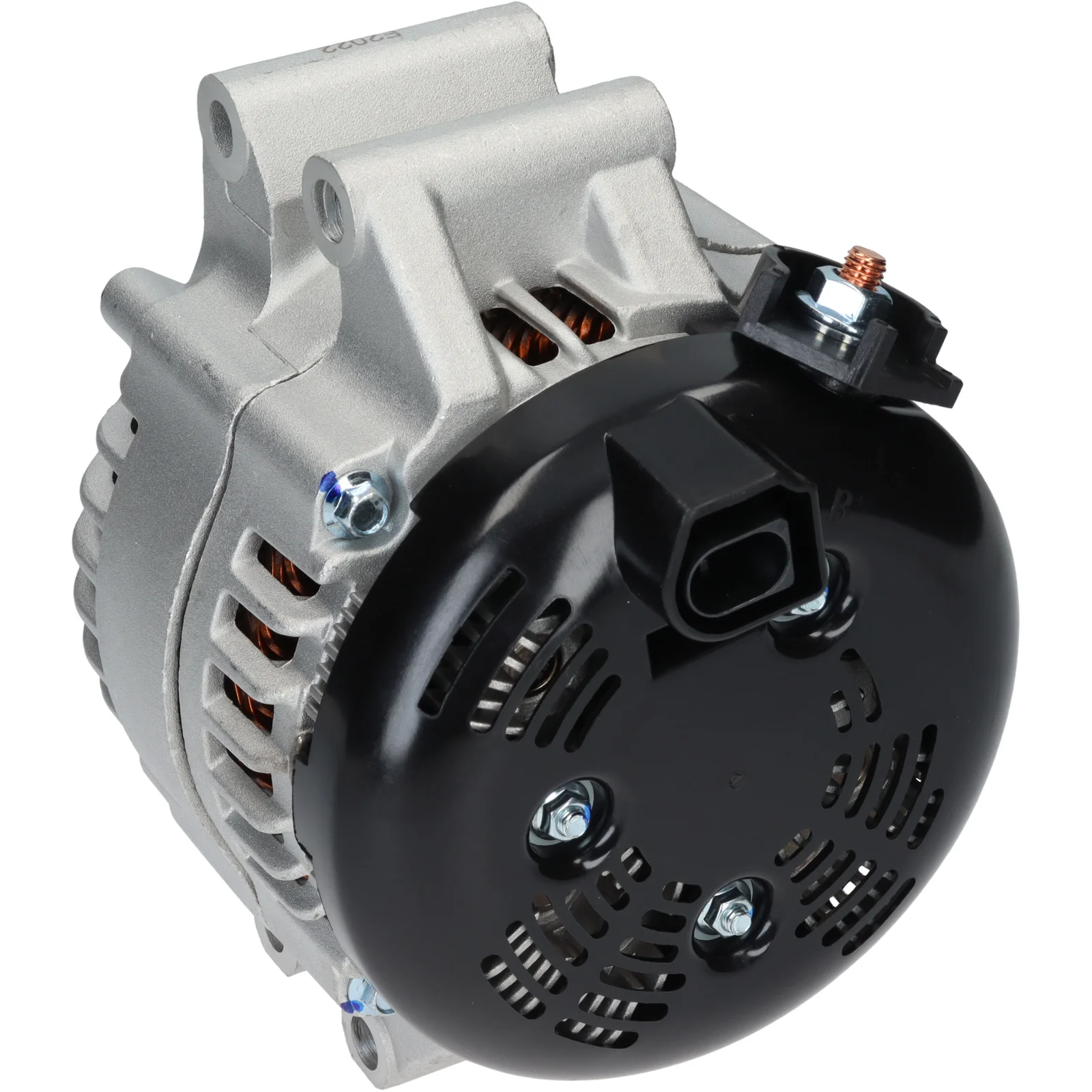

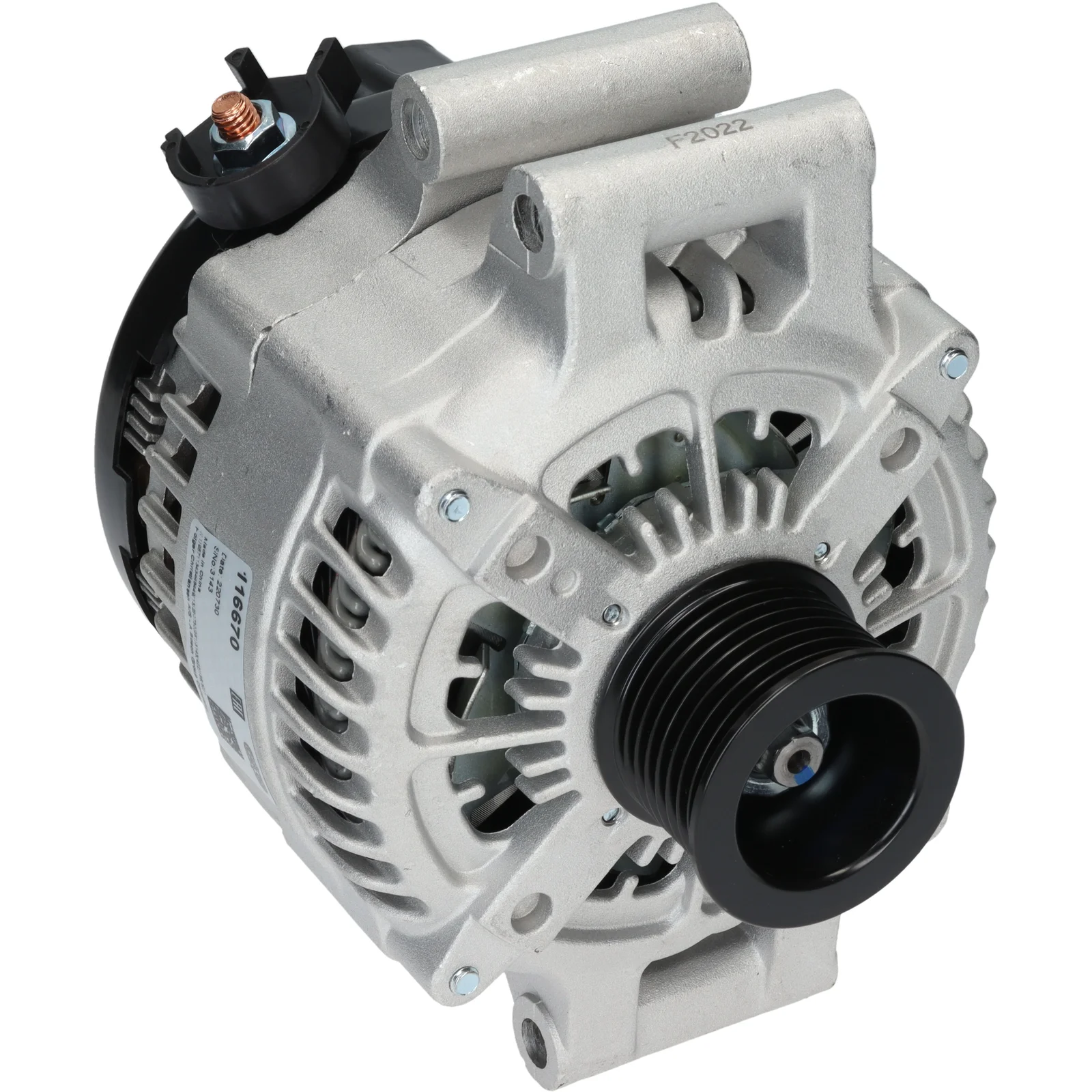

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 210, Rotation: CW, Mounting bracket distributor: 40.50

Description

Voltage: 14
Amp: 210
Pulley dist.: 30.00
Width/holder arm: 62.50
Mount. bracket dist.: 40.50
Bracket hole: 8.00
Belt. adj. bracket hole 1: 8.00x9.50
Pulley dia.: 49.00
Grooves/pulley: 8
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL125
Total length mm: 183.00
Terminal type: COM
Communication: BSS
Alternator: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116670, 104210-6070, 104210-6071, 104210-6072, 7591529, 7591530, 12317591529, 12317591530

  • Normalised article numbler
    a6378, cal40455, dra1779, f032116670, lra03667, 11496, 40456, 286807, 443426, 554842rir, 7591529, 7591530, 12090691, 89215822, 215572210, 1042106070, 1042106071, 1042106072, 2153012102, 12317591529, 12317591530
  • Description
    Voltage: 14
    Amp: 210
    Pulley dist.: 30.00
    Width/holder arm: 62.50
    Mount. bracket dist.: 40.50
    Bracket hole: 8.00
    Belt. adj. bracket hole 1: 8.00x9.50
    Pulley dia.: 49.00
    Grooves/pulley: 8
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL125
    Total length mm: 183.00
    Terminal type: COM
    Communication: BSS
    Alternator: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116670, 104210-6070, 104210-6071, 104210-6072, 7591529, 7591530, 12317591529, 12317591530

    • Normalised article numbler
      a6378, cal40455, dra1779, f032116670, lra03667, 11496, 40456, 286807, 443426, 554842rir, 7591529, 7591530, 12090691, 89215822, 215572210, 1042106070, 1042106071, 1042106072, 2153012102, 12317591529, 12317591530
