HC-Cargo Alternator

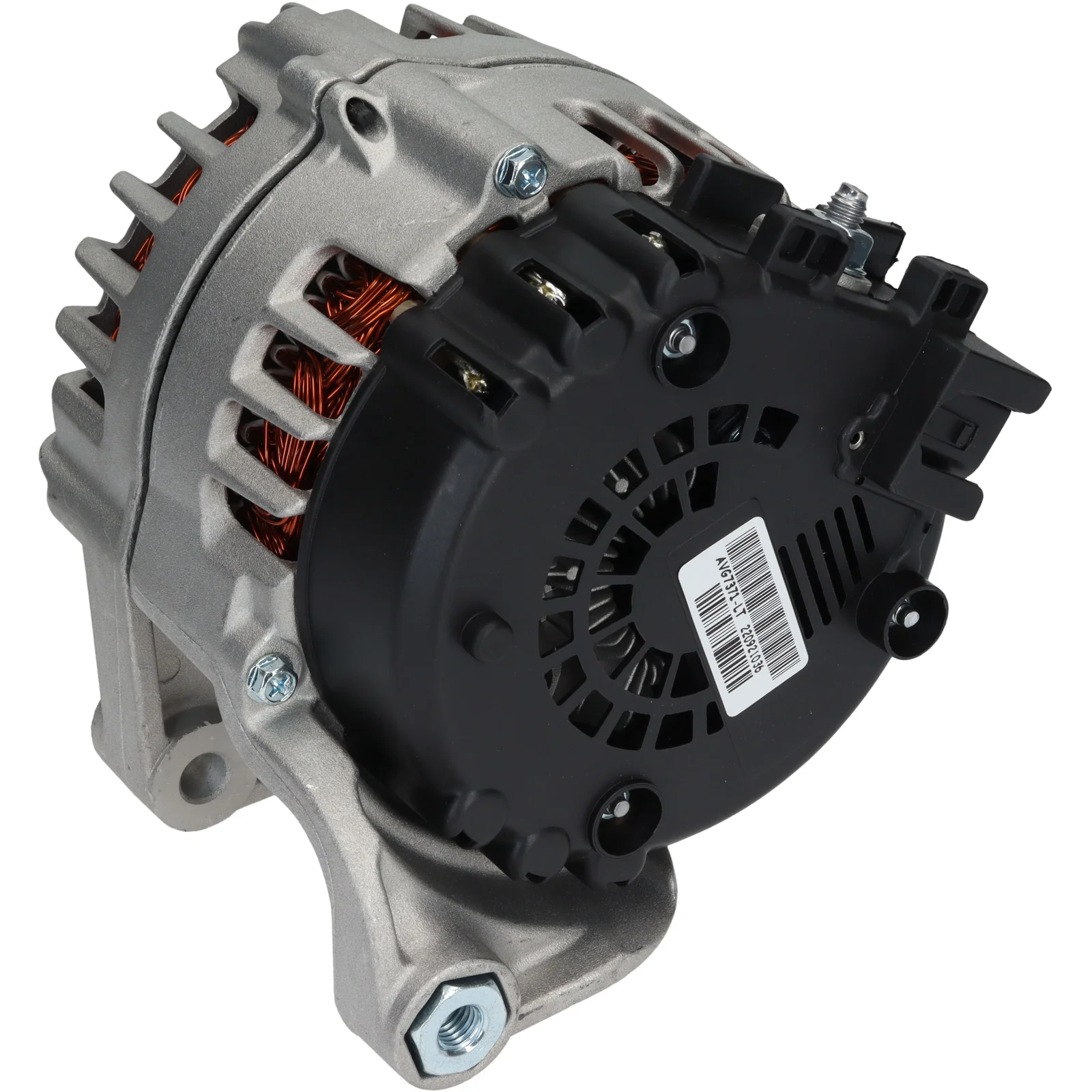

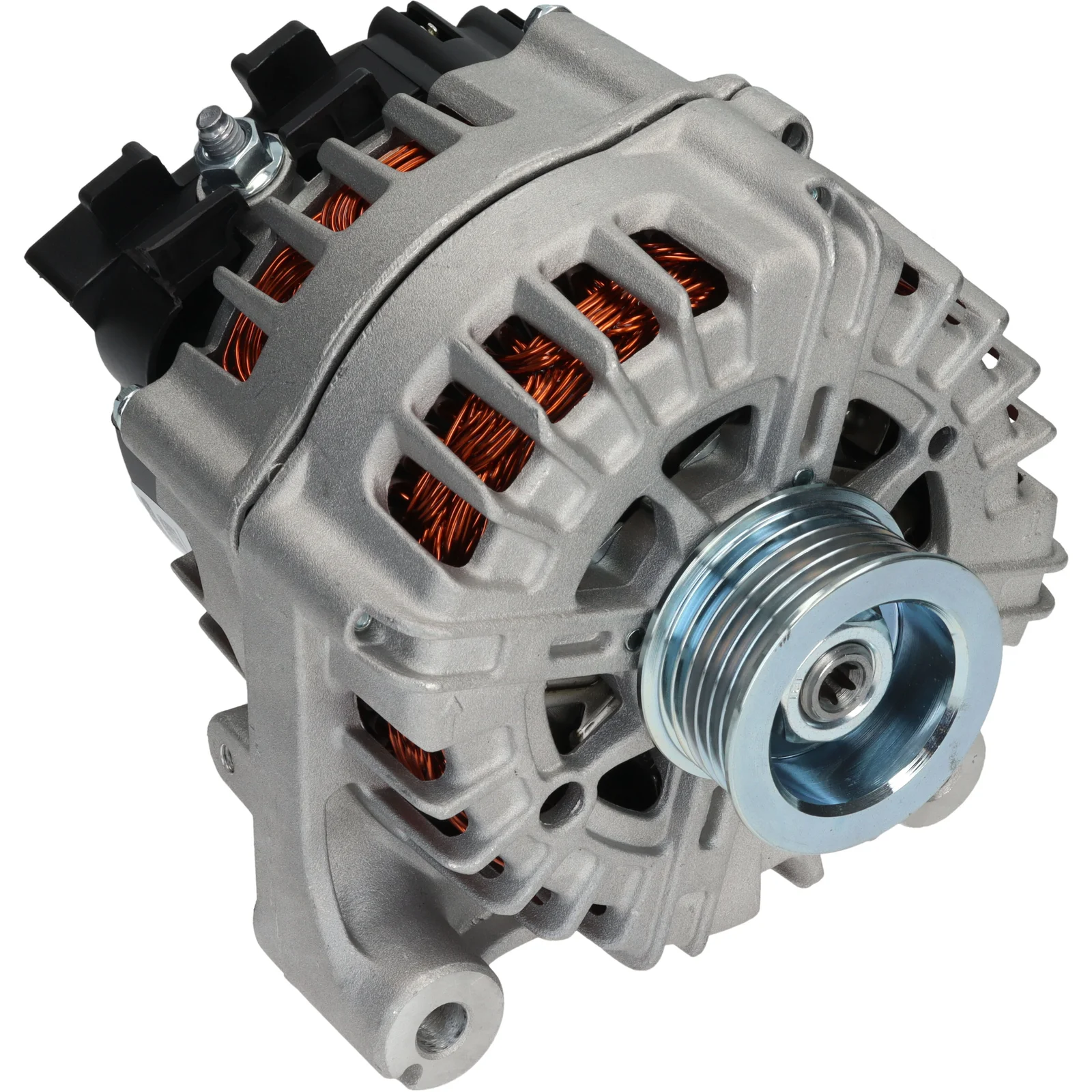

HC-Cargo Alternator
Article no.: F032116676

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 75.50

Description

HC-Cargo Alternator 14V - 180A, 6 grooves

Voltage: 14
Amp: 180
Pulley diameter: 57.50
Width/holder arm: 28.00
Mounting bracket diameter: 75.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 43
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 53.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 59
Rotation: CW
Plug number: PL125
Total length mm: 180.00
Terminal type: COM
ID Code: 52
Communication: BSS
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116676, FG18D024, 1231 7805432, 116676, 2605773, 2605773A, 2605773B, 7805432, 12317805432, 12317808073

  • Normalised article numbler
    cal15378, dra0429, f032116676, fg18d024, lra03124, 116676, 210815, 210815a, 285736, 439652, 440237, 554208ri, 2605773, 2605773a, 2605773b, 7805432, 9090574, 12090561, 32001000, 215553175, 2151821802, 12317805432, 12317808073
  • Description
    HC-Cargo Alternator 14V - 180A, 6 grooves

    Voltage: 14
    Amp: 180
    Pulley diameter: 57.50
    Width/holder arm: 28.00
    Mounting bracket diameter: 75.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 43
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 53.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 59
    Rotation: CW
    Plug number: PL125
    Total length mm: 180.00
    Terminal type: COM
    ID Code: 52
    Communication: BSS
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116676, FG18D024, 1231 7805432, 116676, 2605773, 2605773A, 2605773B, 7805432, 12317805432, 12317808073

    • Normalised article numbler
      cal15378, dra0429, f032116676, fg18d024, lra03124, 116676, 210815, 210815a, 285736, 439652, 440237, 554208ri, 2605773, 2605773a, 2605773b, 7805432, 9090574, 12090561, 32001000, 215553175, 2151821802, 12317805432, 12317808073
