HC-Cargo Alternator

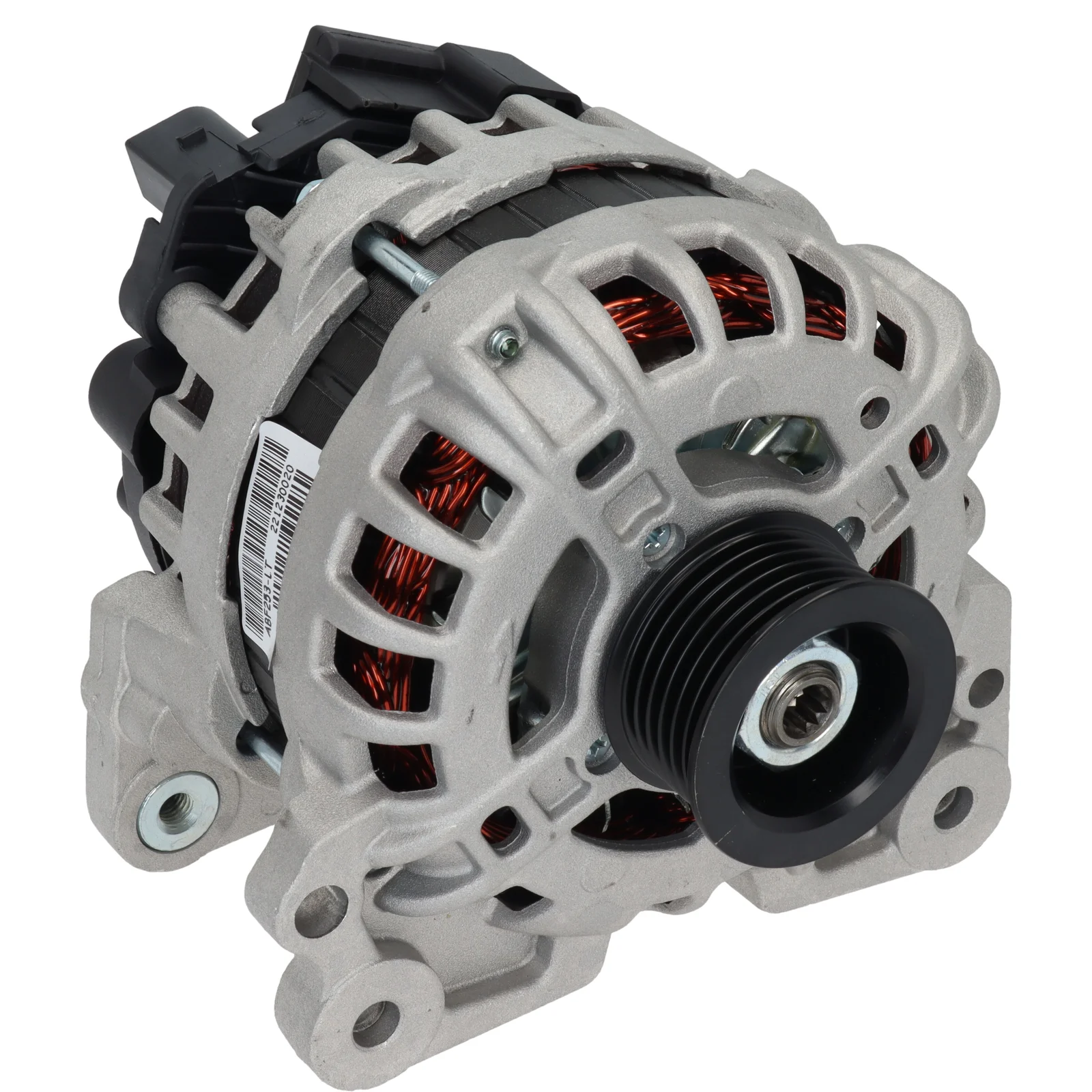

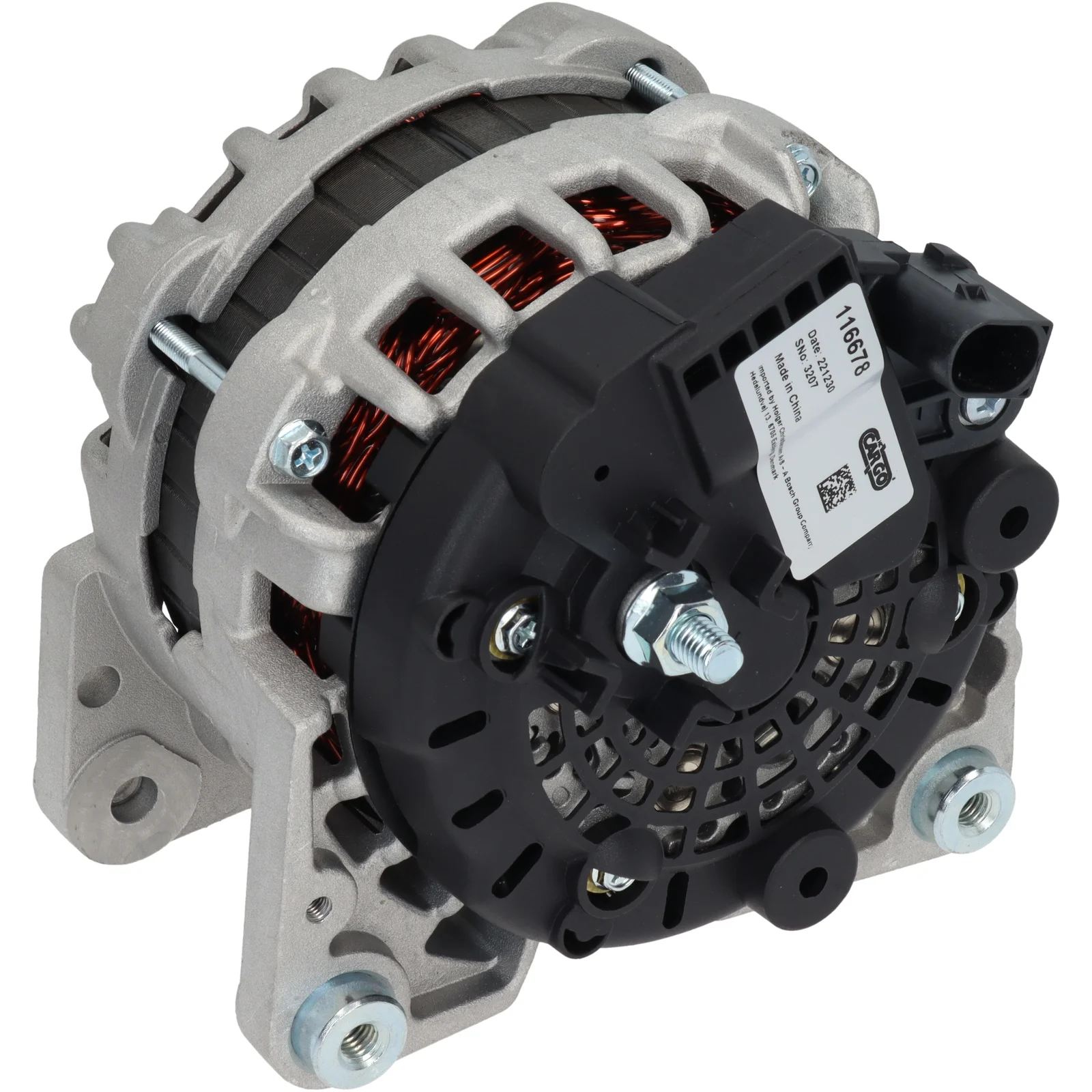

HC-Cargo Alternator
Article no.: F032116678

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 90
Pulley: Tensioner
dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley: Pulley dia.: 49.20
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 44
Rotation: CW
Plug no.: PL125
Total length mm: 166.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL04D3, F000BL04D4, F032116678, 04C903023E, 04C903023EX, 1986A01525

  • Normalised article numbler
    dra1585, f000bl04d3, f000bl04d4, f032116678, 04c903023e, 04c903023ex, 1986a01525, 40125, 287888, 12090986, 32084750, 211530902, 445515090, 0986084750
  • Description
    Voltage: 14
    Amp: 90
    Pulley: Tensioner
    dist.: 30.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley: Pulley dia.: 49.20
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 44
    Rotation: CW
    Plug no.: PL125
    Total length mm: 166.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL04D3, F000BL04D4, F032116678, 04C903023E, 04C903023EX, 1986A01525

    • Normalised article numbler
      dra1585, f000bl04d3, f000bl04d4, f032116678, 04c903023e, 04c903023ex, 1986a01525, 40125, 287888, 12090986, 32084750, 211530902, 445515090, 0986084750
