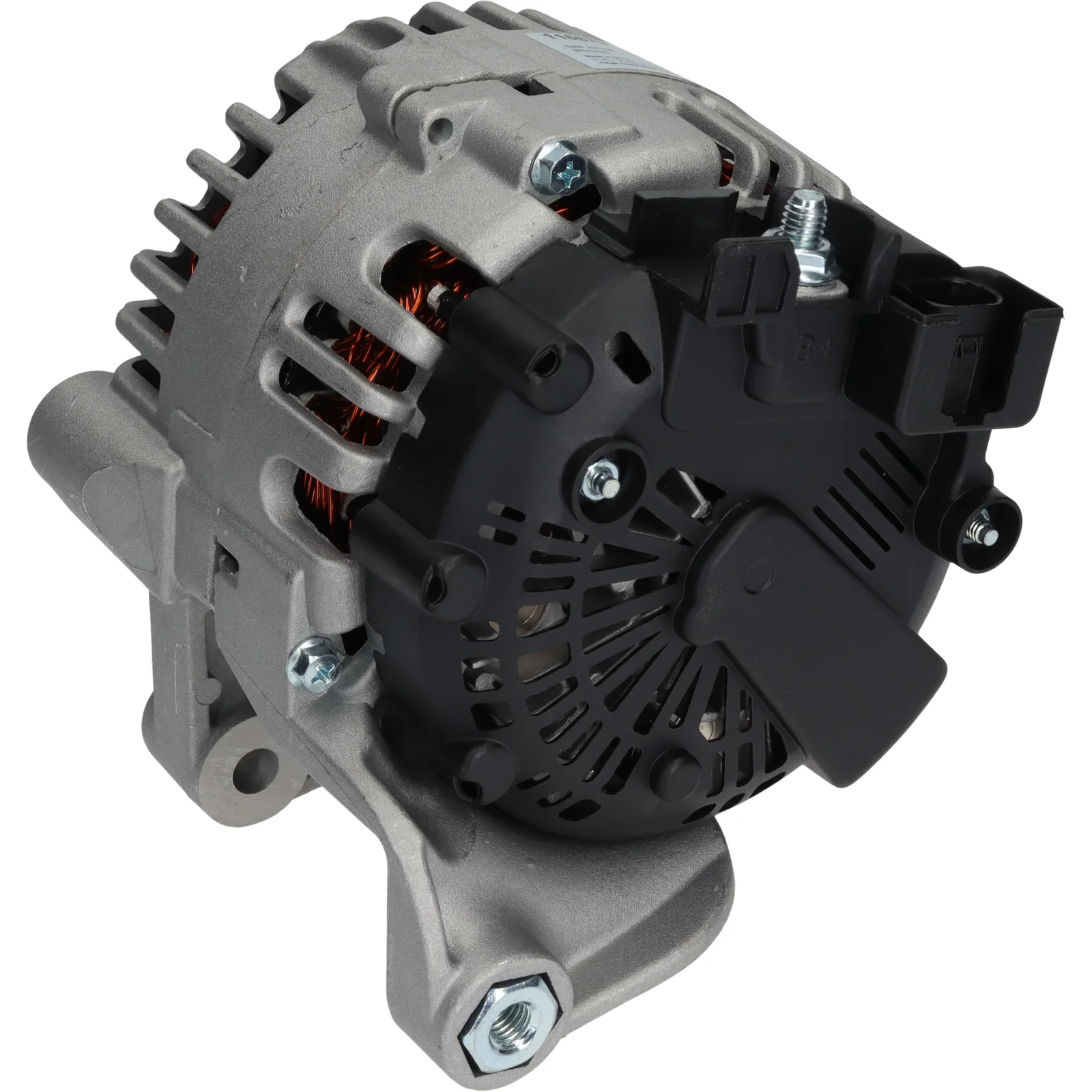

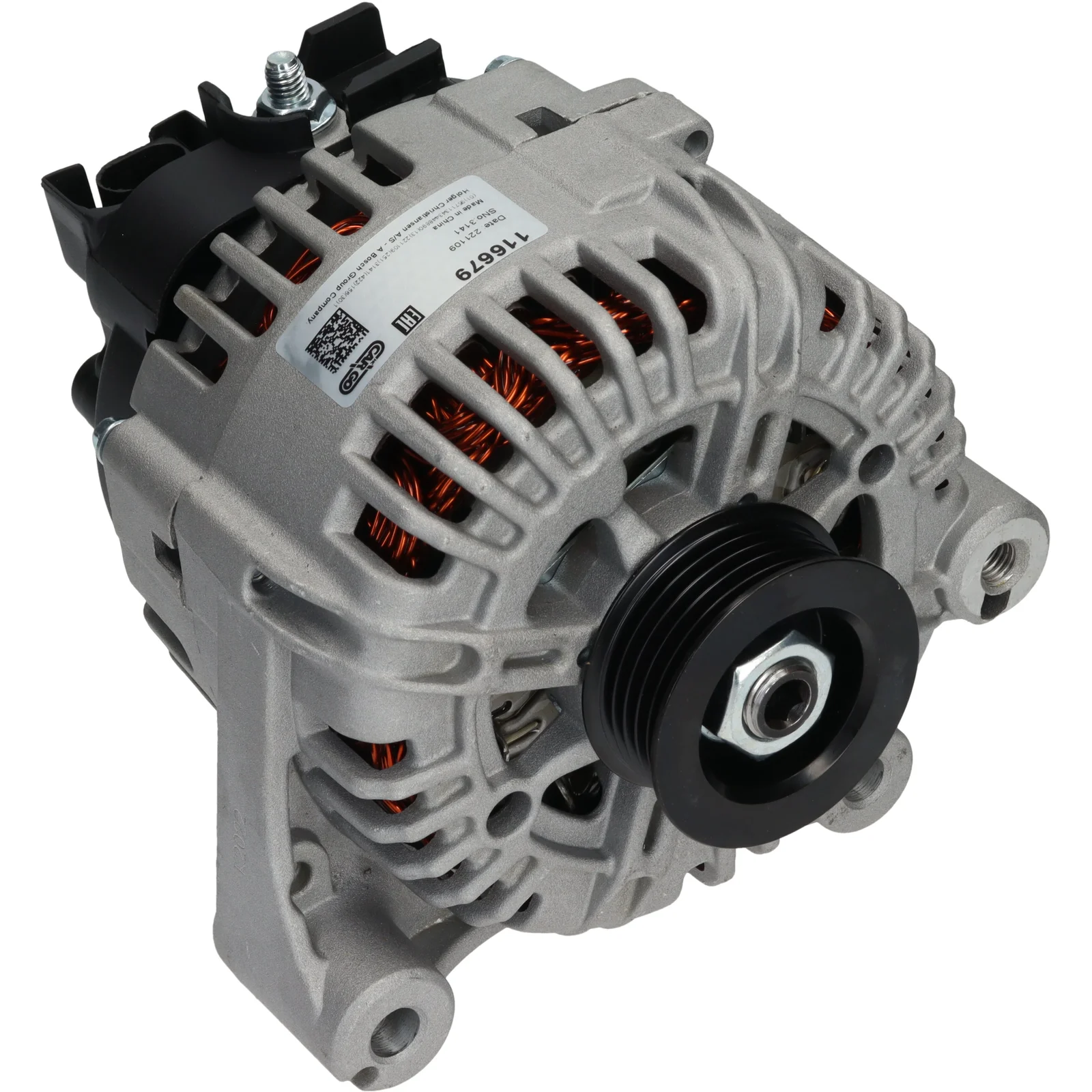

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116679

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 75.50

Description

Voltage: 14
Amp: 150
Pulley diameter: 56.00
Width/holder arm: 28.00
Mounting bracket diameter: 75.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 44
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 53.50
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Rotation: CW
Plug number: PL181
Total length mm: 173.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116679, TG15C200, 27060-YV040, 8574045, 12318574045

  • Normalised article numbler
    a3564s, a3564valeo, cal15051, dra2065, f032116679, lra04139, tg15c200, 21013os, 27060yv040, 40332, 287748, 439887, 440633, 554663riv, 8574045, 12061163, 89216264, 195945150, 12318574045
  • Description
    Voltage: 14
    Amp: 150
    Pulley diameter: 56.00
    Width/holder arm: 28.00
    Mounting bracket diameter: 75.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 44
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 53.50
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Rotation: CW
    Plug number: PL181
    Total length mm: 173.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116679, TG15C200, 27060-YV040, 8574045, 12318574045

    • Normalised article numbler
      a3564s, a3564valeo, cal15051, dra2065, f032116679, lra04139, tg15c200, 21013os, 27060yv040, 40332, 287748, 439887, 440633, 554663riv, 8574045, 12061163, 89216264, 195945150, 12318574045
