HC-Cargo Alternator

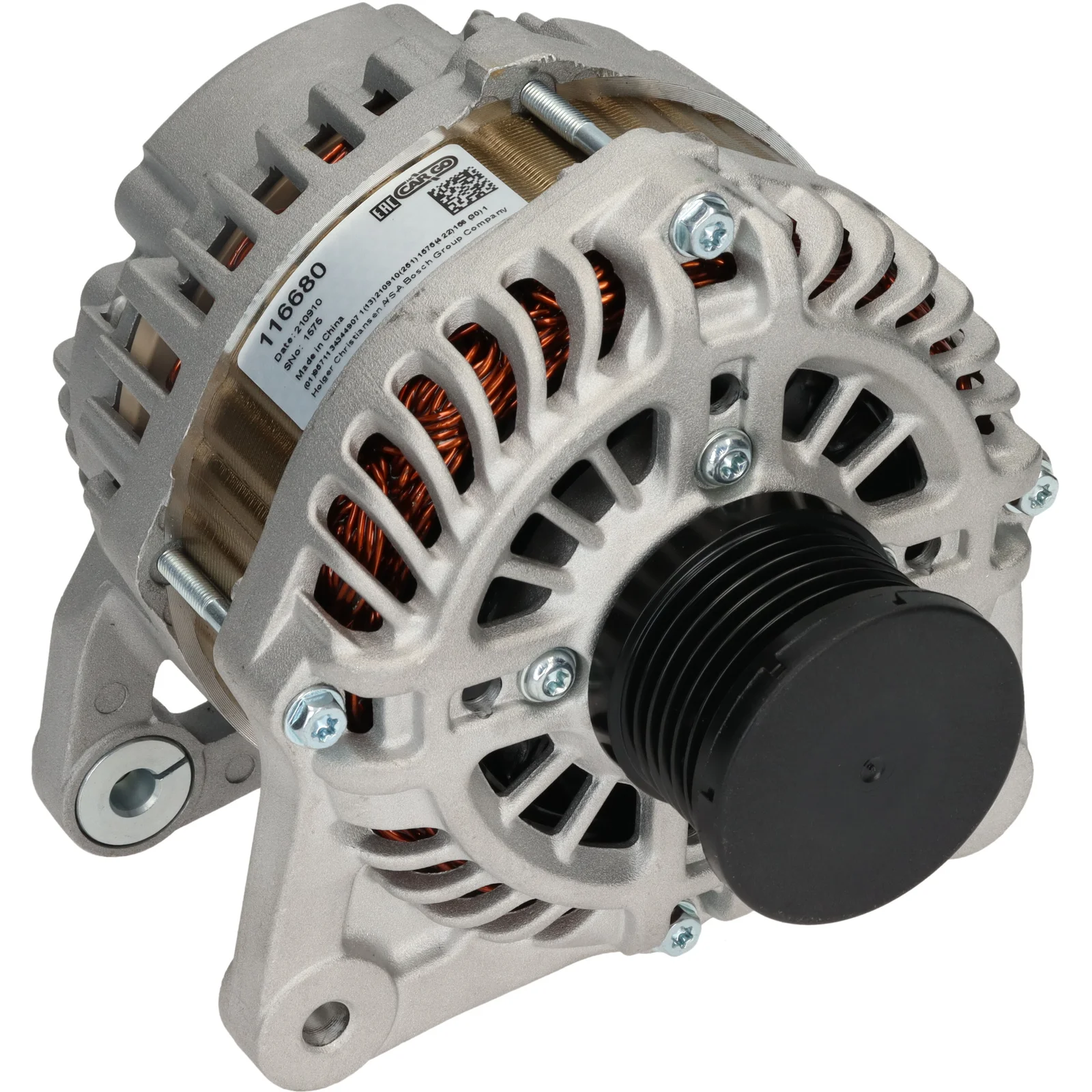

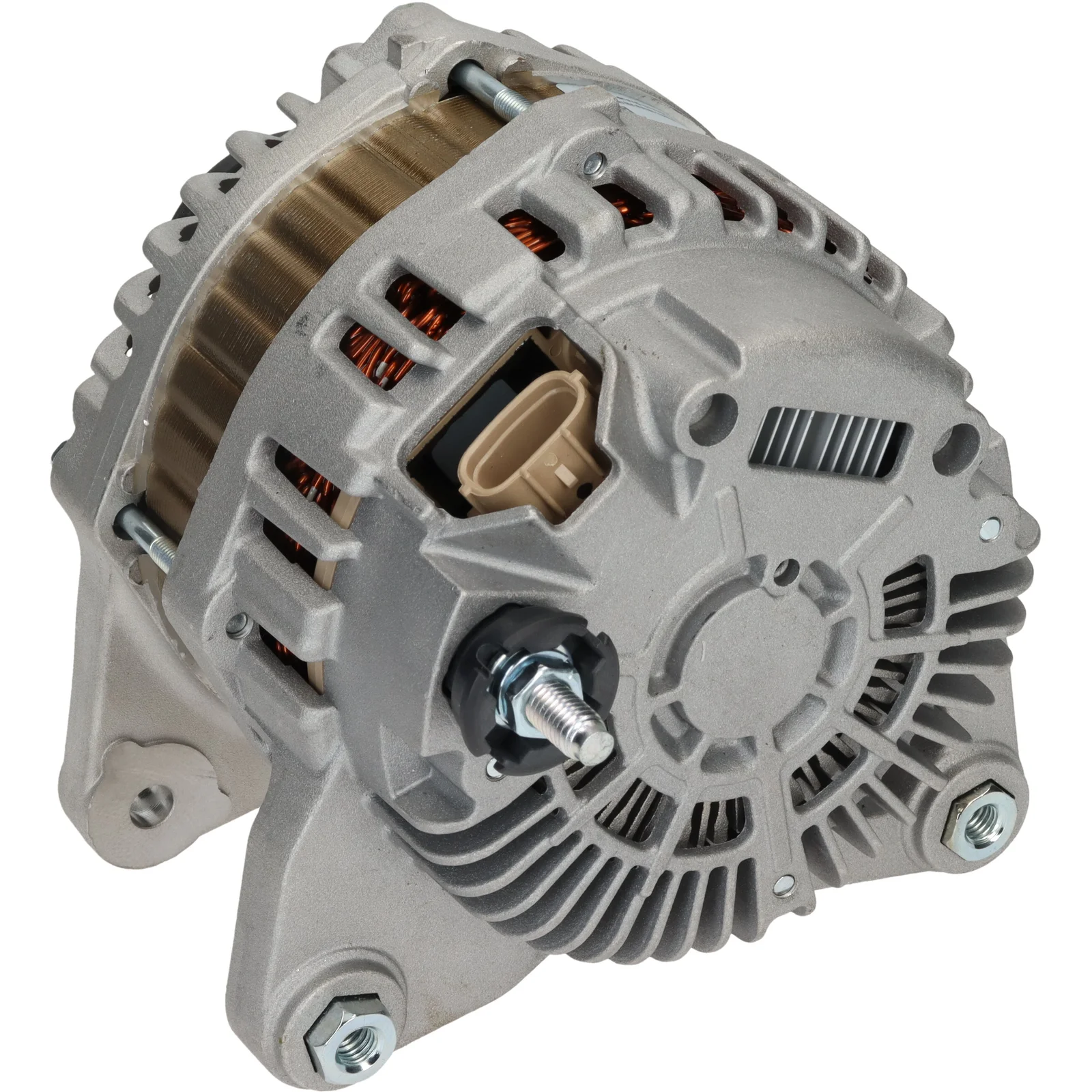

HC-Cargo Alternator
Article no.: F032116680

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 58.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 38.50
Width/holder arm: 14.00
Mount. bracket dist.: 58.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 41
D+ Size: Plug
Rotation: CW
Plug no.: PL163
Total length mm: 192.00
Lamp type: Inactive
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    A002TJ1381, A2TJ1381, A2TJ1381ZE, A2TJ2081, A2TJ2081ZE, F032116680, 23100-1KM1A, 23100-1KM1B, 23100-1KM1M, 23100-BV81C

  • Normalised article numbler
    a002tj1381, a2tj1381, a2tj1381ze, a2tj2081, a2tj2081ze, a5124, cal35360, dra0858, dra0858n, f032116680, 23100bv81c, 231001km1a, 231001km1b, 231001km1m, 287513, 554397ri, 12061026, 165599110
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 38.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 58.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 41
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL163
    Total length mm: 192.00
    Lamp type: Inactive
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A002TJ1381, A2TJ1381, A2TJ1381ZE, A2TJ2081, A2TJ2081ZE, F032116680, 23100-1KM1A, 23100-1KM1B, 23100-1KM1M, 23100-BV81C

    • Normalised article numbler
      a002tj1381, a2tj1381, a2tj1381ze, a2tj2081, a2tj2081ze, a5124, cal35360, dra0858, dra0858n, f032116680, 23100bv81c, 231001km1a, 231001km1b, 231001km1m, 287513, 554397ri, 12061026, 165599110
