HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116697

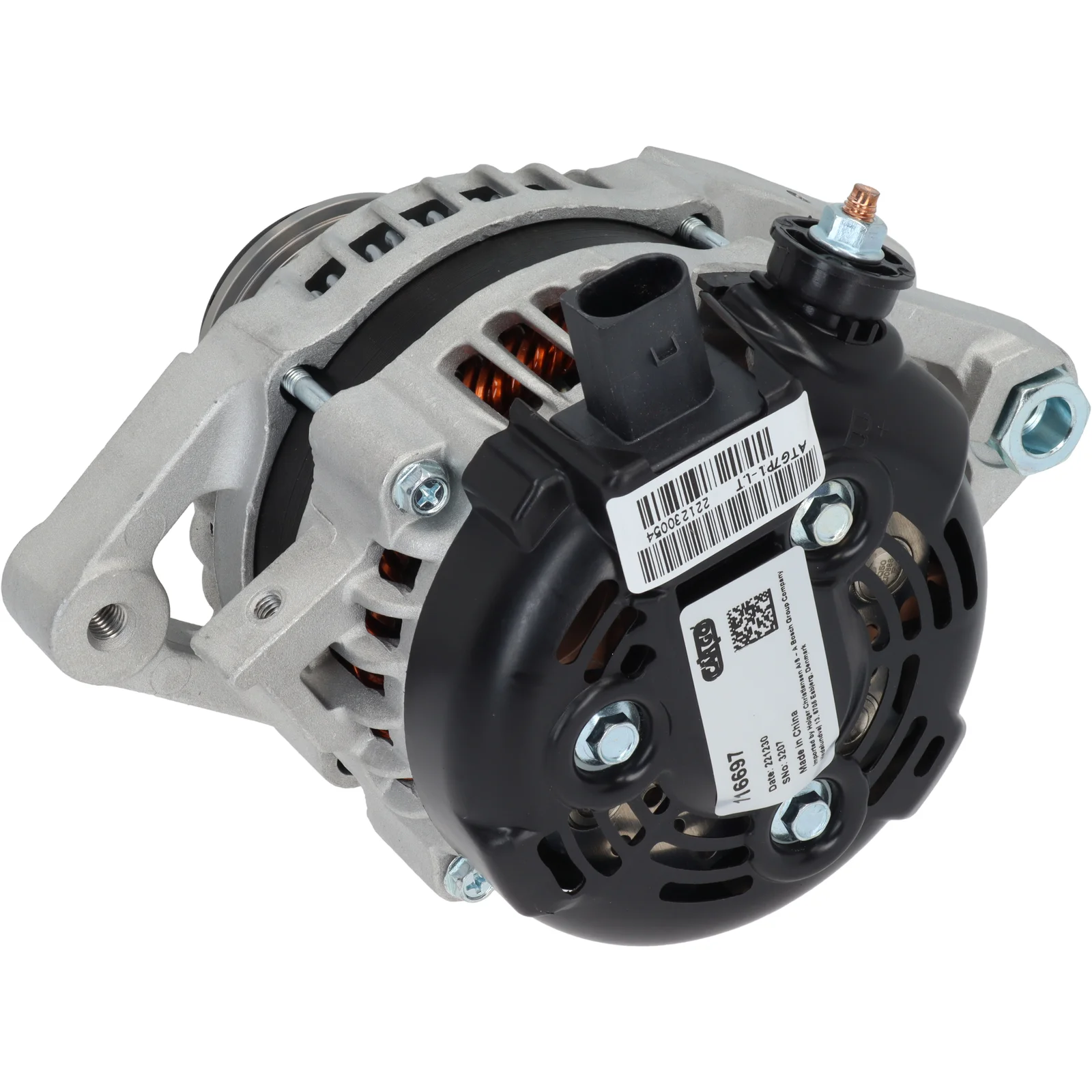

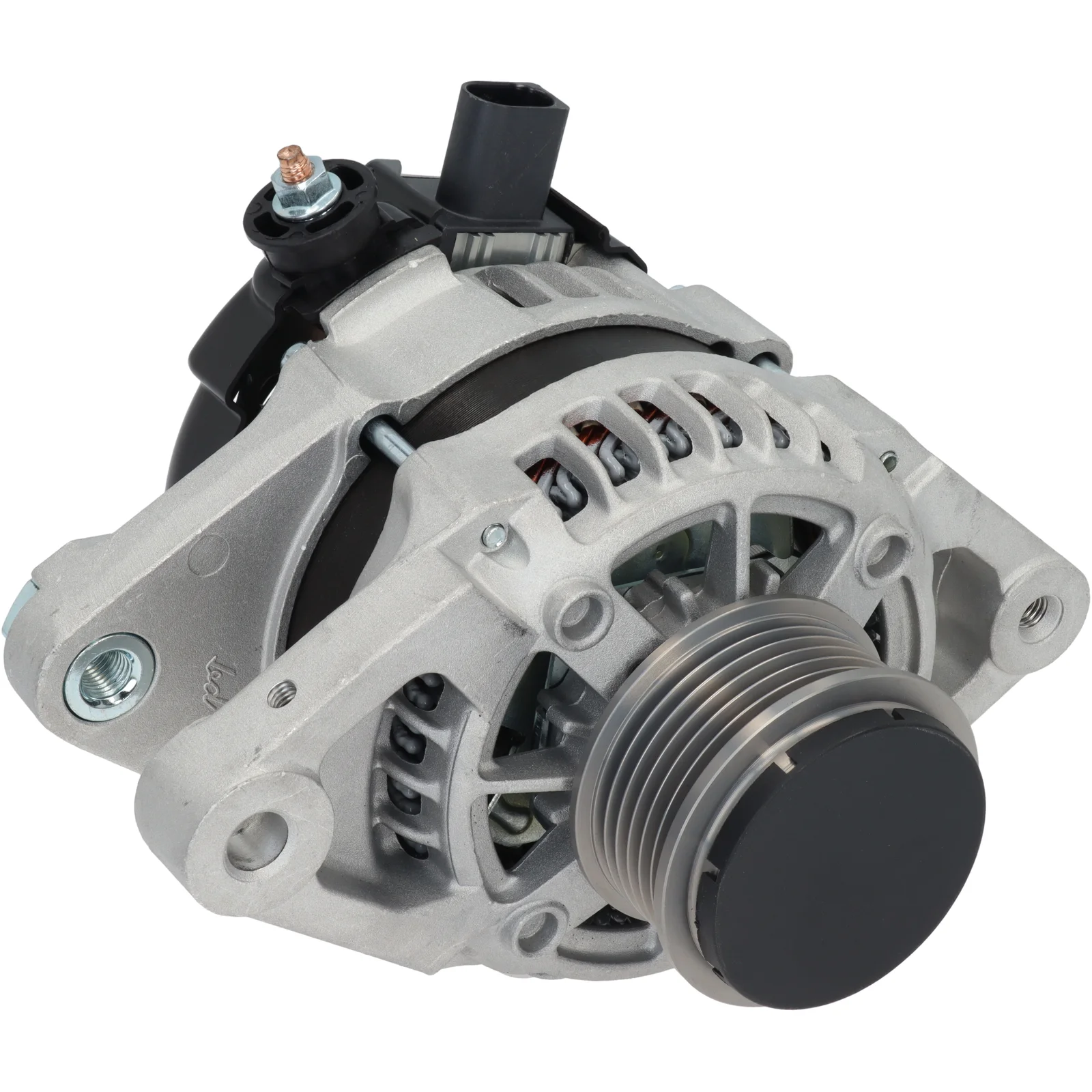

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 37.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 29.20
Width/holder arm: 19.00
Mount. bracket dist.: 37.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 59
Belt. adj. bracket hole 1: M8
Alternator pulley dia.: 60.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 81.50
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL181
Total length mm: 162.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    b000912080, F032116697, 1986A01483, 27060-0Q160, 104210-9820, 104210-9821

  • Normalised article numbler
    a6489s, b000912080, cal40547, dan1307, dra1457, f032116697, lra03969, 1986a01483, 40201, 270600q160, 287579, 443295, 444242, 555309, 12090902, 89216318, 225574080, 0986085250, 1042109820, 1042109821
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 29.20
    Width/holder arm: 19.00
    Mount. bracket dist.: 37.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 59
    Belt. adj. bracket hole 1: M8
    Alternator pulley dia.: 60.00
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 81.50
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL181
    Total length mm: 162.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      b000912080, F032116697, 1986A01483, 27060-0Q160, 104210-9820, 104210-9821

    • Normalised article numbler
      a6489s, b000912080, cal40547, dan1307, dra1457, f032116697, lra03969, 1986a01483, 40201, 270600q160, 287579, 443295, 444242, 555309, 12090902, 89216318, 225574080, 0986085250, 1042109820, 1042109821
