HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116705

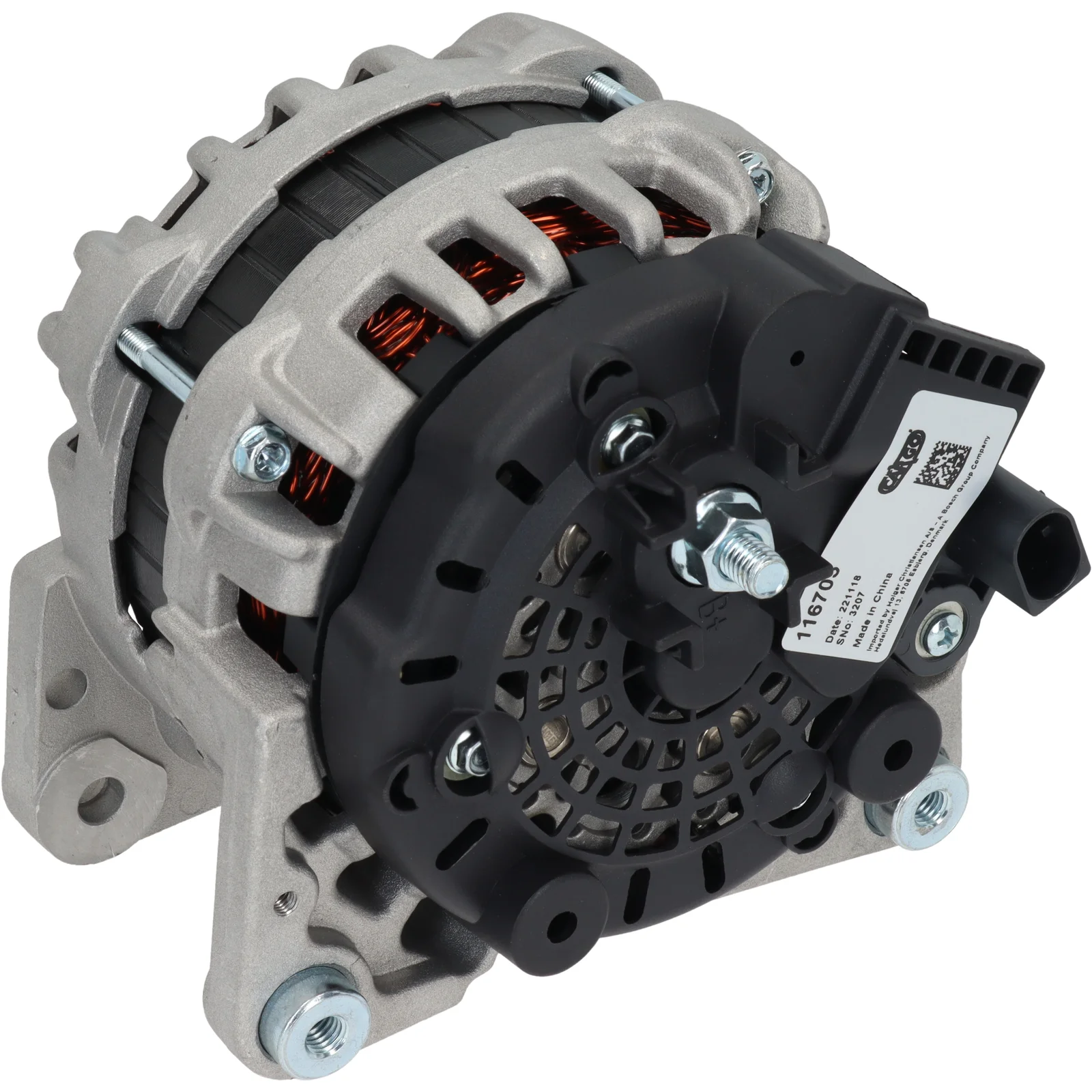

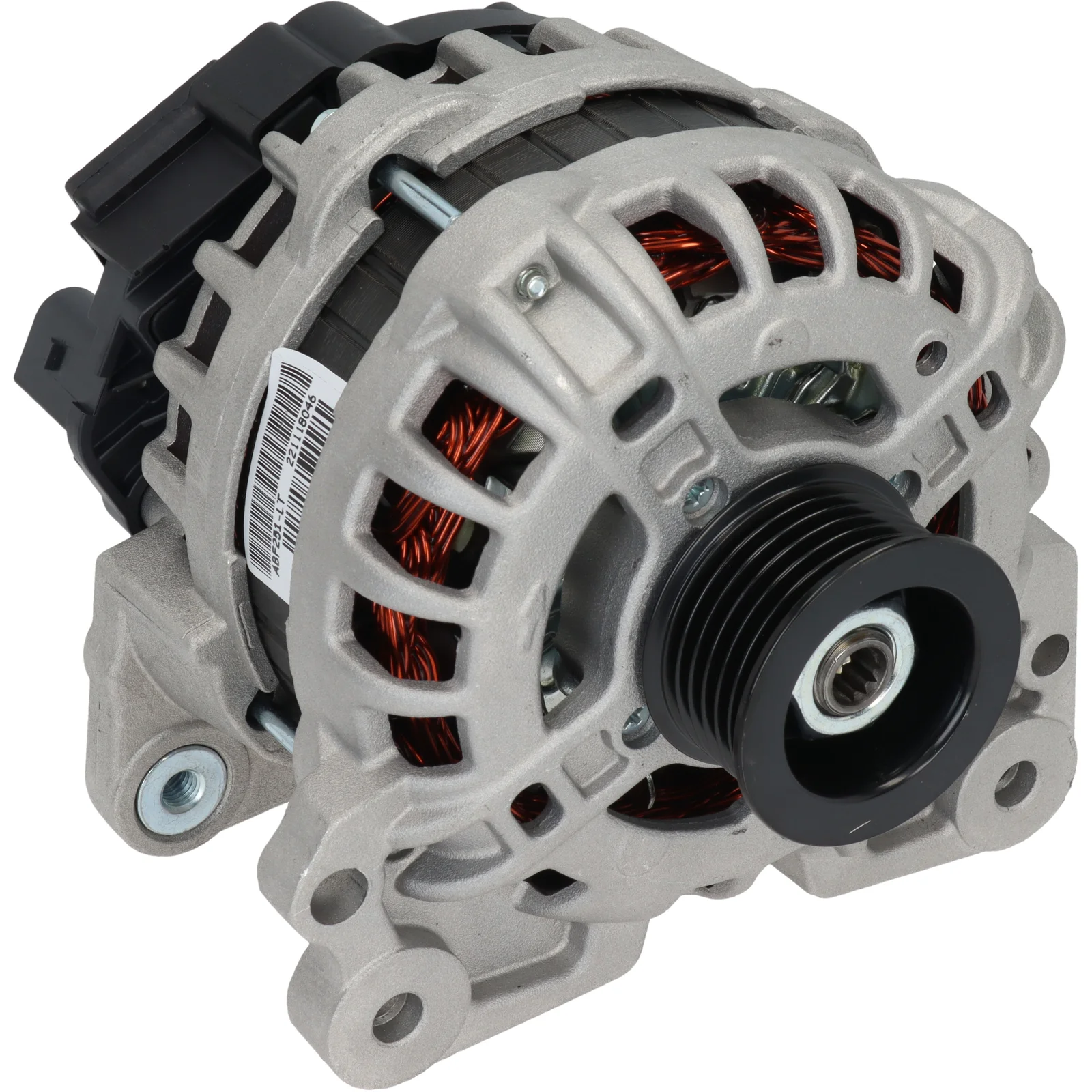

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 110, Rotation: CW, Mounting bracket distributor: 60.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Rotation: CW
Plug no.: PL181
Total length mm: 166.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL06Z7, F000BL06Z8, F032116705, 04C903023H, 04C903023HX

  • Normalised article numbler
    a0782s, cal10027, f000bl06z7, f000bl06z8, f032116705, lra04051, 04c903023h, 04c903023hx, 9071, 287660, 555023rib, 12090930, 32084760, 89215954, 445514110, 0986084760
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 30.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Rotation: CW
    Plug no.: PL181
    Total length mm: 166.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL06Z7, F000BL06Z8, F032116705, 04C903023H, 04C903023HX

    • Normalised article numbler
      a0782s, cal10027, f000bl06z7, f000bl06z8, f032116705, lra04051, 04c903023h, 04c903023hx, 9071, 287660, 555023rib, 12090930, 32084760, 89215954, 445514110, 0986084760
