HC-Cargo Alternator

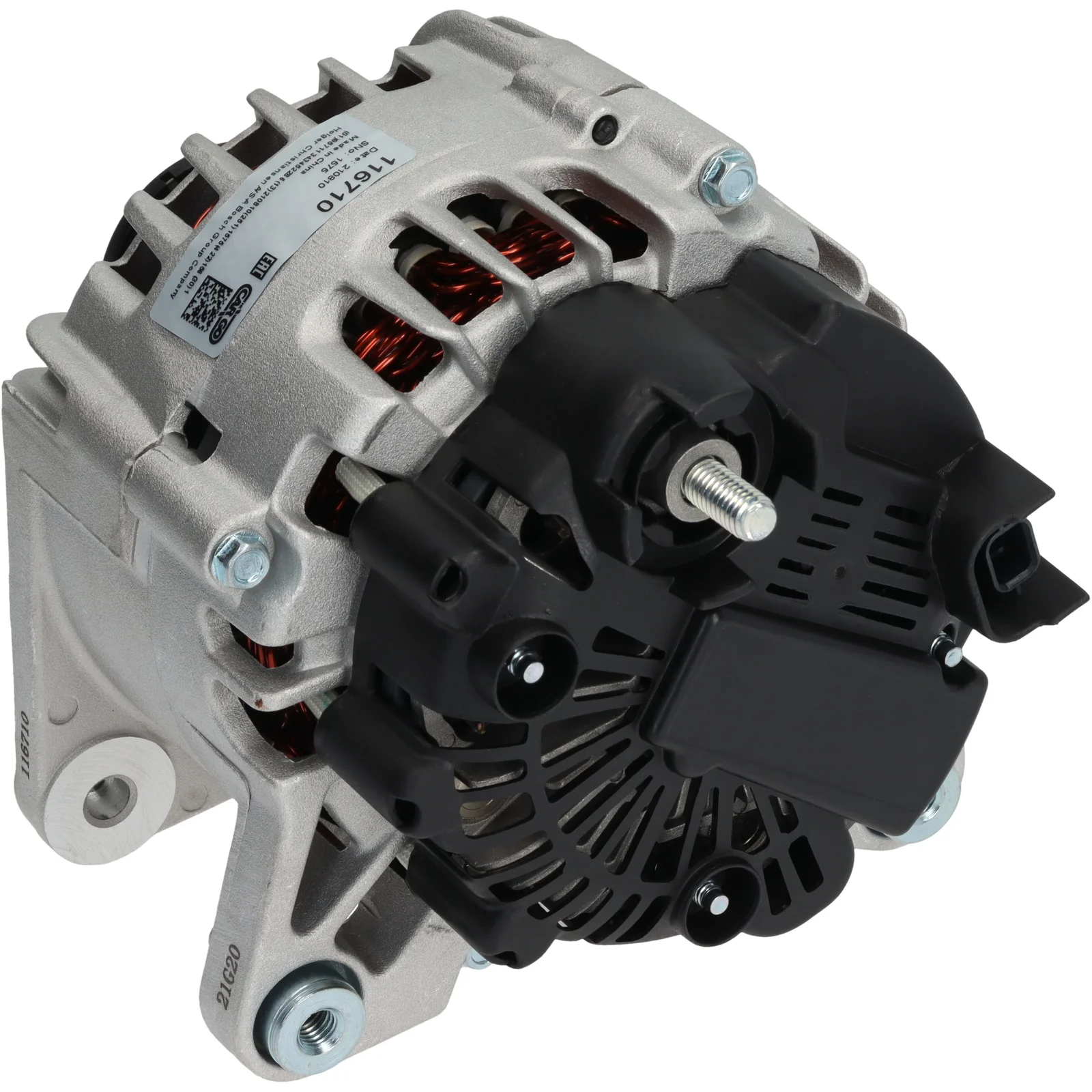

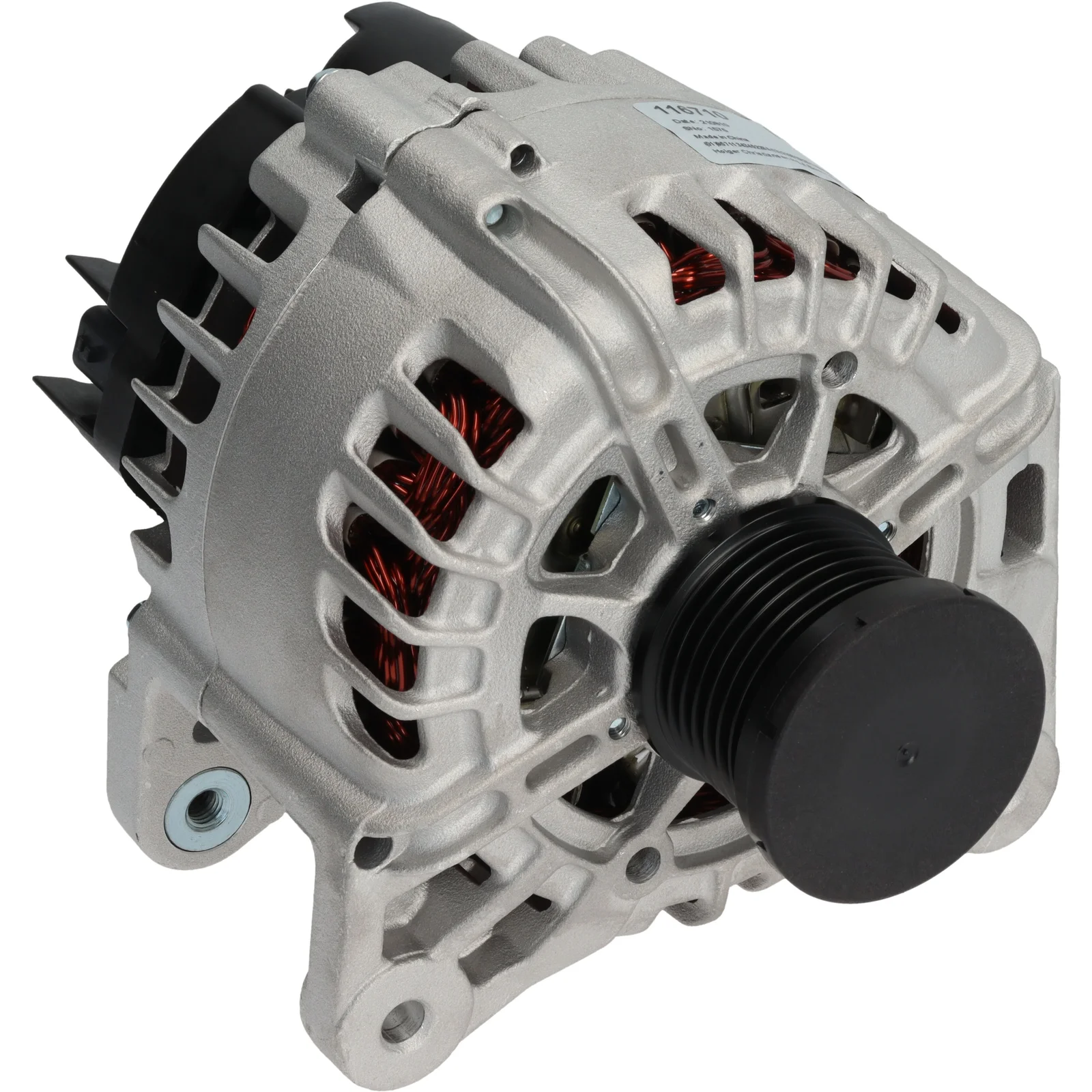

HC-Cargo Alternator
Article no.: F032116710

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 14V - 150A, 7 grooves

Voltage: 14
Amperage: 150
Pulley diameter: 33.00
Width/holder arm: 14.00
Mounting bracket diameter: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 48.50
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 50
Rotation: CLOCKWISE
Plug number: PL131
Total length mm: 194.00
Terminal type: COMMON
ID code: 56
Communication: BSS
Pulley: SP/FW
Fan: IF
Remarks: This Alternator has a COMMON terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116710, TG15C142, 116710, 2606190A, 8200854119

  • Normalised article numbler
    a3224valeo, f032116710, tg15c142, 116710, 200212, 2606190a, 0986085680, 8200854119
  • Description
    HC-Cargo Alternator 14V - 150A, 7 grooves

    Voltage: 14
    Amperage: 150
    Pulley diameter: 33.00
    Width/holder arm: 14.00
    Mounting bracket diameter: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 48.50
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 50
    Rotation: CLOCKWISE
    Plug number: PL131
    Total length mm: 194.00
    Terminal type: COMMON
    ID code: 56
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Remarks: This Alternator has a COMMON terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116710, TG15C142, 116710, 2606190A, 8200854119

    • Normalised article numbler
      a3224valeo, f032116710, tg15c142, 116710, 200212, 2606190a, 0986085680, 8200854119
