HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116716

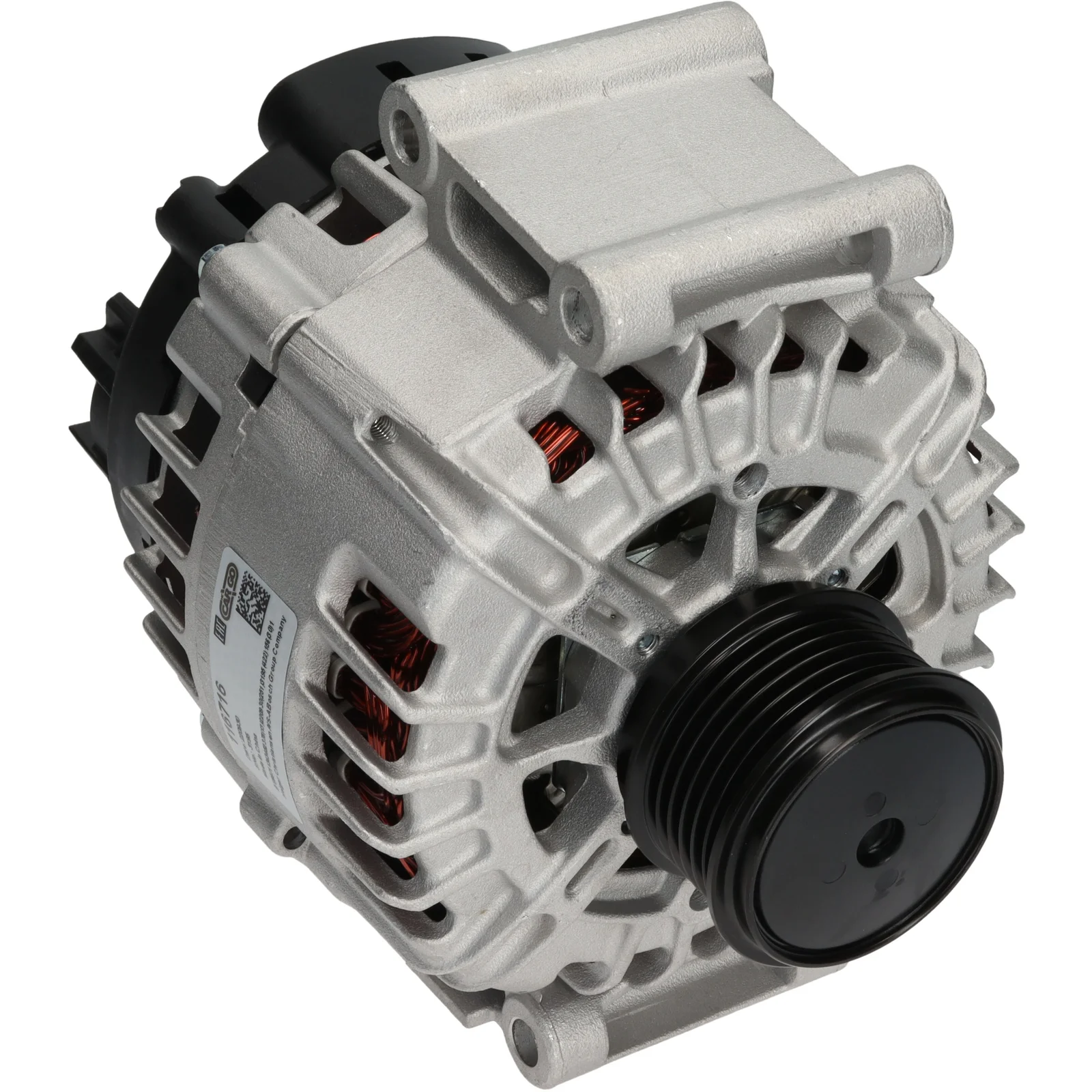

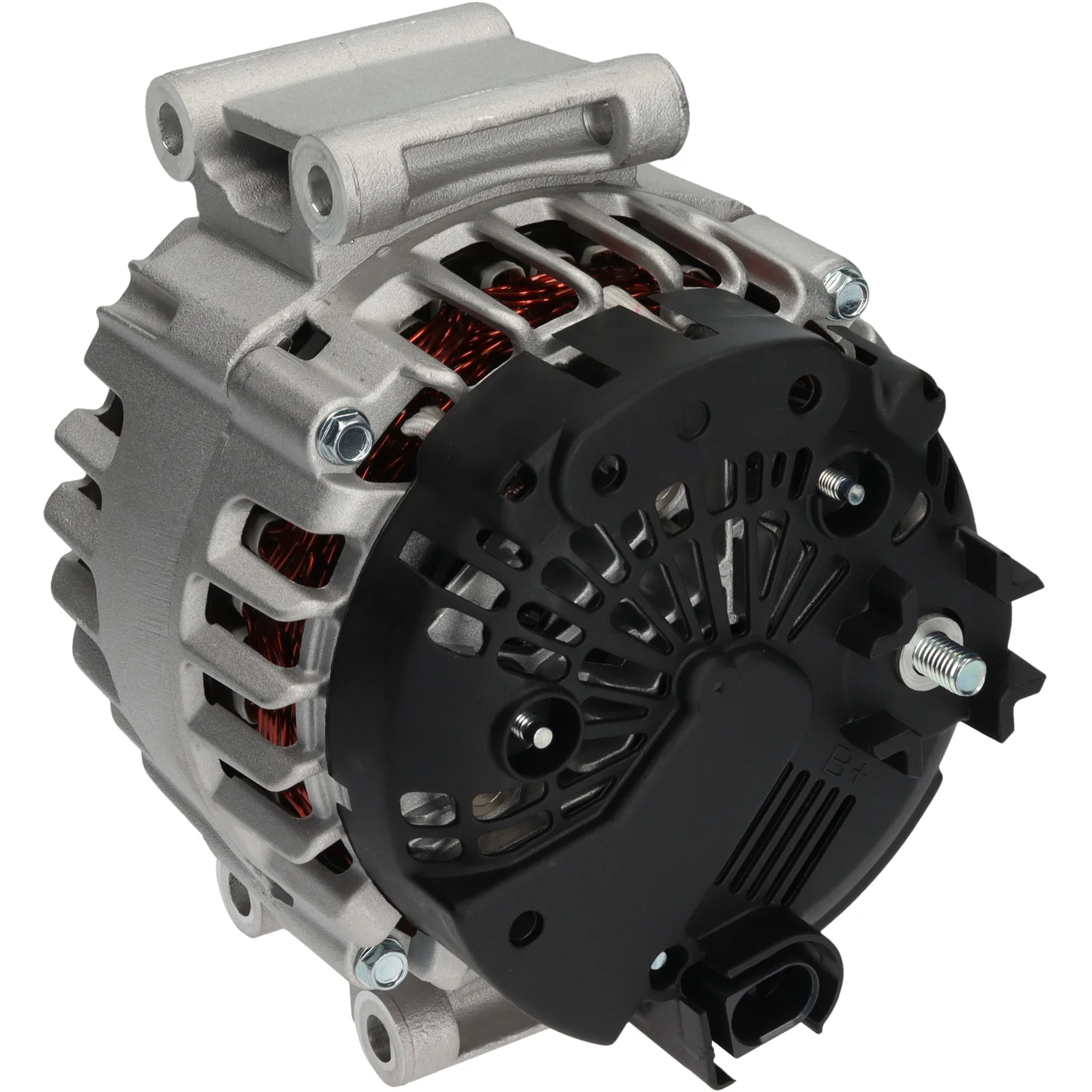

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 140, Rotation: CW, Mounting bracket distance: 56.00

Description

Voltage: 14
Amp: 140
Pulley: Drevkugg. dist.: 29.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL181
Total length mm: 191.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.
