HC-Cargo Alternator

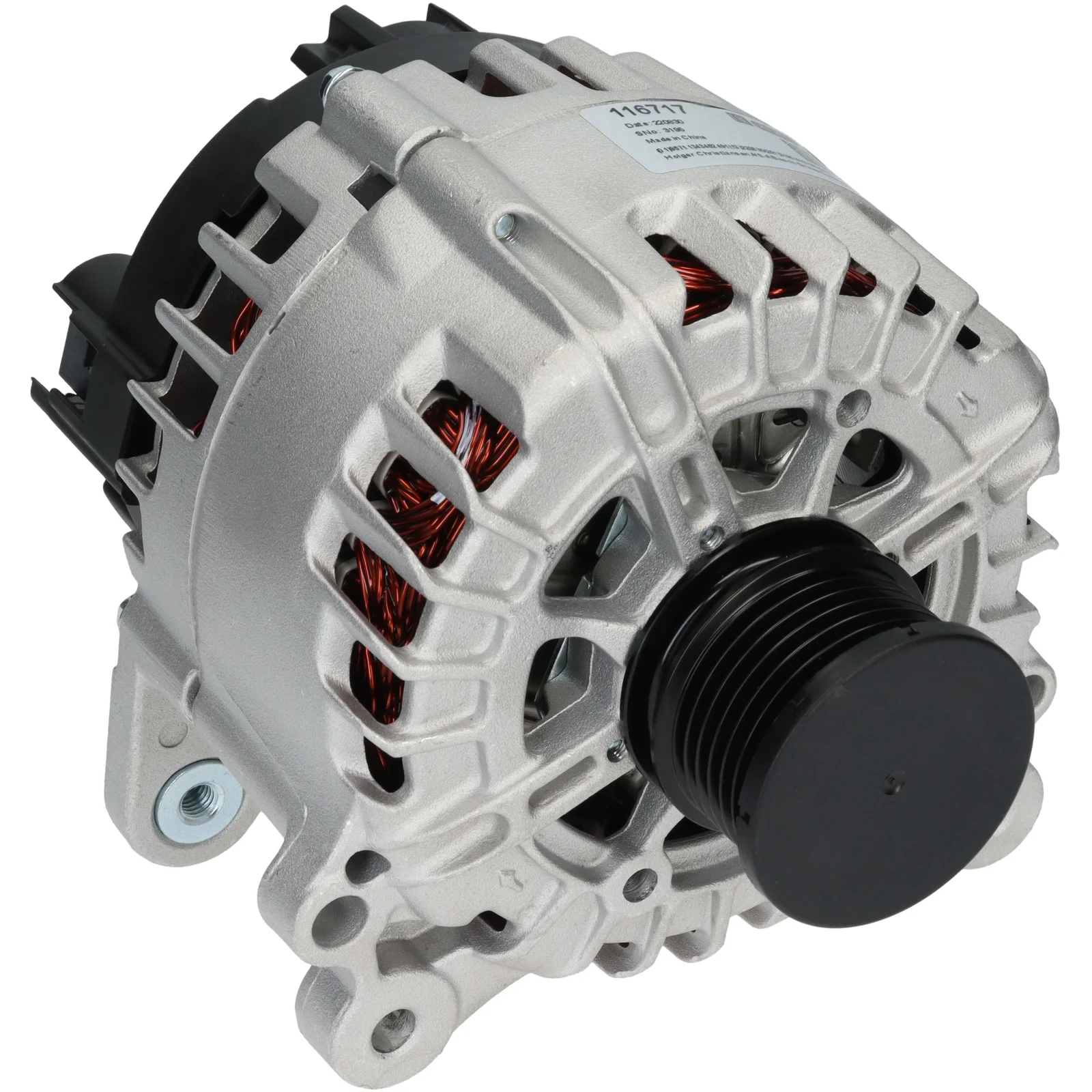

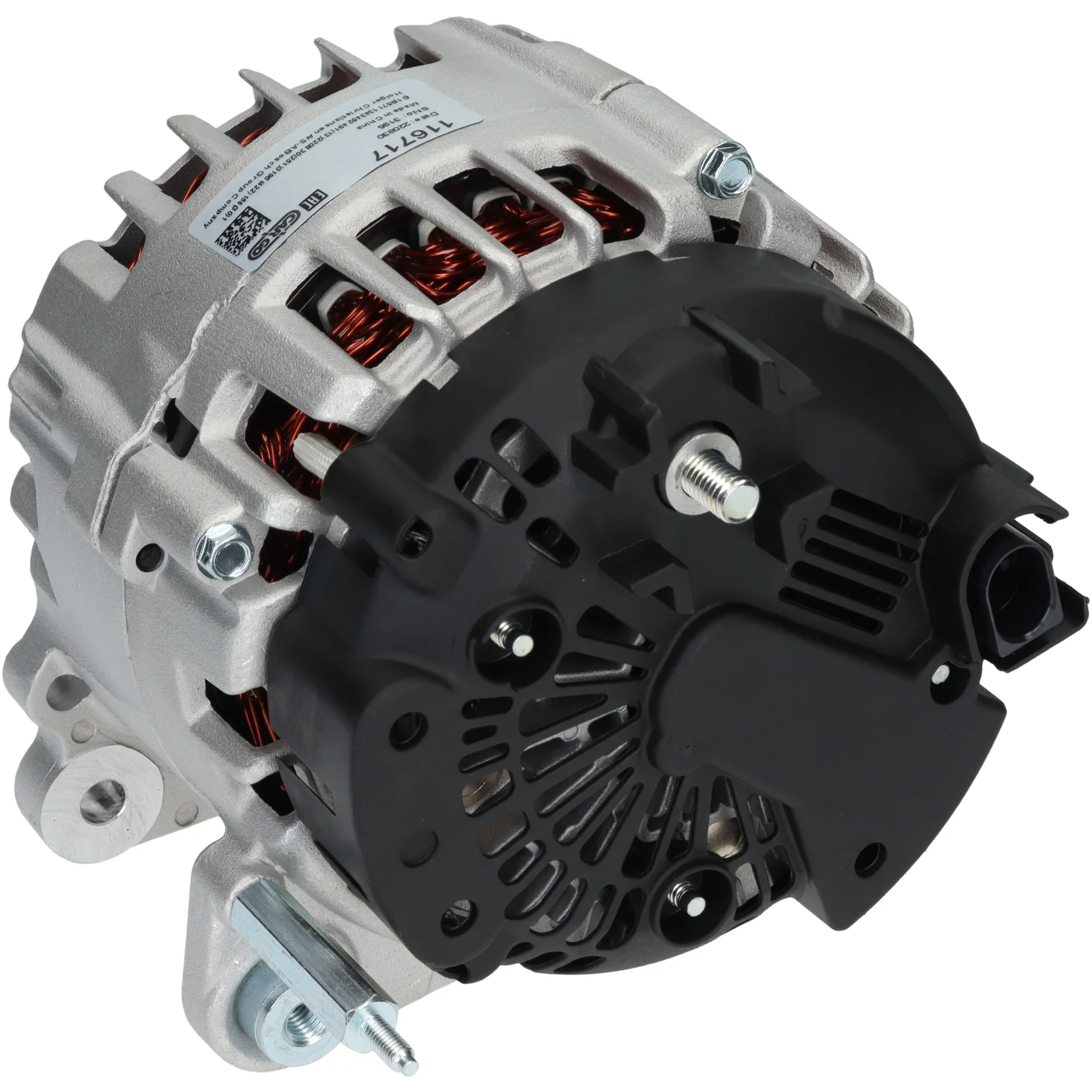

HC-Cargo Alternator
Article no.: F032116717

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

HC-Cargo Alternator 14V - 140A, 6grooves

Voltage: 14
Amps: 140
Pulley diameter: 40.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 8
Rotation: CW
Plug no.: PL181
Total length mm: 195.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116717, TG14C067, 03G 903 016B, 03G 903 016E, 03G903016B, 03G903016BX, 03G903016E, 03L 903 024T, 03L903024T, 03L903024TX, 116717

  • Normalised article numbler
    dra1297, f032116717, tg14c067, 03g903016b, 03g903016bx, 03g903016e, 03l903024t, 03l903024tx, 116717, 12090600, 305944140
  • Description
    HC-Cargo Alternator 14V - 140A, 6grooves

    Voltage: 14
    Amps: 140
    Pulley diameter: 40.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 8
    Rotation: CW
    Plug no.: PL181
    Total length mm: 195.00
    Terminal type: COM
    ID Code: 25
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116717, TG14C067, 03G 903 016B, 03G 903 016E, 03G903016B, 03G903016BX, 03G903016E, 03L 903 024T, 03L903024T, 03L903024TX, 116717

    • Normalised article numbler
      dra1297, f032116717, tg14c067, 03g903016b, 03g903016bx, 03g903016e, 03l903024t, 03l903024tx, 116717, 12090600, 305944140
