HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116718

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

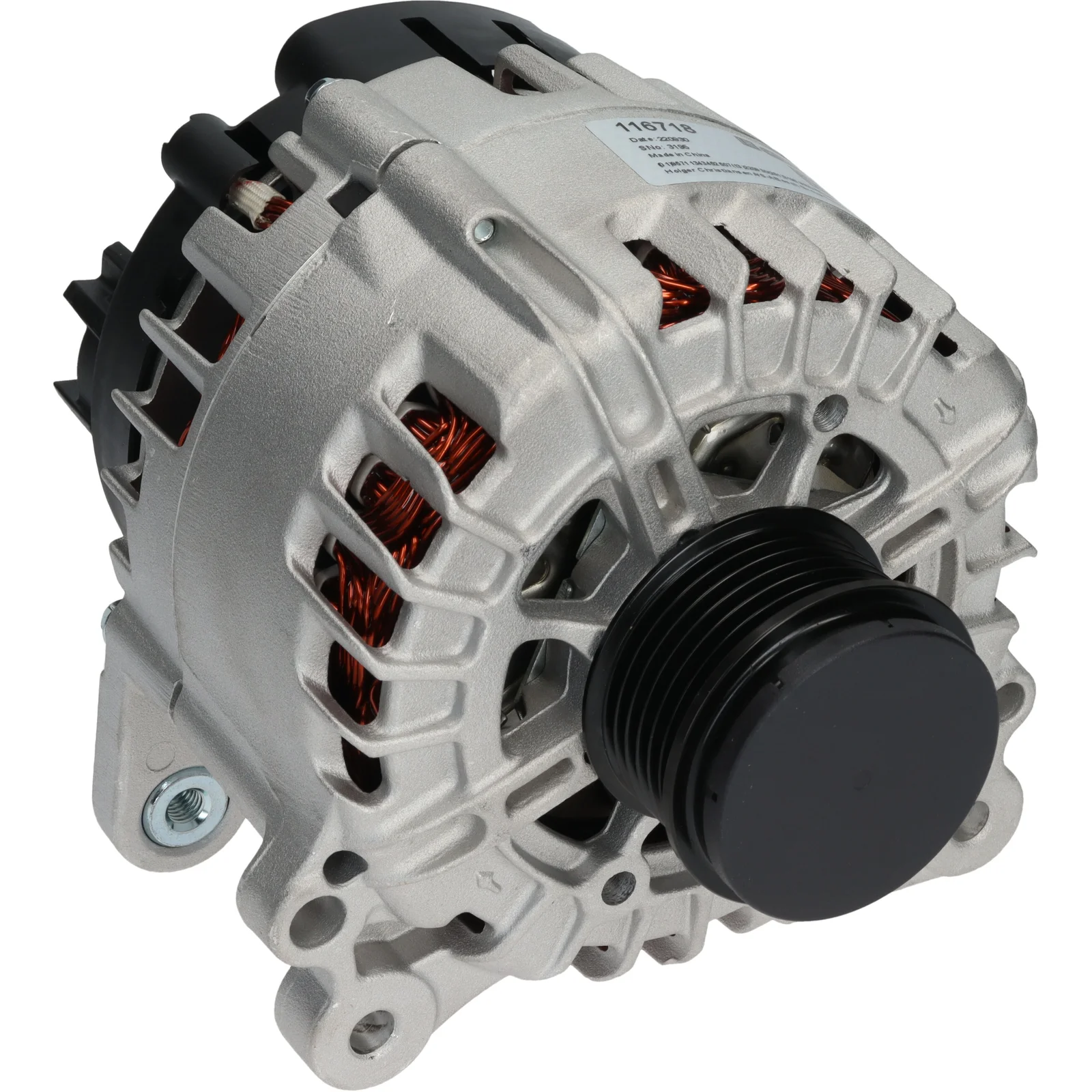

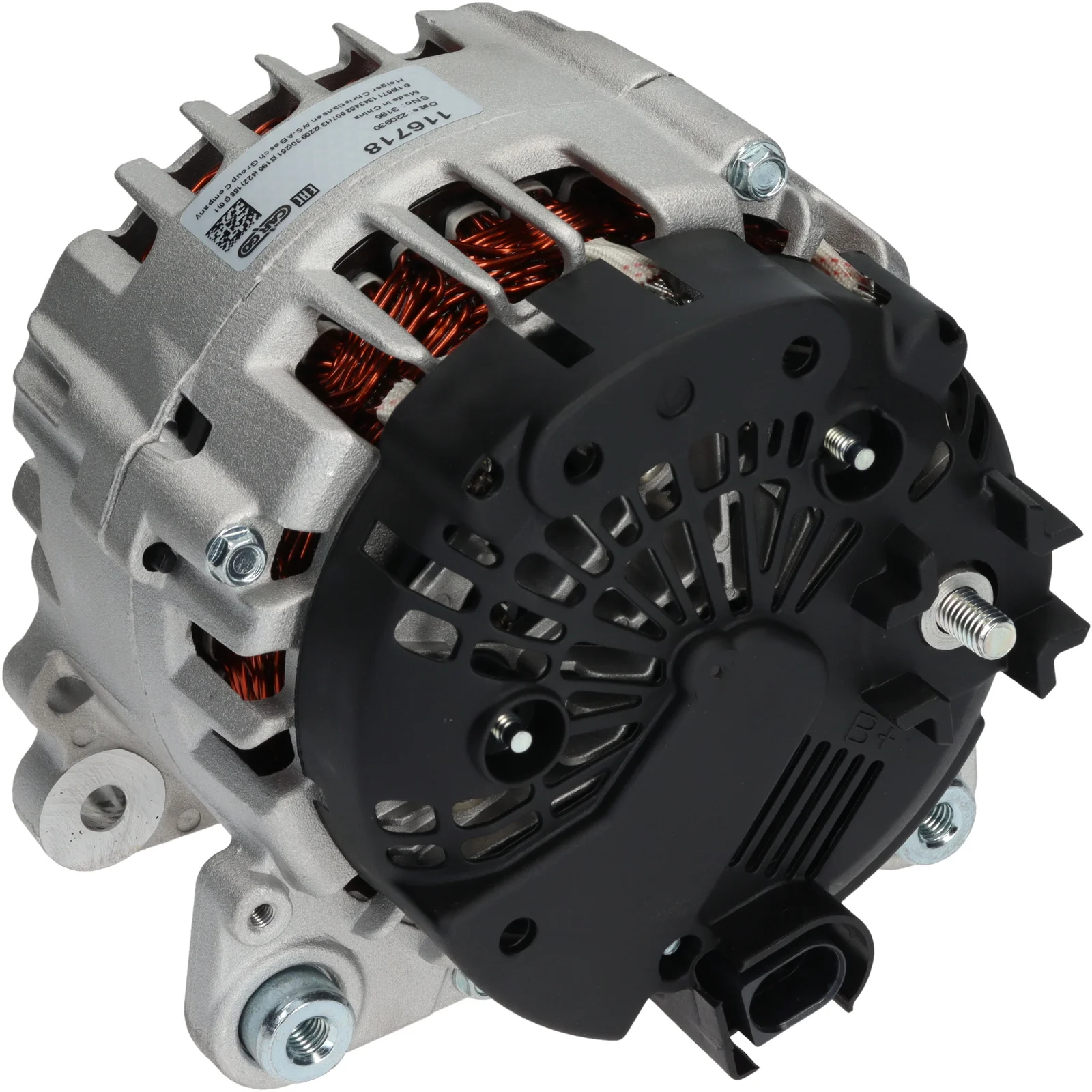

HC-Cargo Alternator 14V - 180A, 6 grooves

Voltage: 14
Amp: 180
Pulley diameter: 30.00
Width/holder arm: 14.00
Mounting bracket diameter: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 6
Rotation: CW
Plug no.: PL181
Total length mm: 187.00
Terminal type: COM
ID Code: 73
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116718, FG18T163, FG18T180, 059 903 023S, 059 903 023T, 116718, 2714247, 2714247B, 2714247C, 059903023S, 059903023T, 059903023TX

  • Normalised article numbler
    cal15026, dra2057, f032116718, fg18t163, fg18t180, lra04157, 20829os, 40193, 116718, 287766, 440826, 443018, 554567riv, 2714247, 2714247b, 2714247c, 12090830, 12090831, 059903023s, 059903023t, 059903023tx, 89215510, 305308180, 305974180
  • Description
    HC-Cargo Alternator 14V - 180A, 6 grooves

    Voltage: 14
    Amp: 180
    Pulley diameter: 30.00
    Width/holder arm: 14.00
    Mounting bracket diameter: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 6
    Rotation: CW
    Plug no.: PL181
    Total length mm: 187.00
    Terminal type: COM
    ID Code: 73
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116718, FG18T163, FG18T180, 059 903 023S, 059 903 023T, 116718, 2714247, 2714247B, 2714247C, 059903023S, 059903023T, 059903023TX

    • Normalised article numbler
      cal15026, dra2057, f032116718, fg18t163, fg18t180, lra04157, 20829os, 40193, 116718, 287766, 440826, 443018, 554567riv, 2714247, 2714247b, 2714247c, 12090830, 12090831, 059903023s, 059903023t, 059903023tx, 89215510, 305308180, 305974180
