HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116719

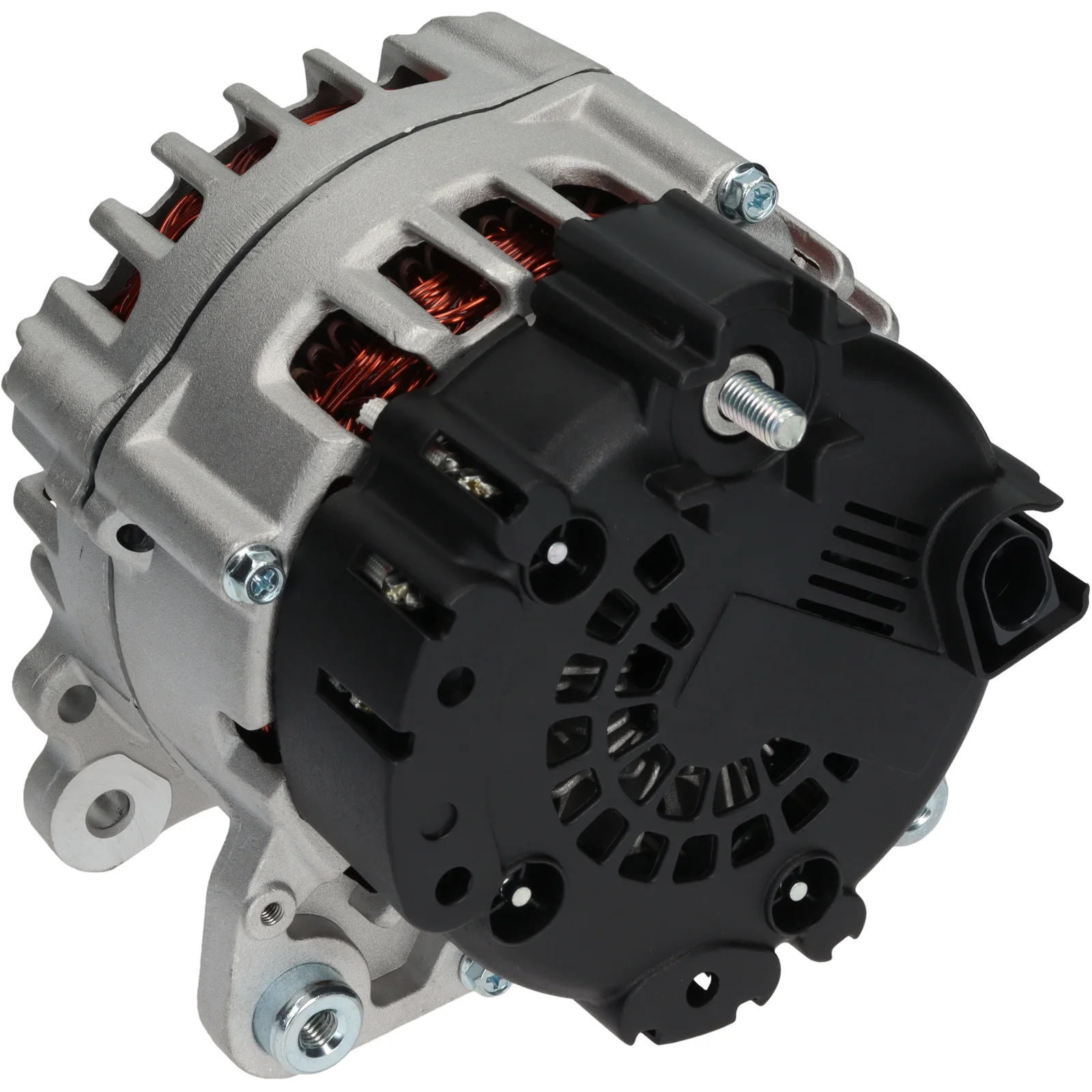

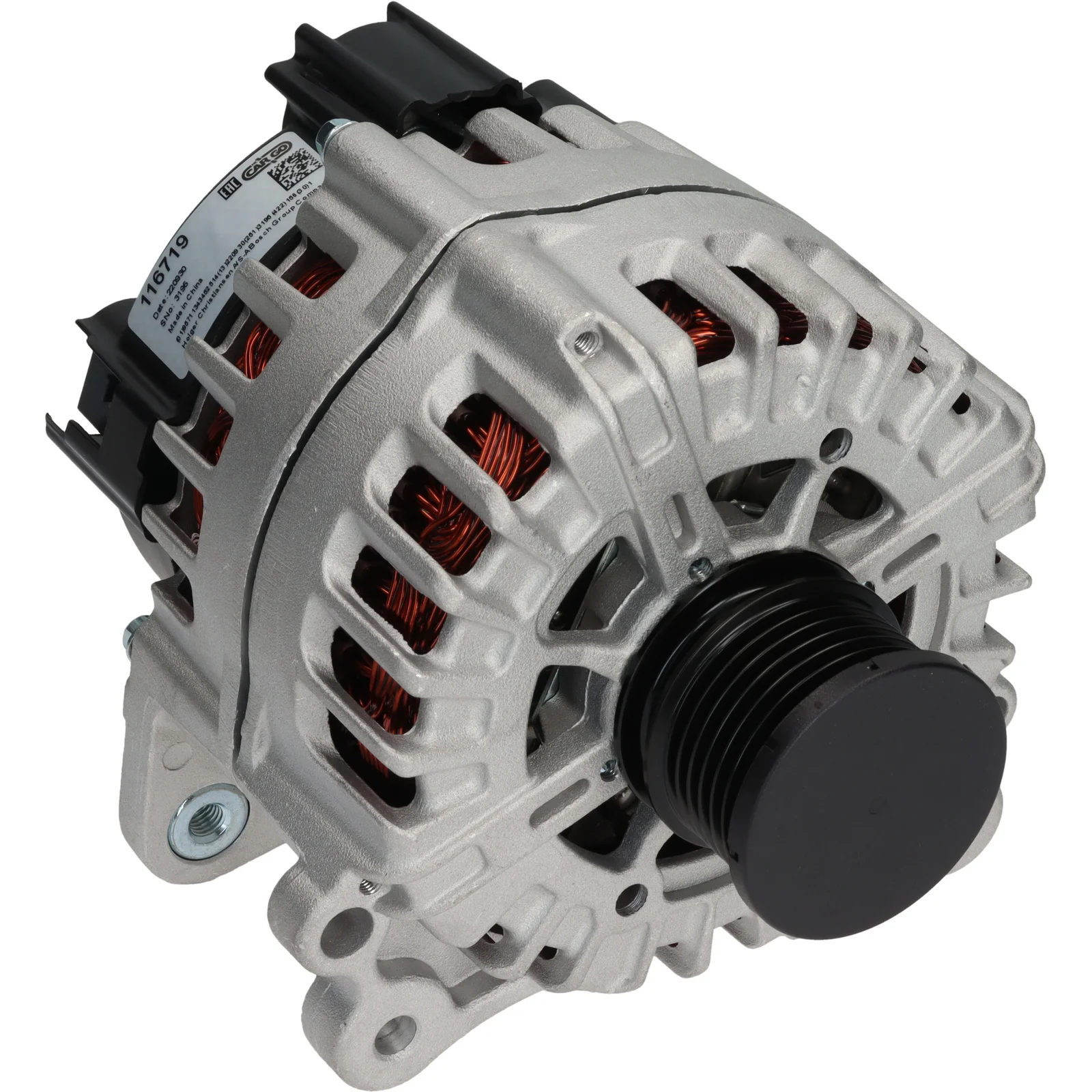

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 60.50

Description

Voltage: 14
Amp: 180
Pulley drive: 39.50
Width/holder arm: 14.00
Mounting bracket distance: 60.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL181
Total length mm: 190.00
Terminal type: COM
ID Code: 89
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116719, FG20S022, FGN20S022, 04L903017A, 04L903017AX, 0125811180

  • Normalised article numbler
    a3389, a3389pr, a3389valeo, f032116719, fg20s022, fgn20s022, lra04010, 04l903017a, 04l903017ax, 9162, 287620, 439888, 440630, 555024riv, 12090867, 32000006, 89216263, 0125811180, 205589180
  • Description
    Voltage: 14
    Amp: 180
    Pulley drive: 39.50
    Width/holder arm: 14.00
    Mounting bracket distance: 60.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL181
    Total length mm: 190.00
    Terminal type: COM
    ID Code: 89
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116719, FG20S022, FGN20S022, 04L903017A, 04L903017AX, 0125811180

    • Normalised article numbler
      a3389, a3389pr, a3389valeo, f032116719, fg20s022, fgn20s022, lra04010, 04l903017a, 04l903017ax, 9162, 287620, 439888, 440630, 555024riv, 12090867, 32000006, 89216263, 0125811180, 205589180
