HC-Cargo Alternator

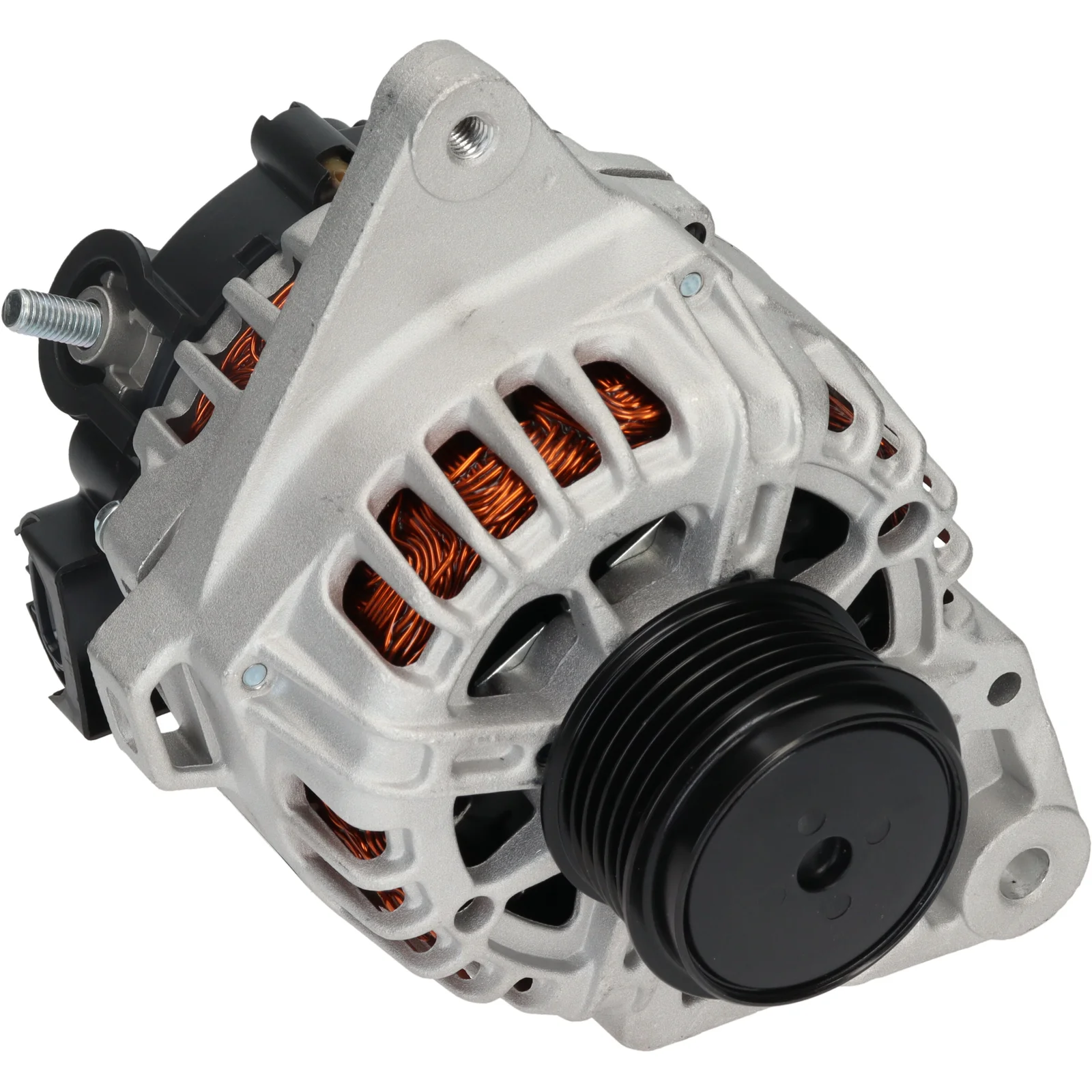

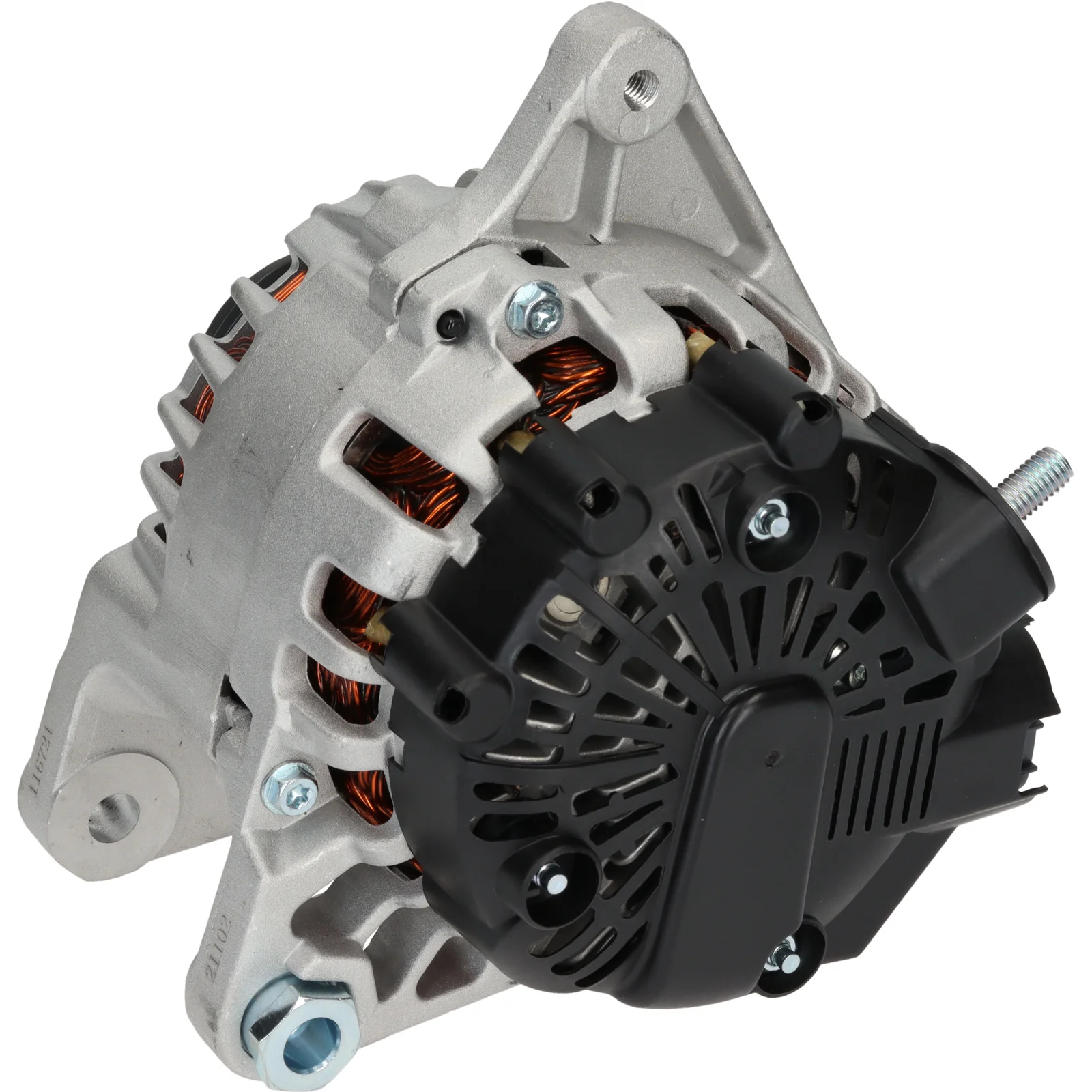

HC-Cargo Alternator
Article no.: F032116721

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distance: 58.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 21.00
Width/holder arm: 14.50
Mount. bracket dist.: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL176
Total length mm: 177.00
Lamp type: Inactive
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116721, 37300-2E300, 2610819, 52092133

  • Normalised article numbler
    a3553s, cal32181, dra1191, f032116721, 0986ur6086, 11611r, 40208, 209005, 209005a, 287559, 373002e300, 443238, 554759riv, 2610819, 12061200, 52092133, 89216361, 255520120, 0986085190
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 21.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 58.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL176
    Total length mm: 177.00
    Lamp type: Inactive
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116721, 37300-2E300, 2610819, 52092133

    • Normalised article numbler
      a3553s, cal32181, dra1191, f032116721, 0986ur6086, 11611r, 40208, 209005, 209005a, 287559, 373002e300, 443238, 554759riv, 2610819, 12061200, 52092133, 89216361, 255520120, 0986085190
