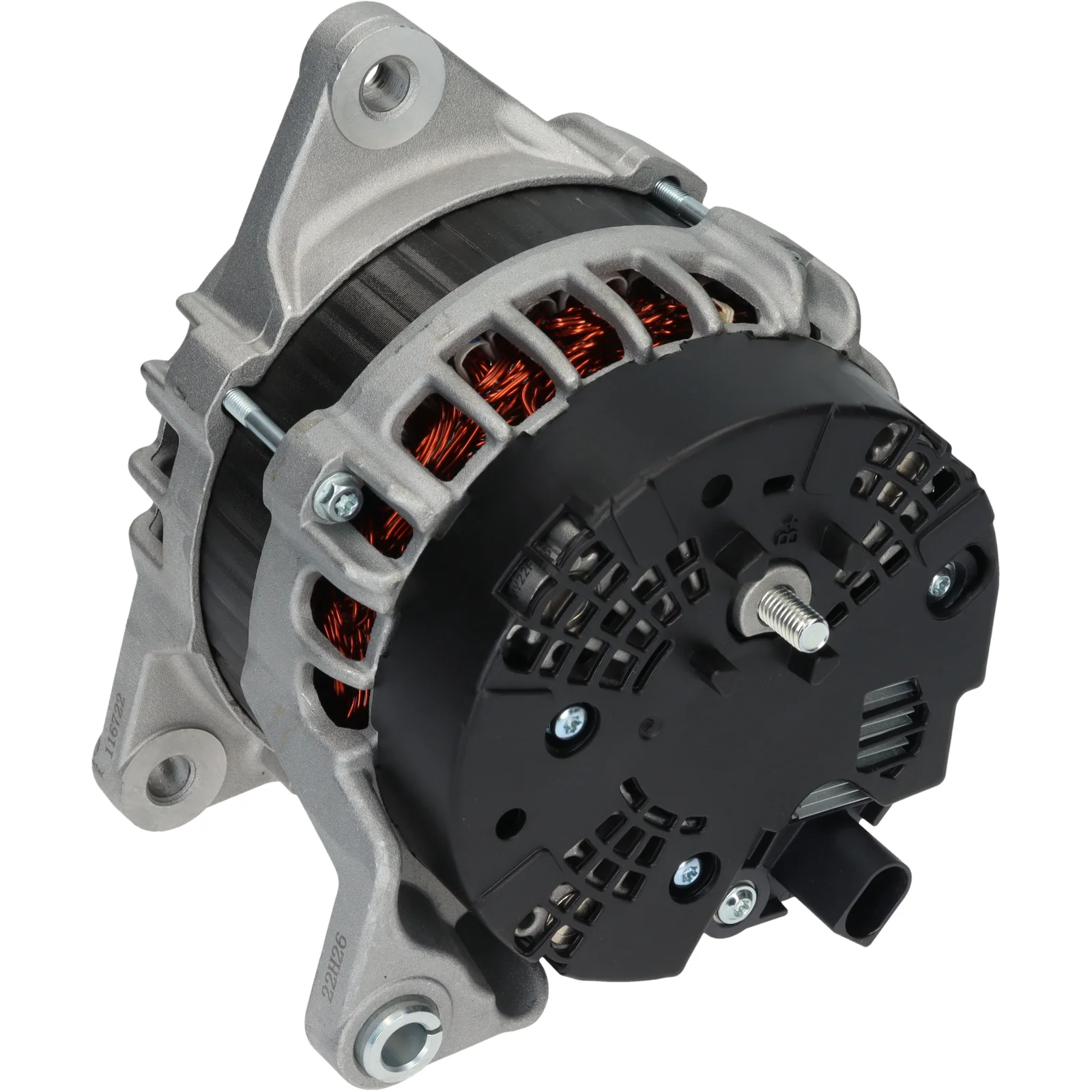

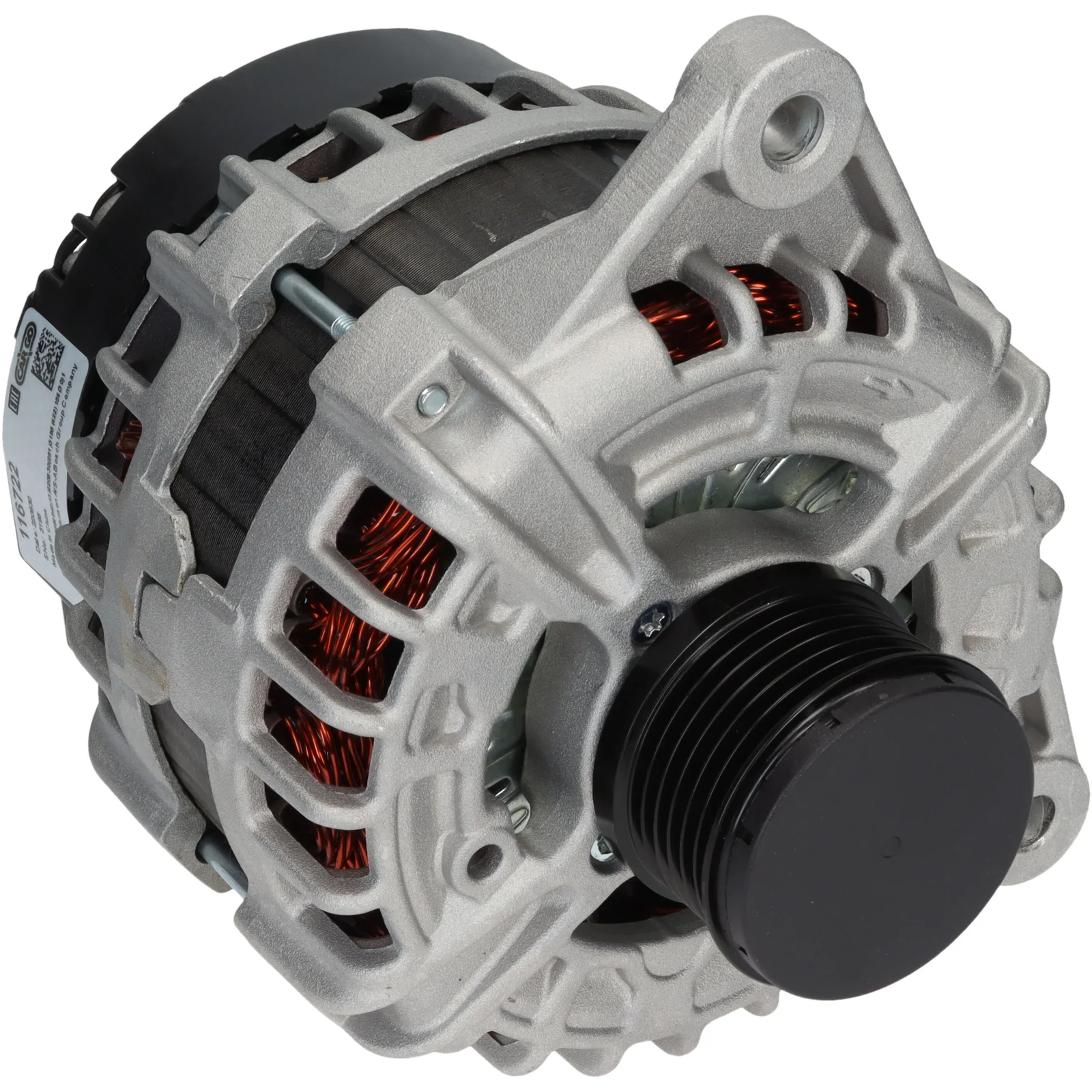

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116722

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 210, Rotation: CW, Mounting bracket distributor: 80.00

Description

HC-Cargo Alternator 12V - 210A, 6-pole, FLD, (LIN) ID code 24

Voltage: 14
Amperes: 210
Pulley distance: 38.00
Width/holder arm: 14.00
Mounting bracket distance: 80.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 10
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 94.00
Radius 2: 95.50
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug number: PL174
Total length mm: 188.00
Terminal type: COM
ID Code: 24
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116722, 0125 811 039, 0125 811 040, 0125 811 135, 0125 811 136, 0986 085 510, 1986 A01 407, 1986 A01 504, 1986A01407, 1986A01504, 116722, 0125811039, 0125811040, 0125811135, 0125811136, 5801580941, 5802266118

  • Normalised article numbler
    a0836s, cal10023, f032116722, lra04546, 1986a01407, 1986a01504, 116722, 288655, 443401, 444282, 555138rib, 32085510, 0125811039, 0125811040, 0125811135, 0125811136, 505905210, 0986085510, 5801580941, 5802266118
  • Description
    HC-Cargo Alternator 12V - 210A, 6-pole, FLD, (LIN) ID code 24

    Voltage: 14
    Amperes: 210
    Pulley distance: 38.00
    Width/holder arm: 14.00
    Mounting bracket distance: 80.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 10
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 94.00
    Radius 2: 95.50
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug number: PL174
    Total length mm: 188.00
    Terminal type: COM
    ID Code: 24
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116722, 0125 811 039, 0125 811 040, 0125 811 135, 0125 811 136, 0986 085 510, 1986 A01 407, 1986 A01 504, 1986A01407, 1986A01504, 116722, 0125811039, 0125811040, 0125811135, 0125811136, 5801580941, 5802266118

    • Normalised article numbler
      a0836s, cal10023, f032116722, lra04546, 1986a01407, 1986a01504, 116722, 288655, 443401, 444282, 555138rib, 32085510, 0125811039, 0125811040, 0125811135, 0125811136, 505905210, 0986085510, 5801580941, 5802266118
