HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116724

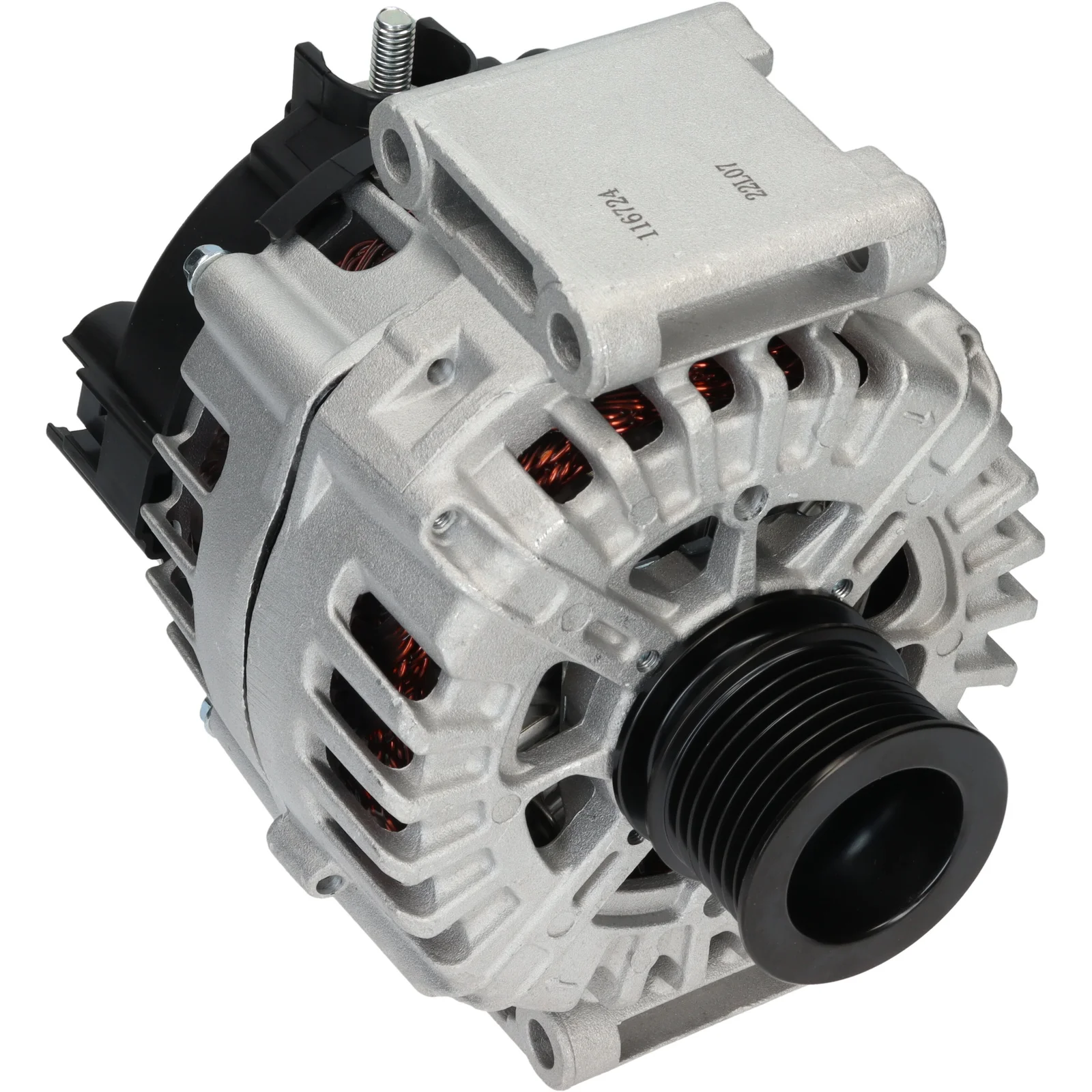

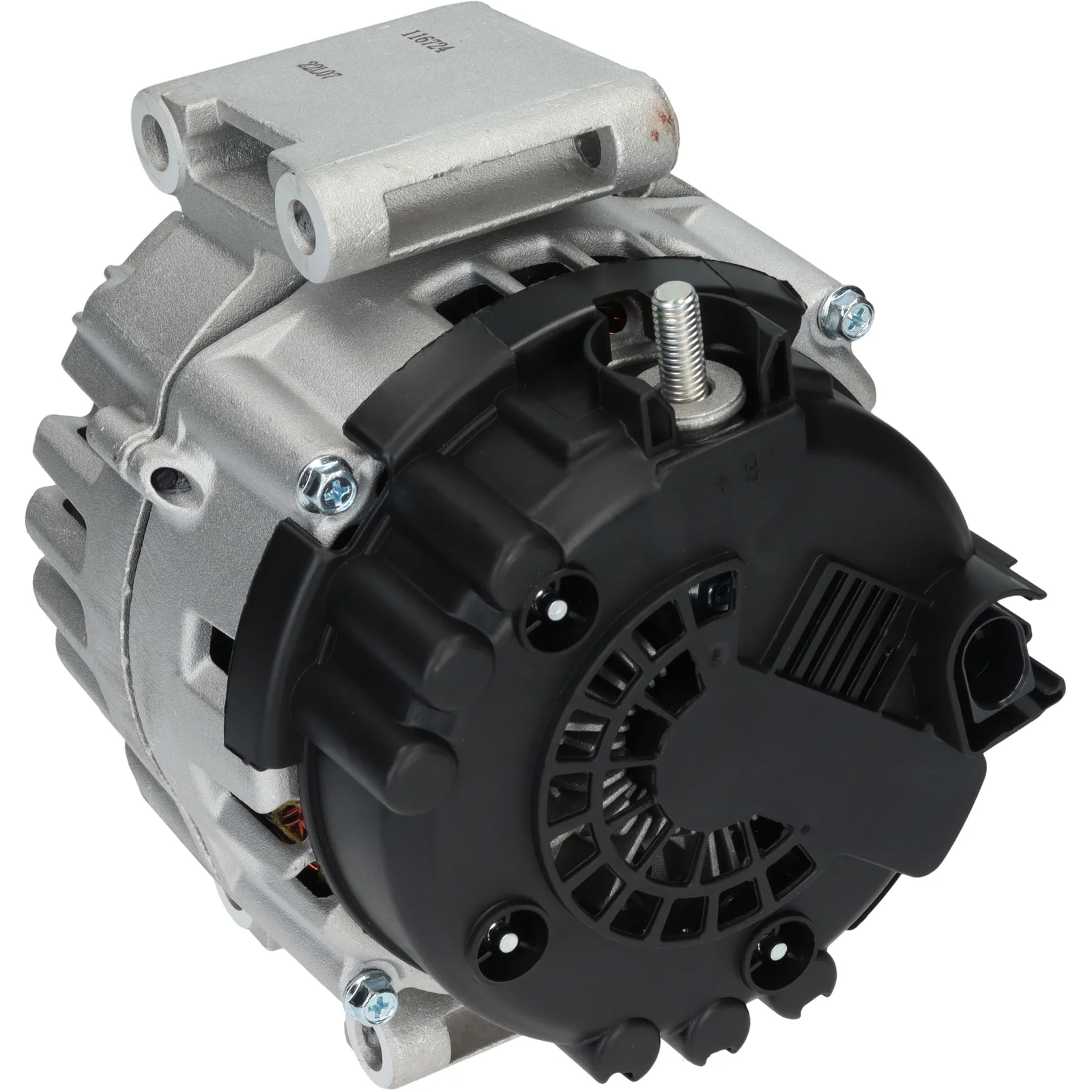

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 250, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14 Amp: 250 Pulley dist.: 31.70 Width/holder arm: 70.00 Mount. bracket dist.: 56.00 Bracket hole: 9.00 Belt. adj. bracket hole 1: 9.20 Belt. adj. bracket hole 2: 8.50 Pulley dia.: 50.00 Grooves/pulley: 7 Radius: 81.50 Radius 2: 81.50 B+: M8 Position/B+ in min.: 30 Rotation: CW Plug no.: PL181 Total length mm: 187.00 Terminal type: COM ID Code: 89 Communication: LIN Pulley: SP Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0009060903, A0009065307, CG25S035, F032116724, 0009065307

  • Normalised article numbler
    a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250
  • Description
    Voltage: 14 Amp: 250 Pulley dist.: 31.70 Width/holder arm: 70.00 Mount. bracket dist.: 56.00 Bracket hole: 9.00 Belt. adj. bracket hole 1: 9.20 Belt. adj. bracket hole 2: 8.50 Pulley dia.: 50.00 Grooves/pulley: 7 Radius: 81.50 Radius 2: 81.50 B+: M8 Position/B+ in min.: 30 Rotation: CW Plug no.: PL181 Total length mm: 187.00 Terminal type: COM ID Code: 89 Communication: LIN Pulley: SP Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0009060903, A0009065307, CG25S035, F032116724, 0009065307

    • Normalised article numbler
      a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250
