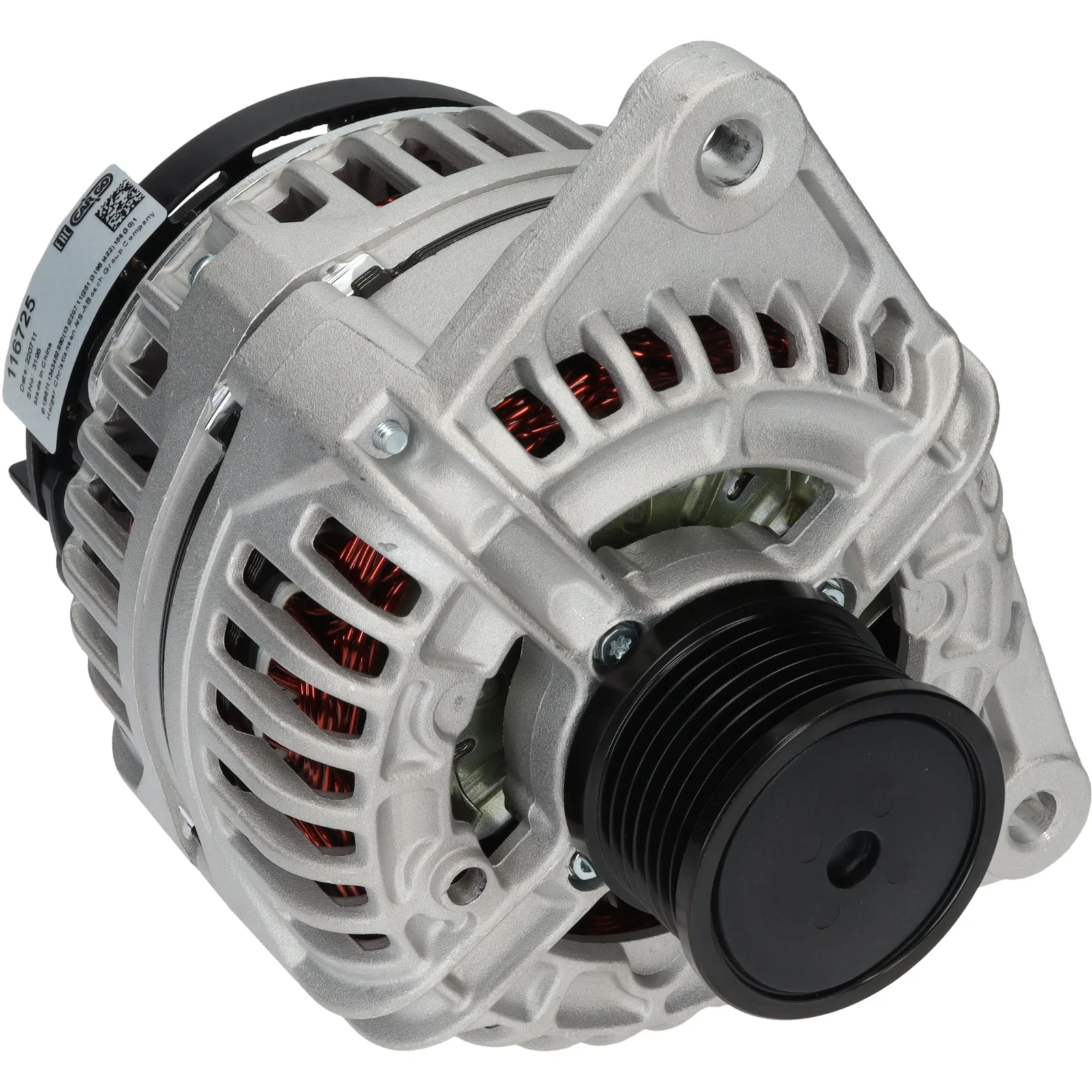

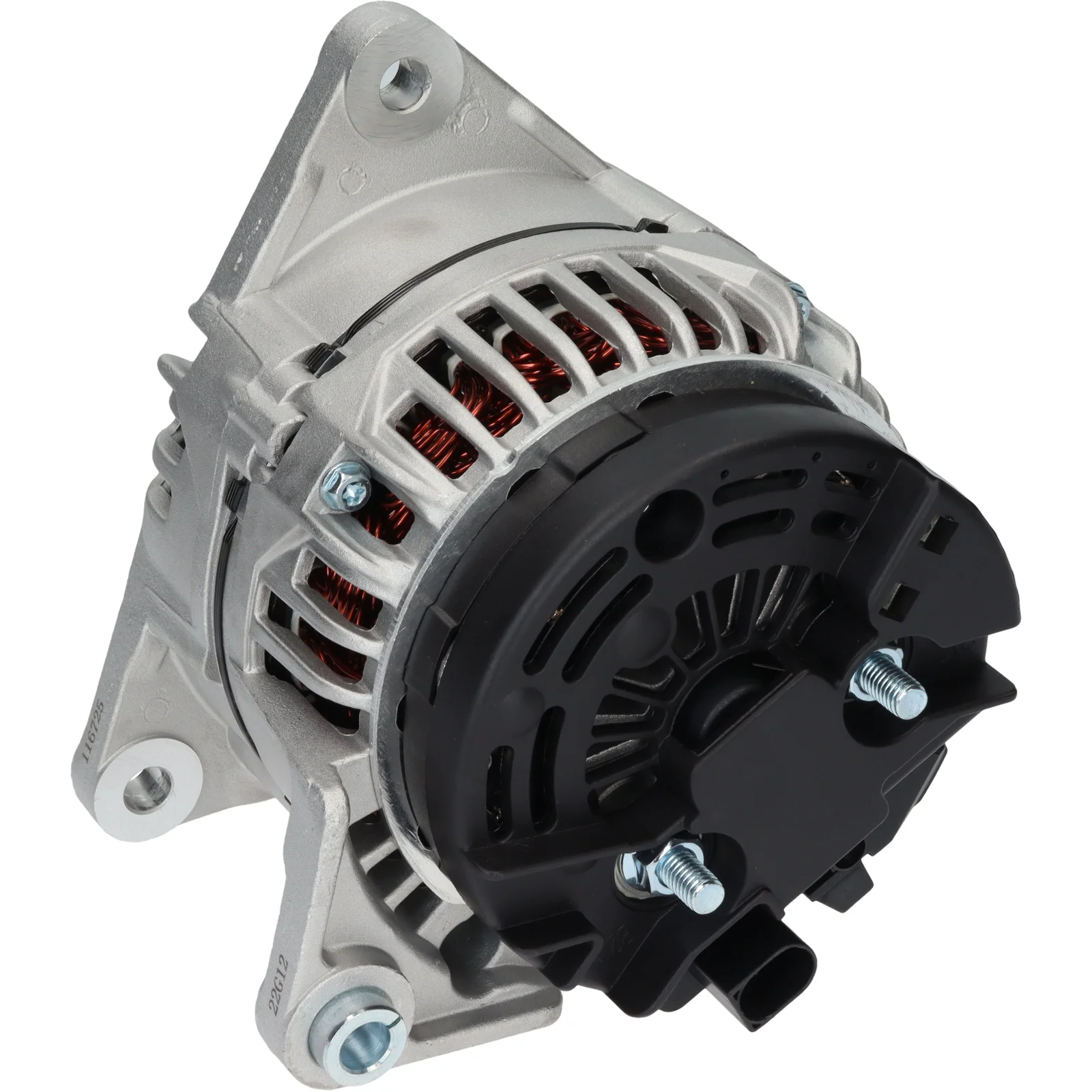

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116725

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Mounting bracket distance: 79.50

Description

Voltage: 14
Amp: 140
Pulley dist.: 38.00
Width/holder arm: 14.00
Mount. bracket dist.: 79.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 94.20
Radius 2: 95.80
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug no.: PL87
Total length mm: 193.00
Terminal type: L
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116725, ME230743, MK667725, 1986A00910, 0124525216, 0124525565, 0124525566

  • Normalised article numbler
    a0816s, f032116725, lra04330, me230743, mk667725, 1986a00910, 287939, 443405, 444285, 12061248, 0124525216, 0124525565, 0124525566, 155913140, 0986086050
  • Description
    Voltage: 14
    Amp: 140
    Pulley dist.: 38.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 79.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 94.20
    Radius 2: 95.80
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL87
    Total length mm: 193.00
    Terminal type: L
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116725, ME230743, MK667725, 1986A00910, 0124525216, 0124525565, 0124525566

    • Normalised article numbler
      a0816s, f032116725, lra04330, me230743, mk667725, 1986a00910, 287939, 443405, 444285, 12061248, 0124525216, 0124525565, 0124525566, 155913140, 0986086050
