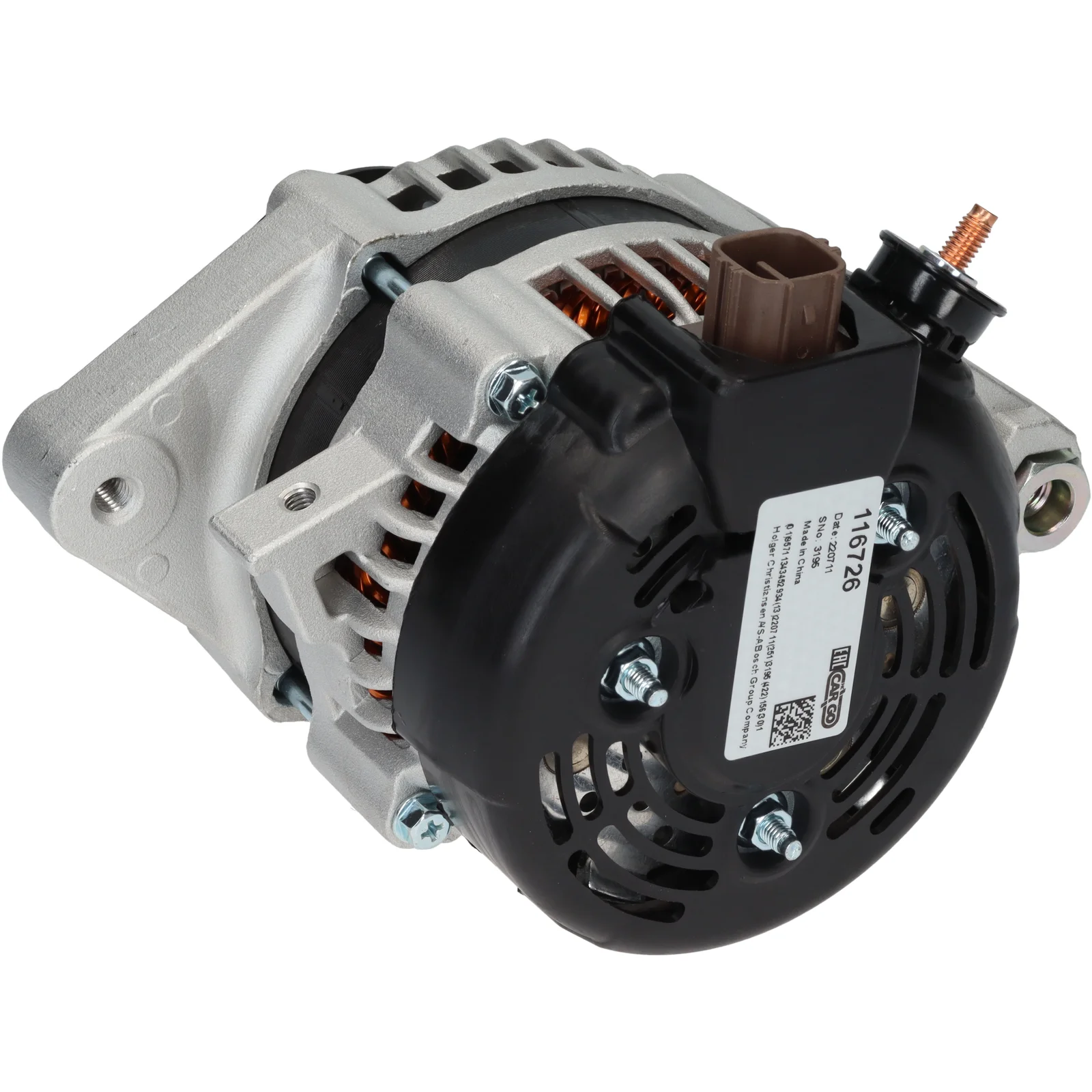

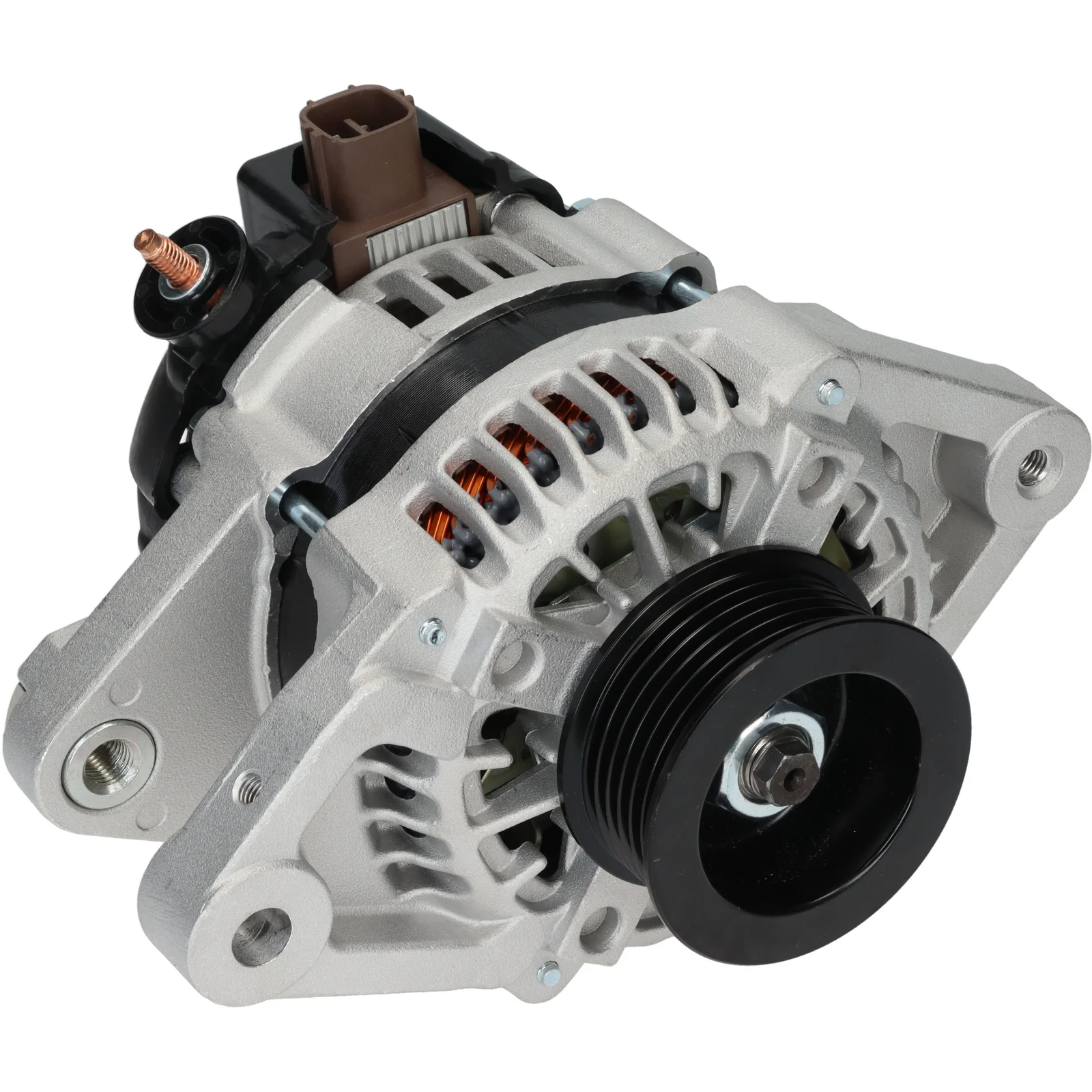

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116726

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 36.50

Description

Voltage: 14 Amp: 80 Pulley dist.: 29.00 Width/holder arm: 19.00 Mount. bracket dist.: 36.50 Bracket hole: 11.00 Belt. adj. bracket hole position.: 1 Belt. adj. bracket hole 1: M8 Alternator dia.: 60.00 Grooves/pulley: 6 Radius: 89.00 Radius 2: 81.00 B+: M6 Position/B+ in min.: 20 D+ Size: Plug Rotation: CW Plug no.: PL146 Total length mm: 164.00 Alternator: SP Fan: IF Voltage regulator type: IR

Files

  • OEM
    F032116726, 27060-0Q060, 27060-40010, 104210-816, 104210-9240

  • Normalised article numbler
    a6066, a6066denso, cal40310, dan1020, dra0697, f032116726, lra03375, man7541, 270600q060, 285987, 553473ri, 104210816, 195940080, 195977080, 235334802, 0986082120, 1042109240, 2706040010, 063377541010
  • Description
    Voltage: 14 Amp: 80 Pulley dist.: 29.00 Width/holder arm: 19.00 Mount. bracket dist.: 36.50 Bracket hole: 11.00 Belt. adj. bracket hole position.: 1 Belt. adj. bracket hole 1: M8 Alternator dia.: 60.00 Grooves/pulley: 6 Radius: 89.00 Radius 2: 81.00 B+: M6 Position/B+ in min.: 20 D+ Size: Plug Rotation: CW Plug no.: PL146 Total length mm: 164.00 Alternator: SP Fan: IF Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116726, 27060-0Q060, 27060-40010, 104210-816, 104210-9240

    • Normalised article numbler
      a6066, a6066denso, cal40310, dan1020, dra0697, f032116726, lra03375, man7541, 270600q060, 285987, 553473ri, 104210816, 195940080, 195977080, 235334802, 0986082120, 1042109240, 2706040010, 063377541010
