HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116734

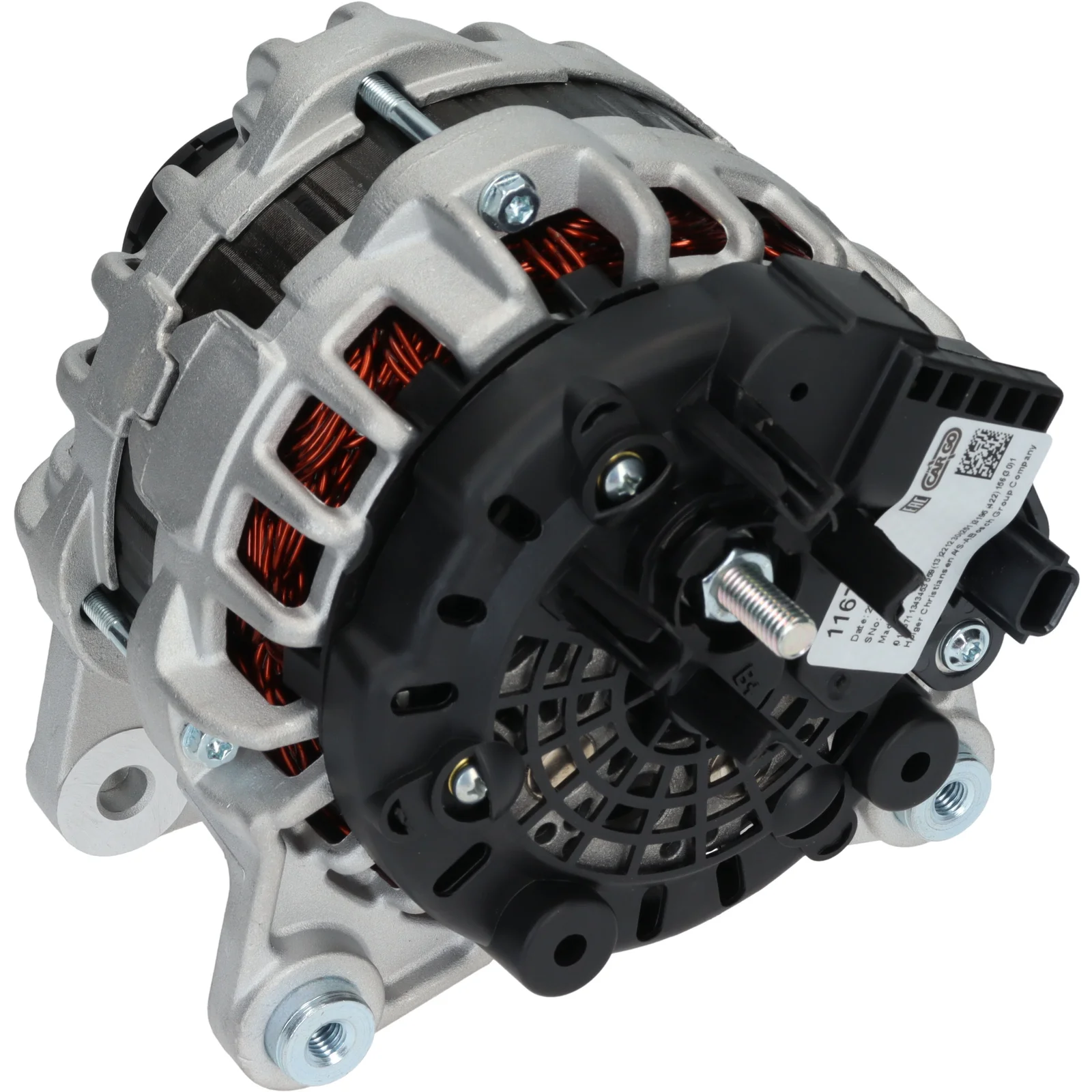

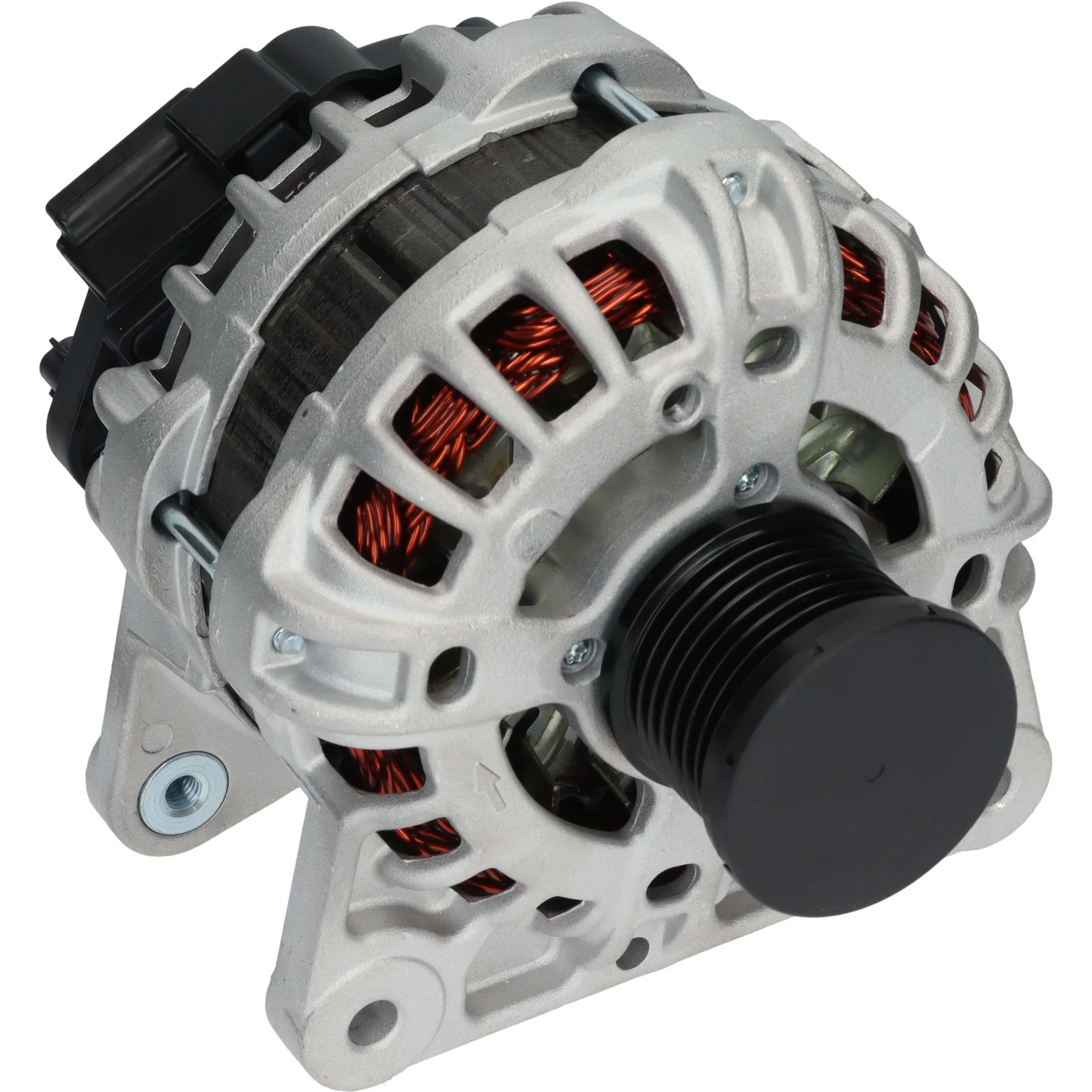

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 125, Rotation: CW, Mount. bracket dist.: 60.00

Description

Voltage: 14
Amp: 125
Pulley distributor: 33.00
Width/holder arm: 14.50
Mounting bracket distributor: 60.00
Bracket hole: 9.00
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 9.00
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 52
Rotation: CW
Plug number: PL131
Total length mm: 191.00
Terminal type: COM
ID Code: 9
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL07AU, F000BL07AV, F032116734, 231001568R

  • Normalised article numbler
    a3563s, cal15019, f000bl07au, f000bl07av, f032116734, 554106rib, 554106riv, 231001568r
  • Description
    Voltage: 14
    Amp: 125
    Pulley distributor: 33.00
    Width/holder arm: 14.50
    Mounting bracket distributor: 60.00
    Bracket hole: 9.00
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 9.00
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 52
    Rotation: CW
    Plug number: PL131
    Total length mm: 191.00
    Terminal type: COM
    ID Code: 9
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL07AU, F000BL07AV, F032116734, 231001568R

    • Normalised article numbler
      a3563s, cal15019, f000bl07au, f000bl07av, f032116734, 554106rib, 554106riv, 231001568r
