HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116747

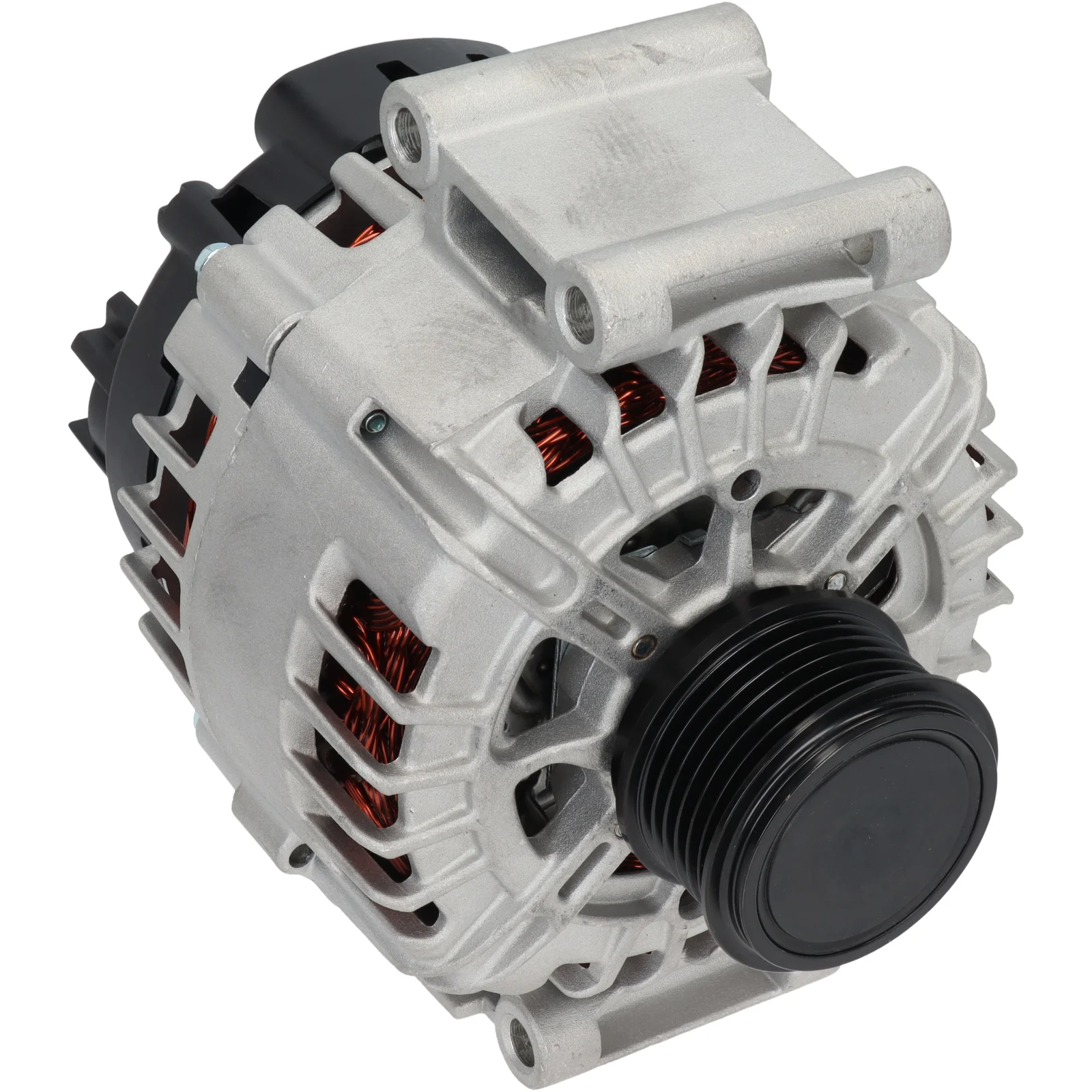

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 180
Pulley diameter: 29.50
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 9.00
Belt adjustment bracket hole 1: 9.00
Belt adjustment bracket hole 2: 8.00
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 82.50
Radius 2: 82.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL181
Total length mm: 195.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116747, FG18T084, FG18T169, FG18T201, 06J903023K, 06J903023KX, 06K903015B, 06K903015BX, 06K903015D, 2612300, 2612300B, 2612300C, 2612300D, 2612300E, 2612300F, 2612300G, 2612300H, 2715550A

  • Normalised article numbler
    f032116747, fg18t084, fg18t169, fg18t201, lra04099, 06j903023k, 06j903023kx, 06k903015b, 06k903015bx, 06k903015d, 8el015637231, 287708, 439737, 440327, 554268ri, 554268riv, 2612300, 2612300b, 2612300c, 2612300d, 2612300e, 2612300f, 2612300g, 2612300h, 2715550a, 12090799, 12090801, 32000004, 305934180
  • Description
    Voltage: 14
    Amp: 180
    Pulley diameter: 29.50
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 9.00
    Belt adjustment bracket hole 1: 9.00
    Belt adjustment bracket hole 2: 8.00
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 82.50
    Radius 2: 82.50
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL181
    Total length mm: 195.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116747, FG18T084, FG18T169, FG18T201, 06J903023K, 06J903023KX, 06K903015B, 06K903015BX, 06K903015D, 2612300, 2612300B, 2612300C, 2612300D, 2612300E, 2612300F, 2612300G, 2612300H, 2715550A

    • Normalised article numbler
      f032116747, fg18t084, fg18t169, fg18t201, lra04099, 06j903023k, 06j903023kx, 06k903015b, 06k903015bx, 06k903015d, 8el015637231, 287708, 439737, 440327, 554268ri, 554268riv, 2612300, 2612300b, 2612300c, 2612300d, 2612300e, 2612300f, 2612300g, 2612300h, 2715550a, 12090799, 12090801, 32000004, 305934180
