HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116765

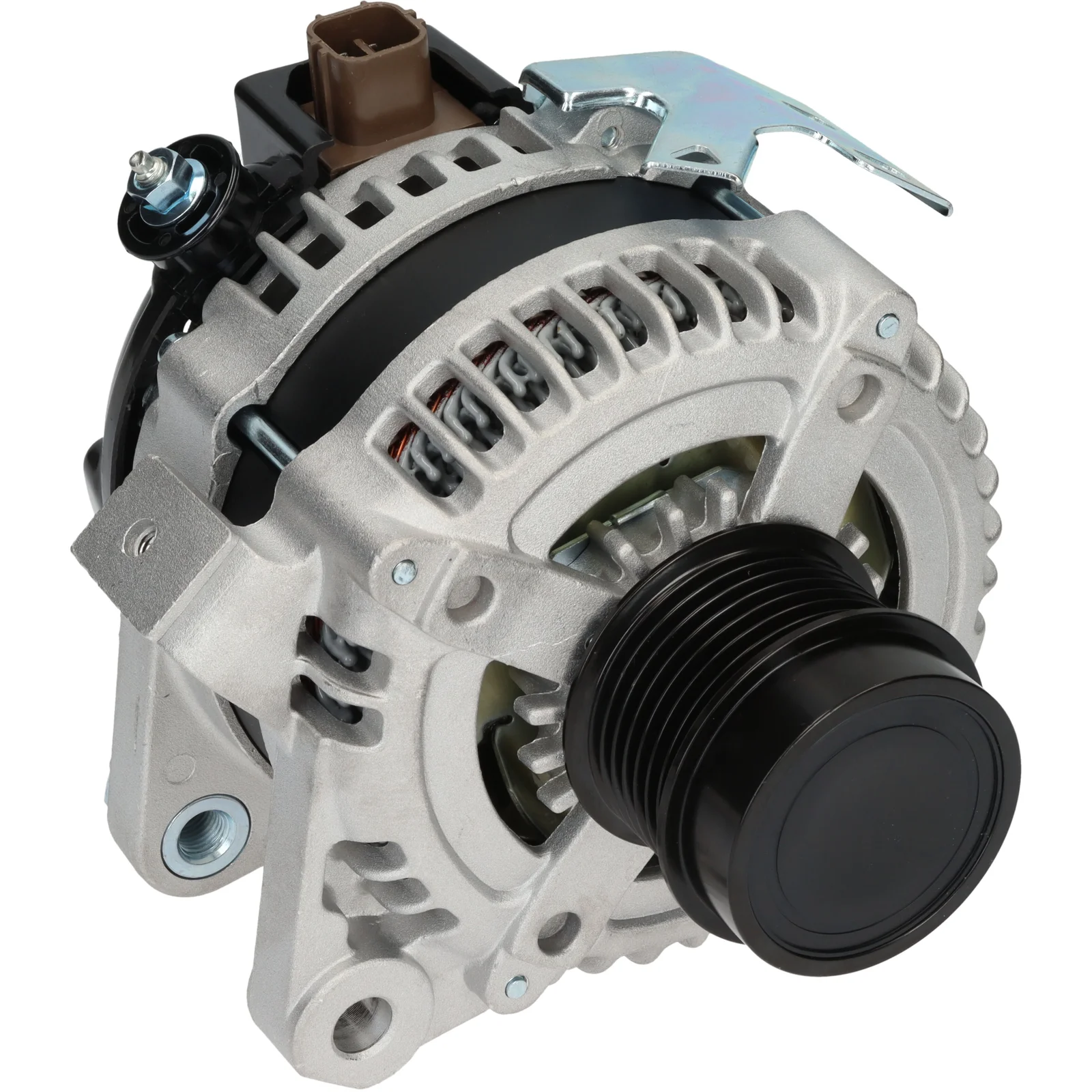

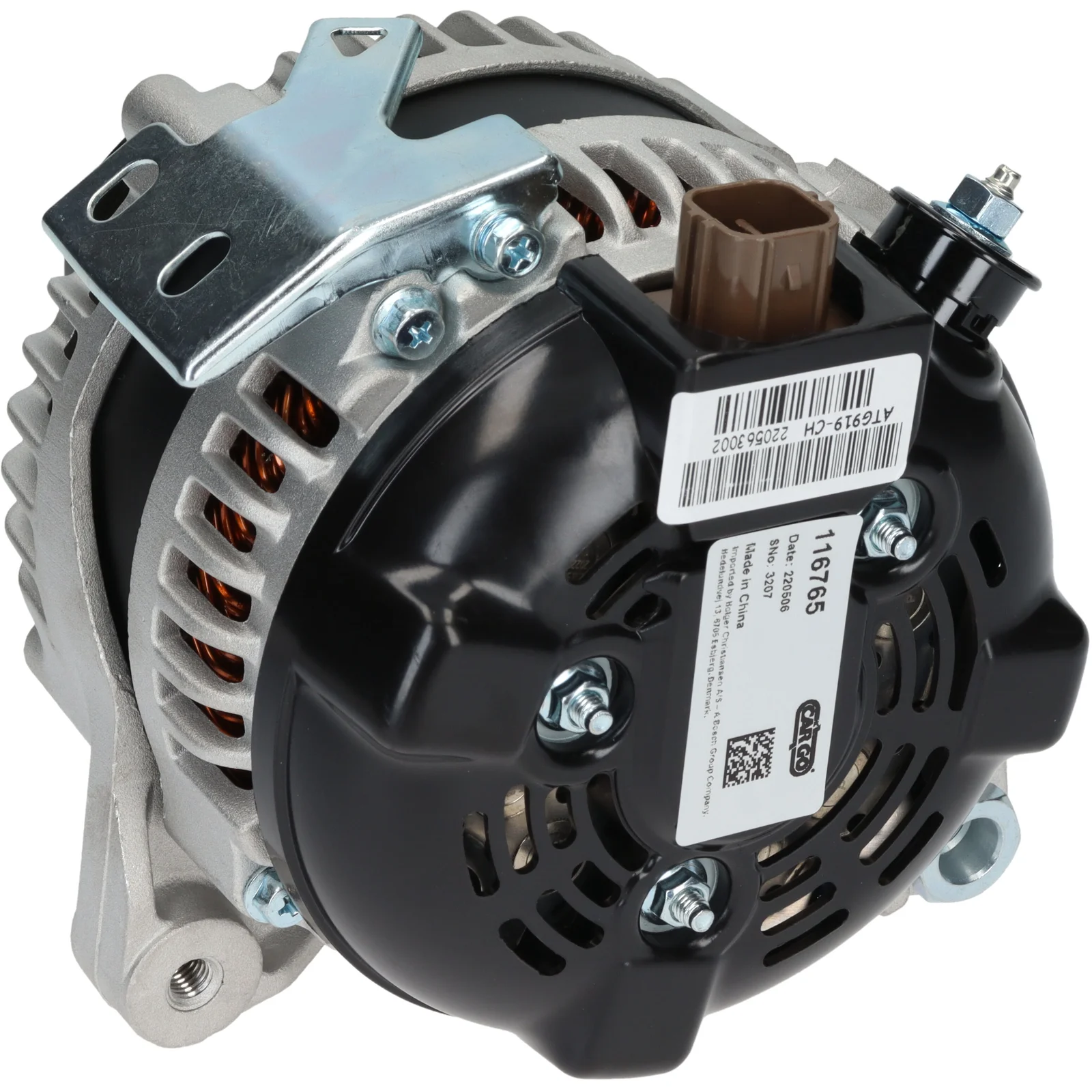

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 130, Rotation: CW, Mounting bracket distributor: 46.00

Description

Voltage: 14
Amp: 130
Pulley dist.: 35.00
Width/holder arm: 18.00
Mounting bracket dist.: 46.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 14
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Total length mm: 175.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116765, 27060-28340, 27060-28341, 104210-4980, 104210-4984, 104210-4985

  • Normalised article numbler
    a6313, cal40290, dan1482, f032116765, lra02996, 23996n, 285609, 553614ri, 12060924, 195955130, 1042104980, 1042104984, 1042104985, 2706028340, 2706028341
  • Description
    Voltage: 14
    Amp: 130
    Pulley dist.: 35.00
    Width/holder arm: 18.00
    Mounting bracket dist.: 46.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 14
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL146
    Total length mm: 175.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116765, 27060-28340, 27060-28341, 104210-4980, 104210-4984, 104210-4985

    • Normalised article numbler
      a6313, cal40290, dan1482, f032116765, lra02996, 23996n, 285609, 553614ri, 12060924, 195955130, 1042104980, 1042104984, 1042104985, 2706028340, 2706028341
