HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116782

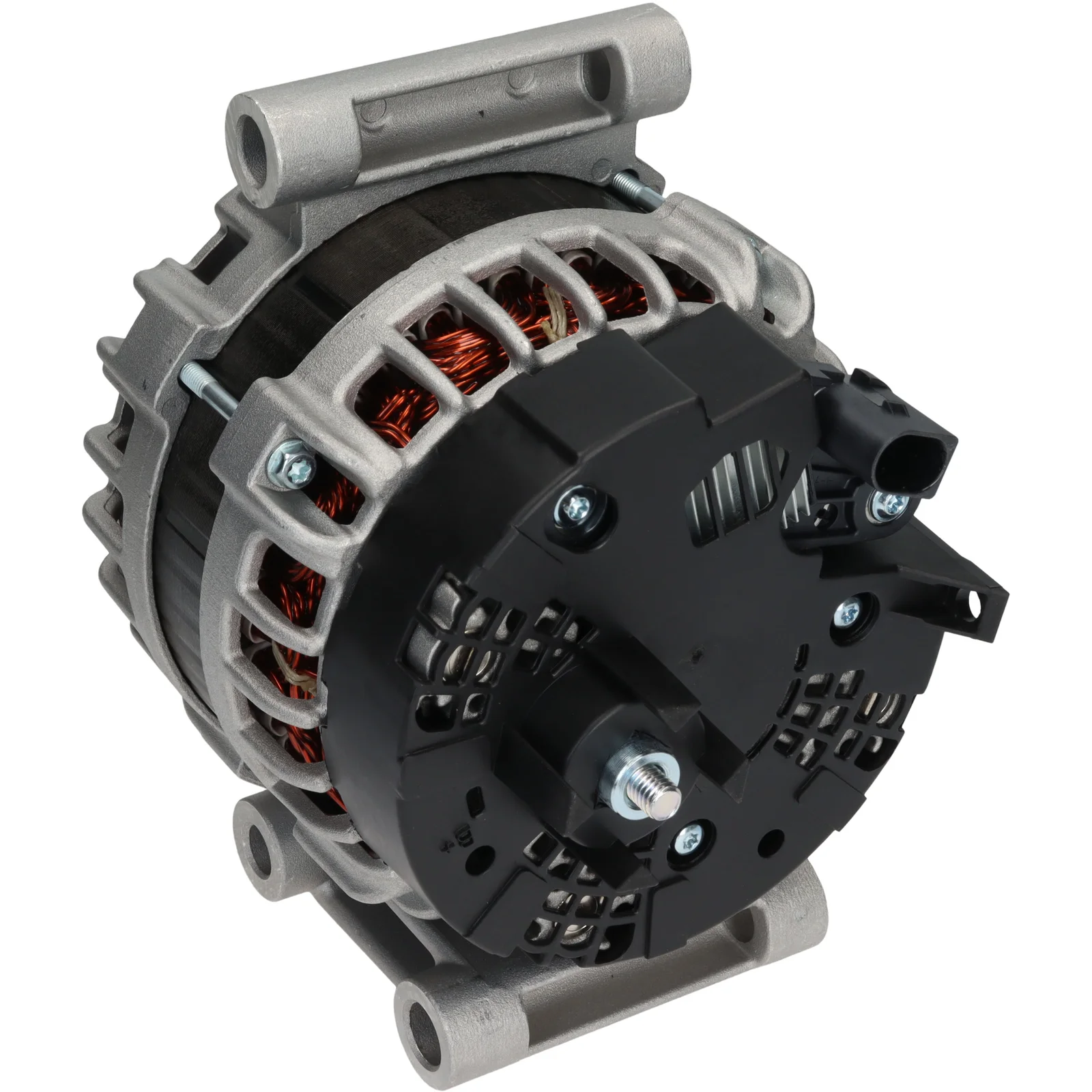

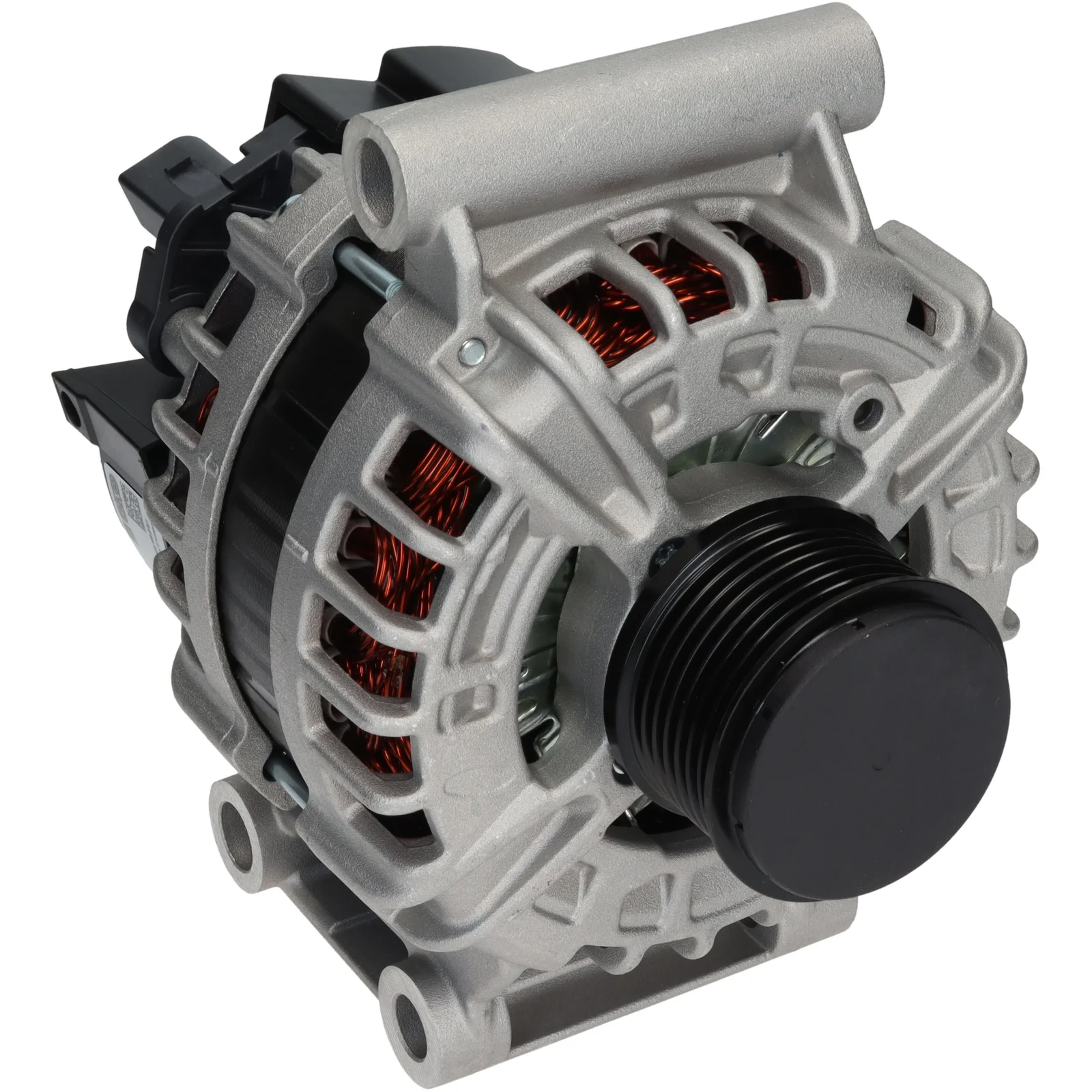

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 210, Rotation: CW, Mounting bracket distributor: 74.00

Description

Voltage: 14
Amp: 210
Pulley diameter: 43.50
Width/holder arm: 97.00
Mounting bracket distance: 74.00
Bracket hole: 10.30
Belt adjustment bracket hole 1: 10.30
Pulley dia.: 58.70
Grooves/pulley: 7
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ in min.: 44
Rotation: CW
Plug no.: PL174
Total length mm: 203.00
Terminal type: COM
ID Code: 88
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    BK3T10300EA, BK3T10300EB, BK3Z10346A, F032116782, 1986A00683, 1820604, 1874997, 0125811015, 0125811016, 0125811085, 0125811086

  • Normalised article numbler
    a0770s, bk3t10300ea, bk3t10300eb, bk3z10346a, cal10a05, dra1798, f032116782, lra04178, 8el011713921, 1986a00683, 40356, 287787, 443414, 444289, 555028rib, 1820604, 1874997, 12090744, 32003008, 0125811015, 0125811016, 0125811085, 0125811086, 595596210, 0986082187, 0986086040
  • Description
    Voltage: 14
    Amp: 210
    Pulley diameter: 43.50
    Width/holder arm: 97.00
    Mounting bracket distance: 74.00
    Bracket hole: 10.30
    Belt adjustment bracket hole 1: 10.30
    Pulley dia.: 58.70
    Grooves/pulley: 7
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 44
    Rotation: CW
    Plug no.: PL174
    Total length mm: 203.00
    Terminal type: COM
    ID Code: 88
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      BK3T10300EA, BK3T10300EB, BK3Z10346A, F032116782, 1986A00683, 1820604, 1874997, 0125811015, 0125811016, 0125811085, 0125811086

    • Normalised article numbler
      a0770s, bk3t10300ea, bk3t10300eb, bk3z10346a, cal10a05, dra1798, f032116782, lra04178, 8el011713921, 1986a00683, 40356, 287787, 443414, 444289, 555028rib, 1820604, 1874997, 12090744, 32003008, 0125811015, 0125811016, 0125811085, 0125811086, 595596210, 0986082187, 0986086040
