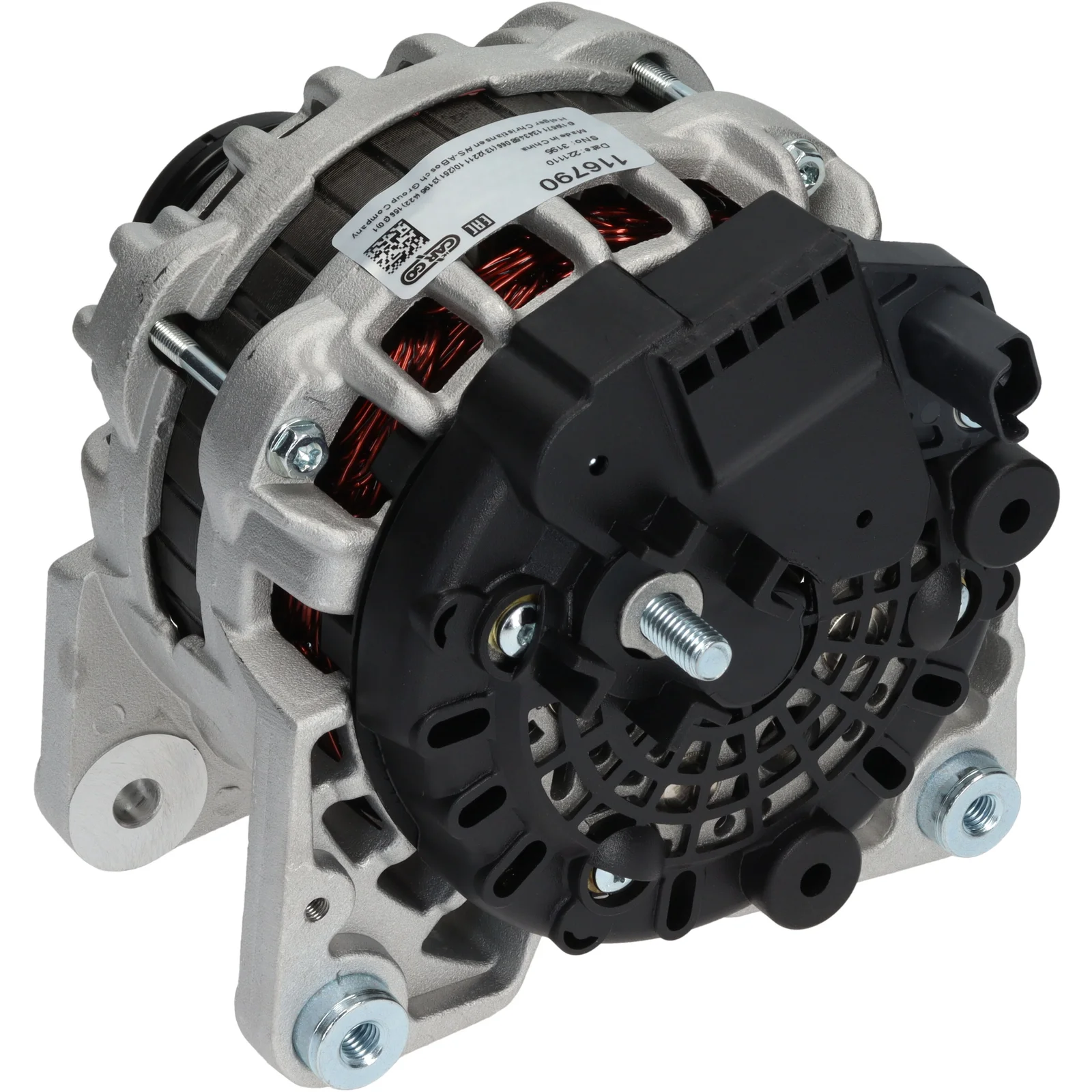

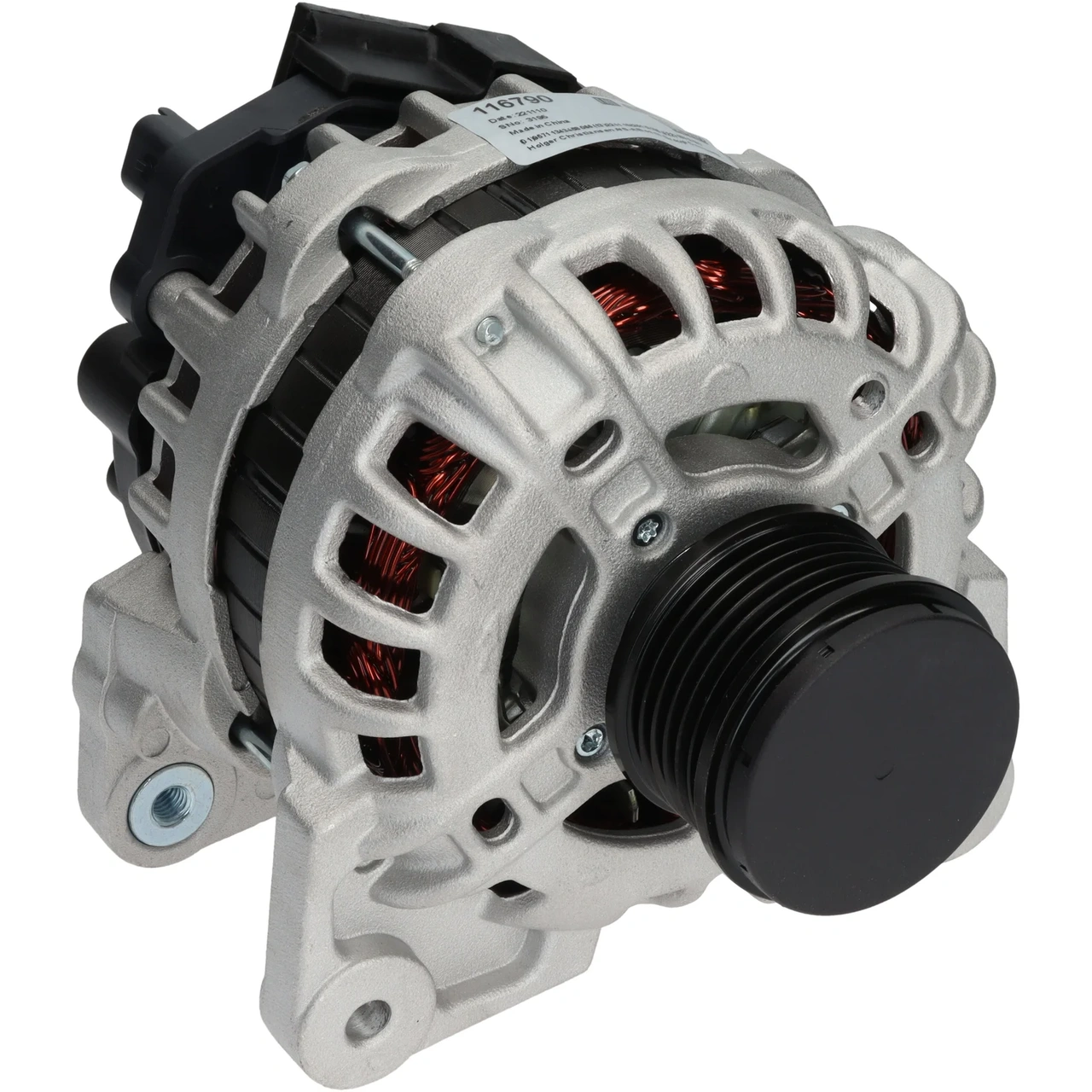

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116790

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 75.00

Description

Voltage: 14
Amp: 110
Pulley distance: 38.80
Width/holder arm: 14.50
Mounting bracket distance: 75.00
Bracket hole: 8.00
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 44
D+ size: Plug
Rotation: CW
Plug number: PL72
Total length mm: 183.00
Terminal type: L-DFM
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    F000BL061C, F000BL0628, F032116790, 231001956, 231001956C, 231001956R, 231001956RC

  • Normalised article numbler
    cal10581, dra1774, f000bl061c, f000bl0628, f032116790, lra04085, 9013, 287694, 554618ri, 12090863, 231001956, 231001956c, 231001956r, 231001956rc, 575957110
  • Description
    Voltage: 14
    Amp: 110
    Pulley distance: 38.80
    Width/holder arm: 14.50
    Mounting bracket distance: 75.00
    Bracket hole: 8.00
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 44
    D+ size: Plug
    Rotation: CW
    Plug number: PL72
    Total length mm: 183.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F000BL061C, F000BL0628, F032116790, 231001956, 231001956C, 231001956R, 231001956RC

    • Normalised article numbler
      cal10581, dra1774, f000bl061c, f000bl0628, f032116790, lra04085, 9013, 287694, 554618ri, 12090863, 231001956, 231001956c, 231001956r, 231001956rc, 575957110
