HC-Cargo Alternator

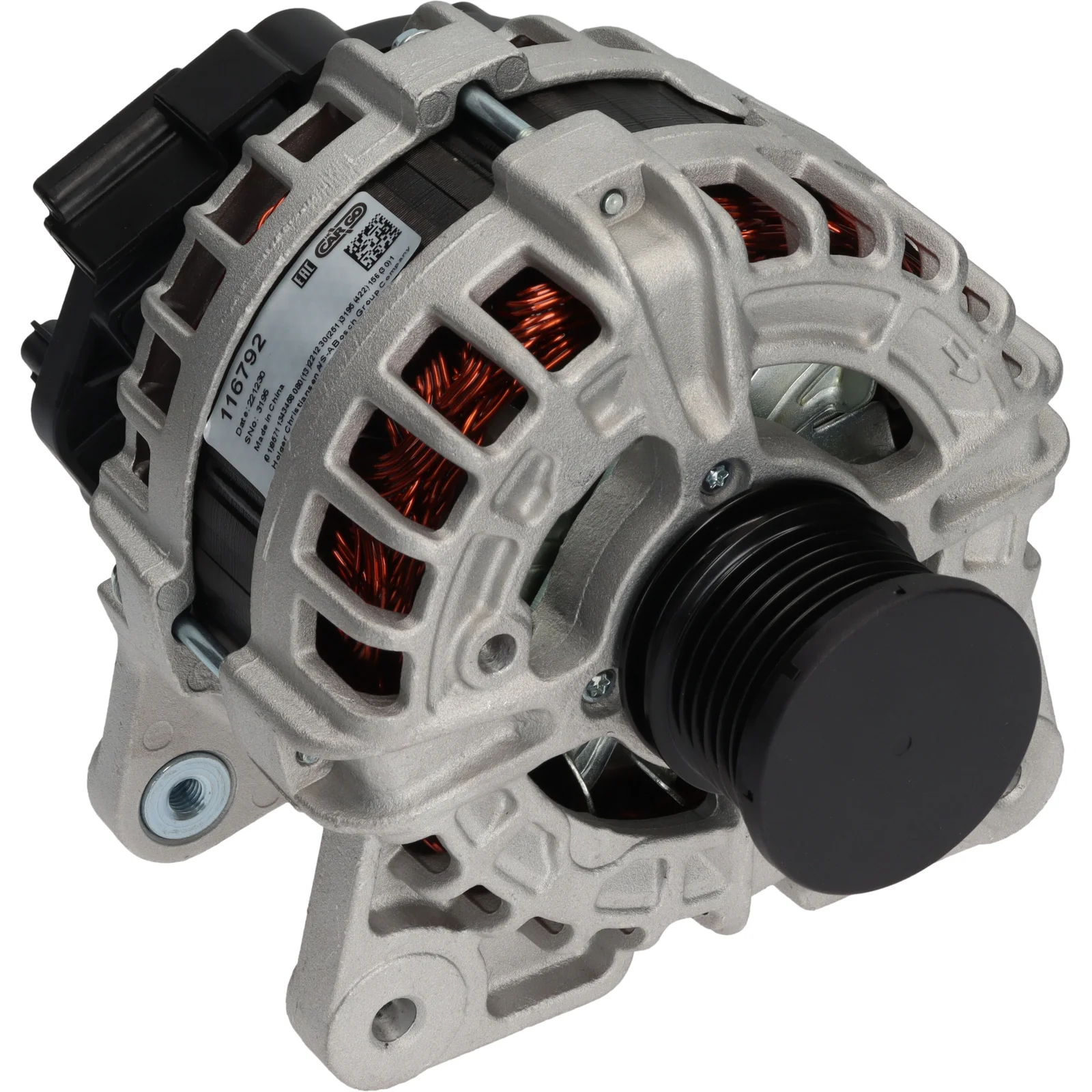

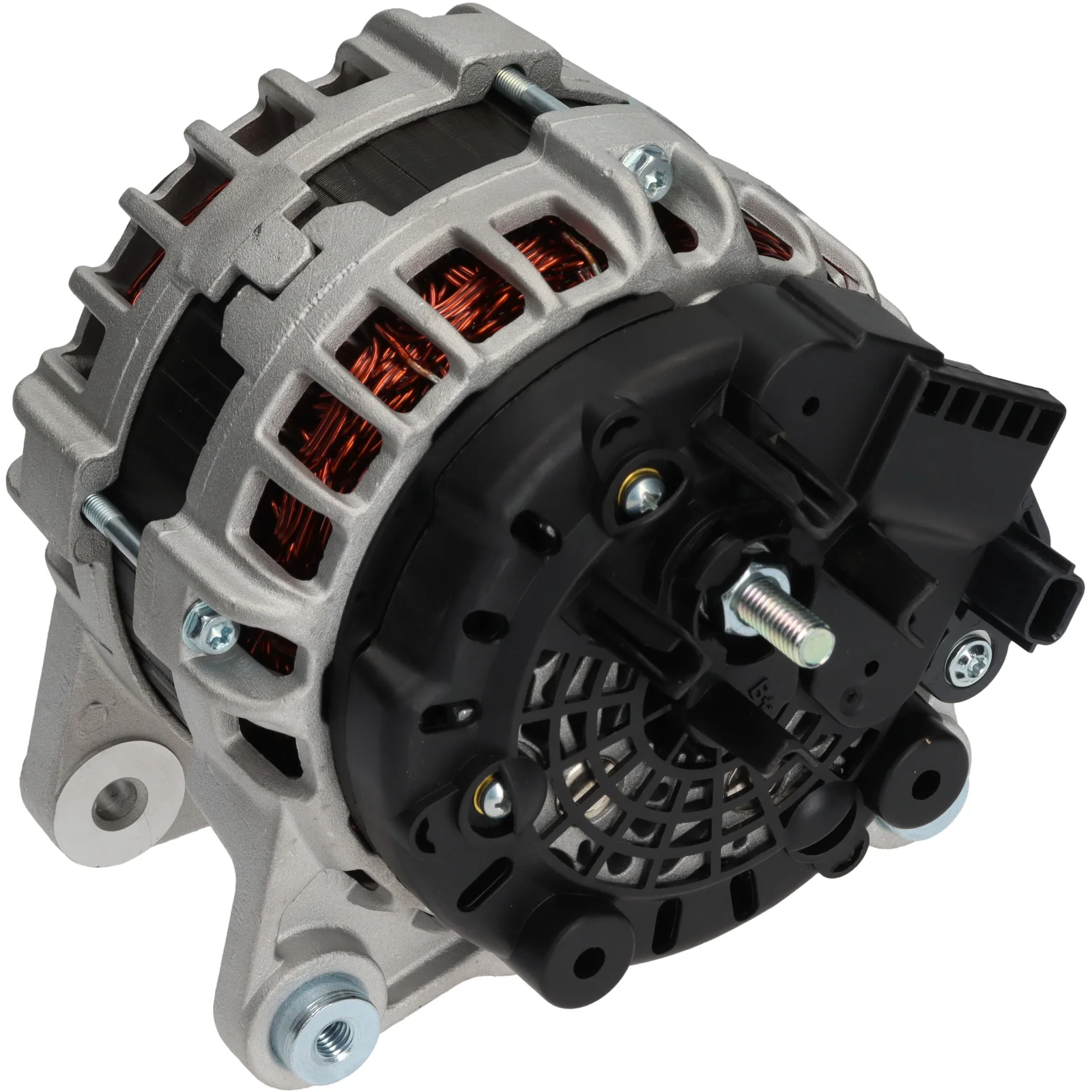

HC-Cargo Alternator
Article no.: F032116792

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 150
Pulley | Drev: 38.50
Width/holder arm: 14.50
Mount. bracket dist.: 61.00
Bracket hole: 8.00
Bracket hole 2: M8
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: 8.00
Pulley | Drev dia.: 49.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+ Length mm: 16.50
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL131
Total length mm: 198.00
Terminal type: COM
Communication: LIN
Pulley | Drev: SP/FW
Fan: IF
Regulator | Regul. | Reg.: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000BL0889, F000BL0890, F032116792, 23100-4BB0D, 23100-4BB0DE, 231004BB0D, 231004BB0DRP

  • Normalised article numbler
    a0591s, cal10064, dra1870, f000bl0889, f000bl0890, f032116792, 231004bb0d, 231004bb0de, 231004bb0drp, 443423, 444293
  • Description
    Voltage: 14
    Amp: 150
    Pulley | Drev: 38.50
    Width/holder arm: 14.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.00
    Bracket hole 2: M8
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: 8.00
    Pulley | Drev dia.: 49.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+ Length mm: 16.50
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL131
    Total length mm: 198.00
    Terminal type: COM
    Communication: LIN
    Pulley | Drev: SP/FW
    Fan: IF
    Regulator | Regul. | Reg.: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0889, F000BL0890, F032116792, 23100-4BB0D, 23100-4BB0DE, 231004BB0D, 231004BB0DRP

    • Normalised article numbler
      a0591s, cal10064, dra1870, f000bl0889, f000bl0890, f032116792, 231004bb0d, 231004bb0de, 231004bb0drp, 443423, 444293
