HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116793

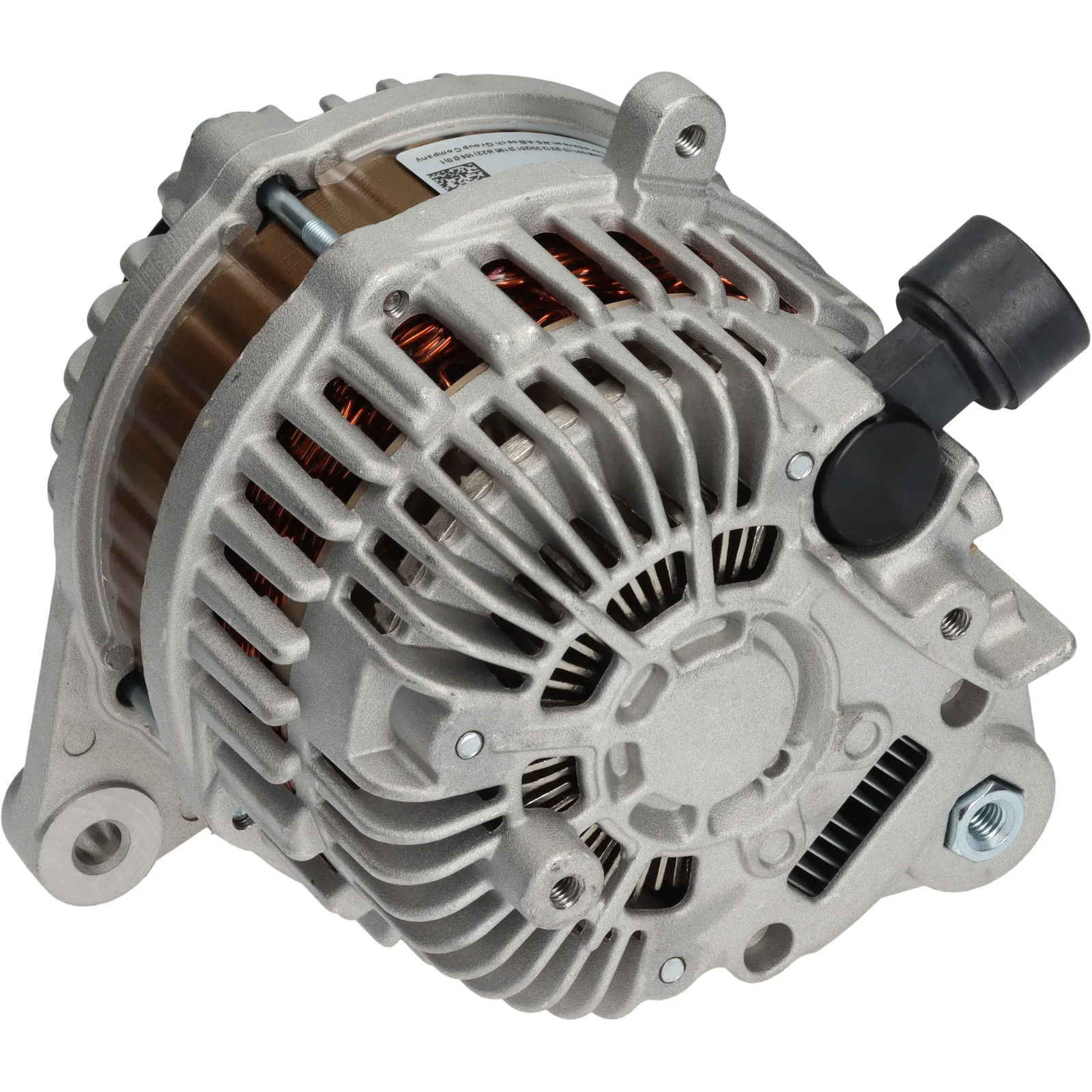

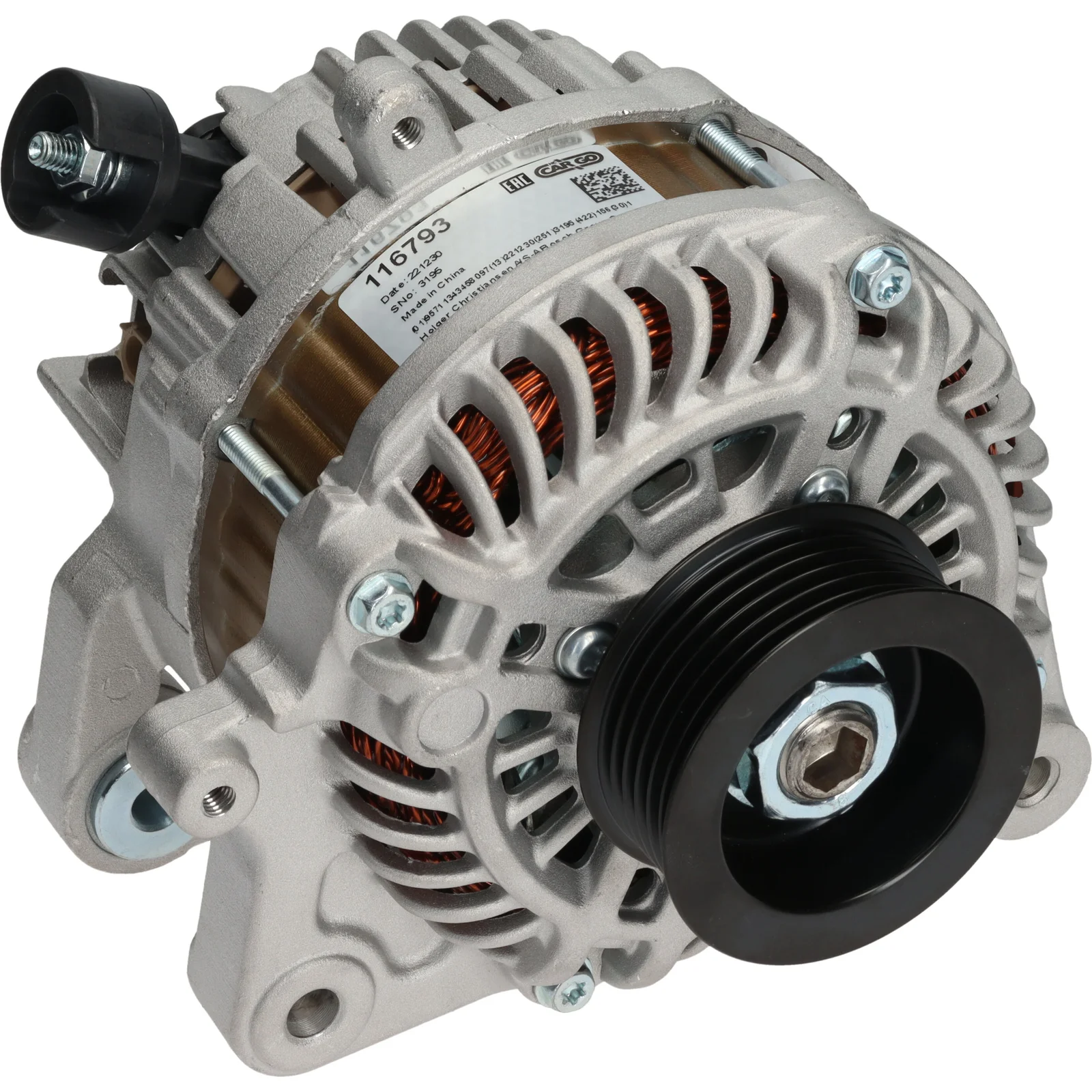

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 95, Rotation: CW, Mounting bracket distance: 41.00

Description

HC-Cargo Alternator 12V - 95A, 6grooves

Voltage: 14
Amp: 95
Pulley dist.: 47.00
Width/holder arm: 20.00
Mount. bracket dist.: 41.00
Bracket hole: 9.00
Belt. adj. brackethole pos.: 12
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 85.00
Radius 2: 86.50
B+: M6
Position/B+ in min.: 18
Rotation: CW
Plug no.: PL205
Total length mm: 164.00
Terminal type: COM
Communication: LIN
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A005TJ0191, A005TJ0191ZD, A005TJ0191ZE, A5T-J0191, A5T-J0191 ZE, A5TJ0191, A5TJ0191AC, A5TJ0191AE, A5TJ0191ZC, A5TJ0191ZD, A5TJ0191ZE, AHGA 81, AHGA81, F032116793, 1986A01581, 27060-35080, 31100-R1A-A01, 116793

  • Normalised article numbler
    a005tj0191, a005tj0191zd, a005tj0191ze, a5117, a5tj0191, a5tj0191ac, a5tj0191ae, a5tj0191zc, a5tj0191zd, a5tj0191ze, ahga81, cal35369, dra1081, dra1081n, f032116793, 0986cr6083, 0986ur6083, 1986a01581, 11537, 31100r1aa01, 116793, 287528, 12061022, 125581095, 0986086730, 2706035080
  • Description
    HC-Cargo Alternator 12V - 95A, 6grooves

    Voltage: 14
    Amp: 95
    Pulley dist.: 47.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 41.00
    Bracket hole: 9.00
    Belt. adj. brackethole pos.: 12
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 60.00
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 86.50
    B+: M6
    Position/B+ in min.: 18
    Rotation: CW
    Plug no.: PL205
    Total length mm: 164.00
    Terminal type: COM
    Communication: LIN
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A005TJ0191, A005TJ0191ZD, A005TJ0191ZE, A5T-J0191, A5T-J0191 ZE, A5TJ0191, A5TJ0191AC, A5TJ0191AE, A5TJ0191ZC, A5TJ0191ZD, A5TJ0191ZE, AHGA 81, AHGA81, F032116793, 1986A01581, 27060-35080, 31100-R1A-A01, 116793

    • Normalised article numbler
      a005tj0191, a005tj0191zd, a005tj0191ze, a5117, a5tj0191, a5tj0191ac, a5tj0191ae, a5tj0191zc, a5tj0191zd, a5tj0191ze, ahga81, cal35369, dra1081, dra1081n, f032116793, 0986cr6083, 0986ur6083, 1986a01581, 11537, 31100r1aa01, 116793, 287528, 12061022, 125581095, 0986086730, 2706035080
