HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116797

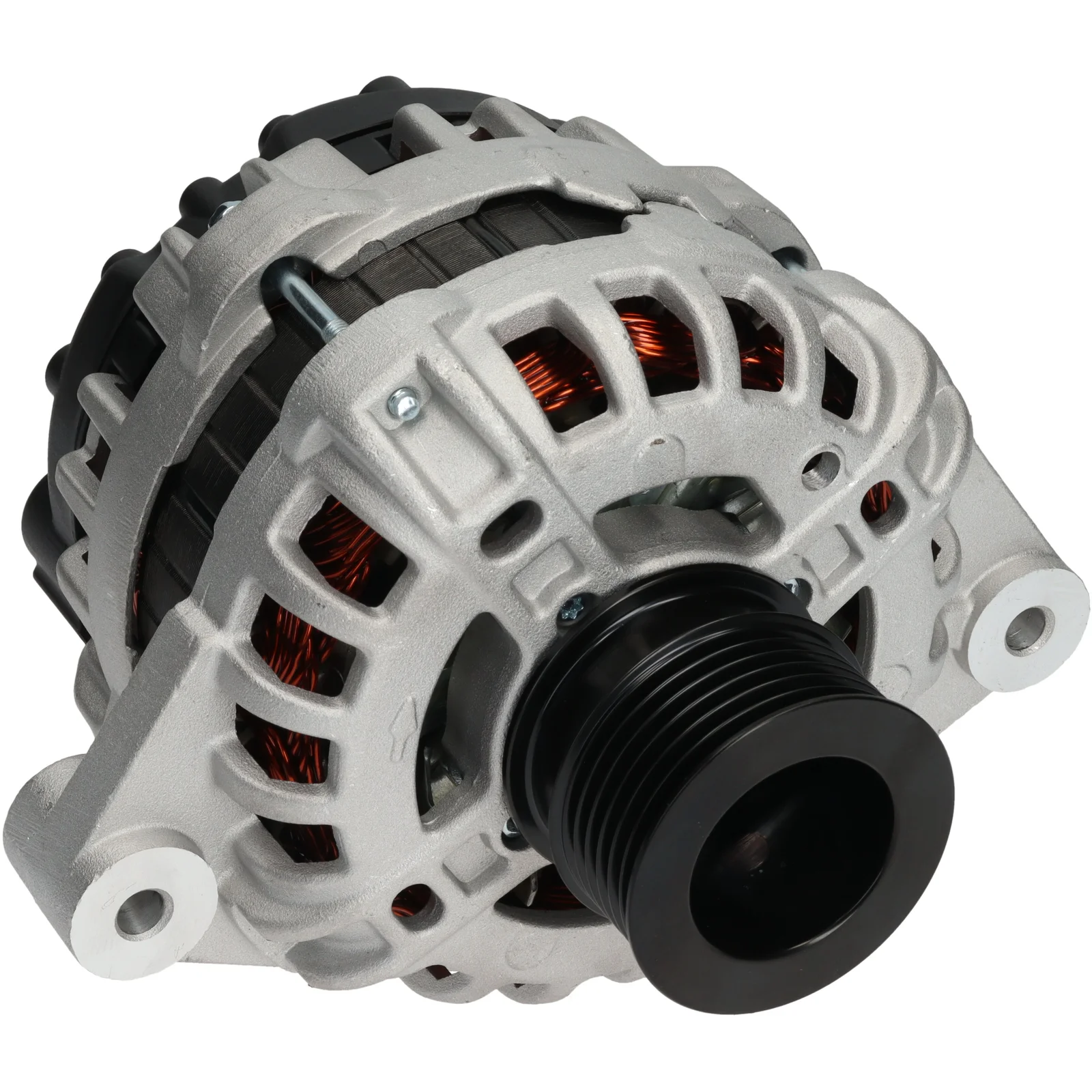

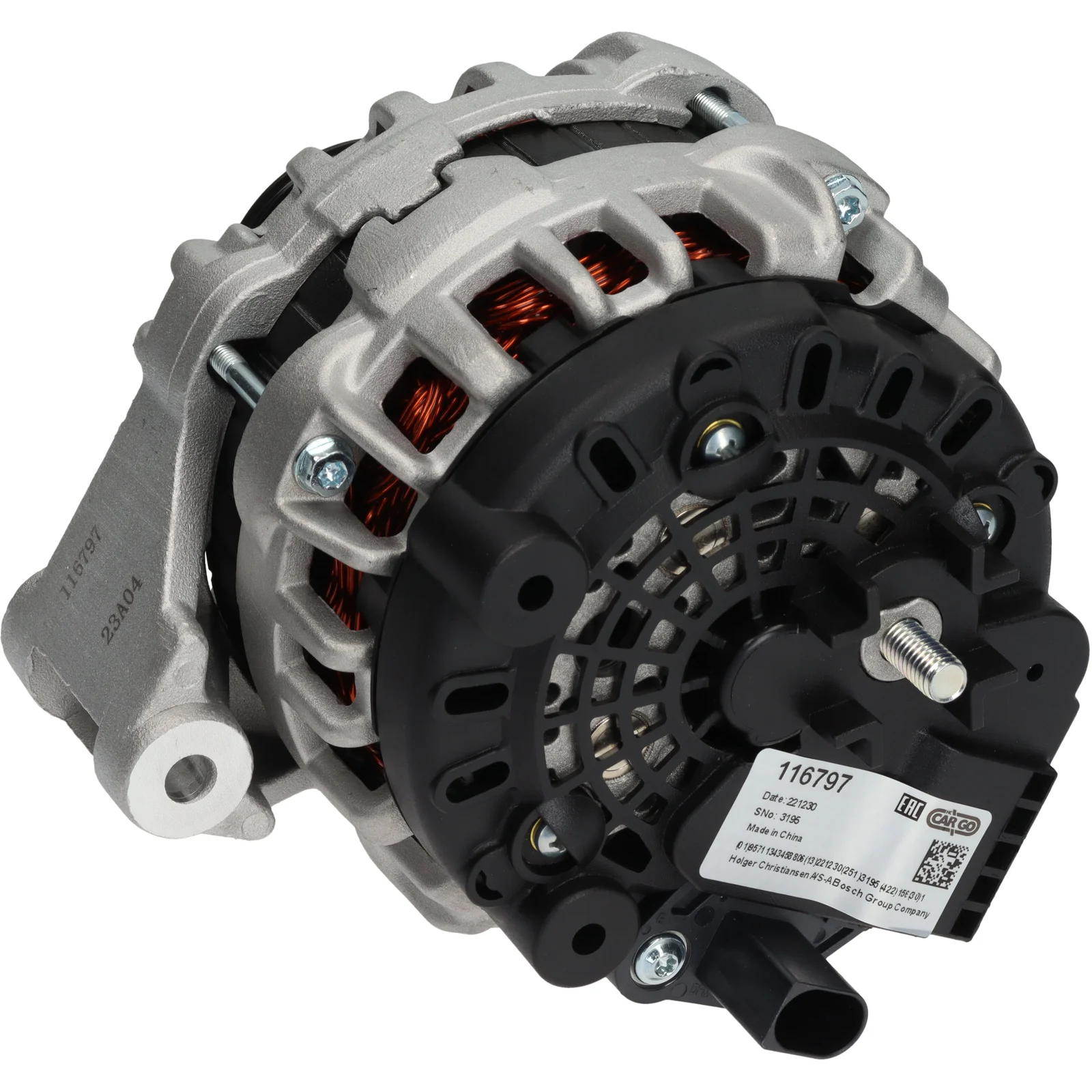

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Pulley diameter: 54.80

Description

Voltage: 14
Amp: 110
Pulley distributor: 92.00
Width/holder arm: 56.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 55
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 54.80
Grooves/pulley: 6
Radius: 86.00
Radius 2: 86.00
B+ Length mm: 14.50
B+: M8
Position/B+ in min.: 5
Rotation: clockwise
Plug no.: PL61
Total length mm: 180.00
Terminal type: L-DFM
Alternator: SP
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    A1118, F000BL0652, F000BL06L6, F032116797, 1986A01072, 2170370101013

  • Normalised article numbler
    a0294, a1118, cal10035, f000bl0652, f000bl06l6, f032116797, 1986a01072, 855509110, 2170370101013
  • Description
    Voltage: 14
    Amp: 110
    Pulley distributor: 92.00
    Width/holder arm: 56.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 55
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 54.80
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 86.00
    B+ Length mm: 14.50
    B+: M8
    Position/B+ in min.: 5
    Rotation: clockwise
    Plug no.: PL61
    Total length mm: 180.00
    Terminal type: L-DFM
    Alternator: SP
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A1118, F000BL0652, F000BL06L6, F032116797, 1986A01072, 2170370101013

    • Normalised article numbler
      a0294, a1118, cal10035, f000bl0652, f000bl06l6, f032116797, 1986a01072, 855509110, 2170370101013
