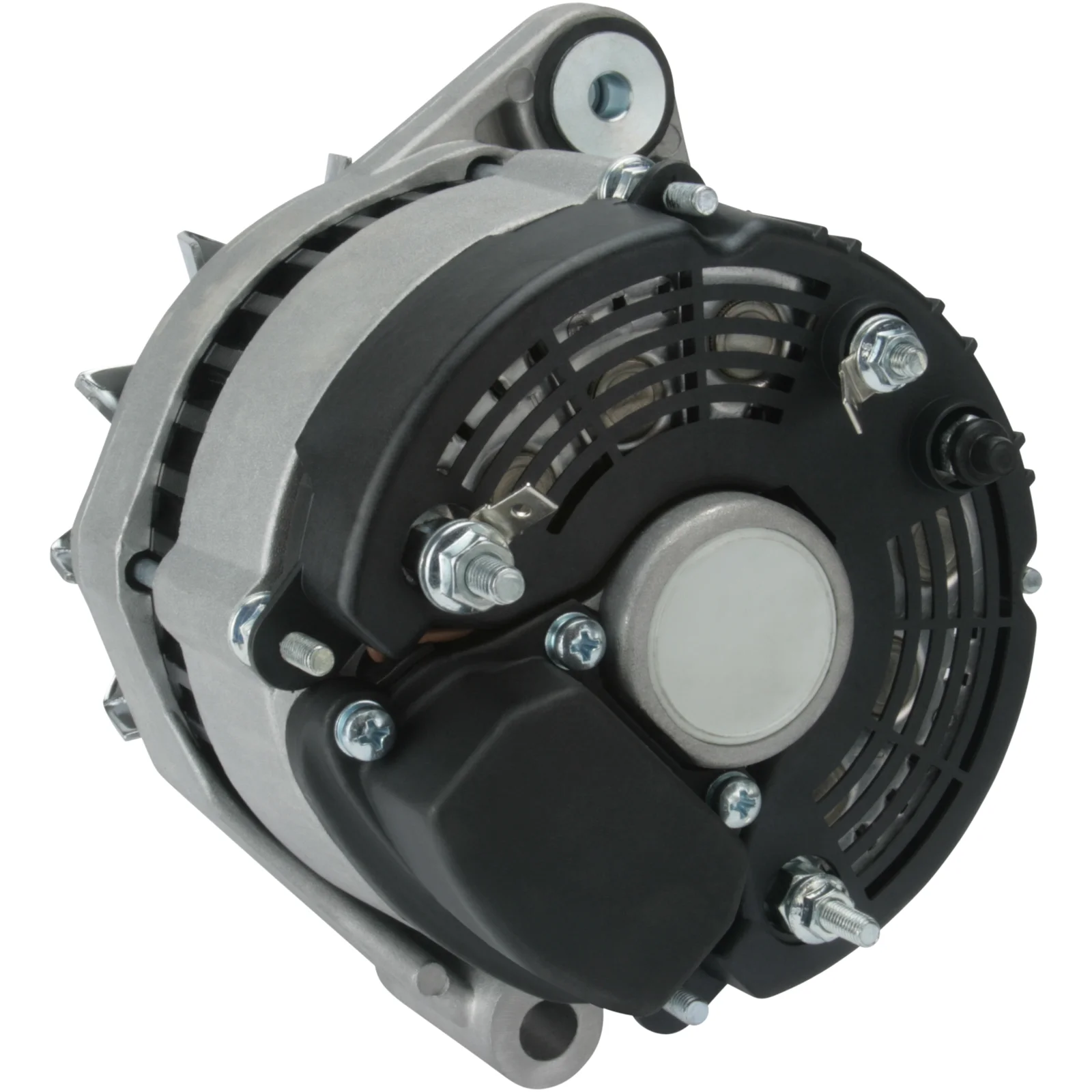

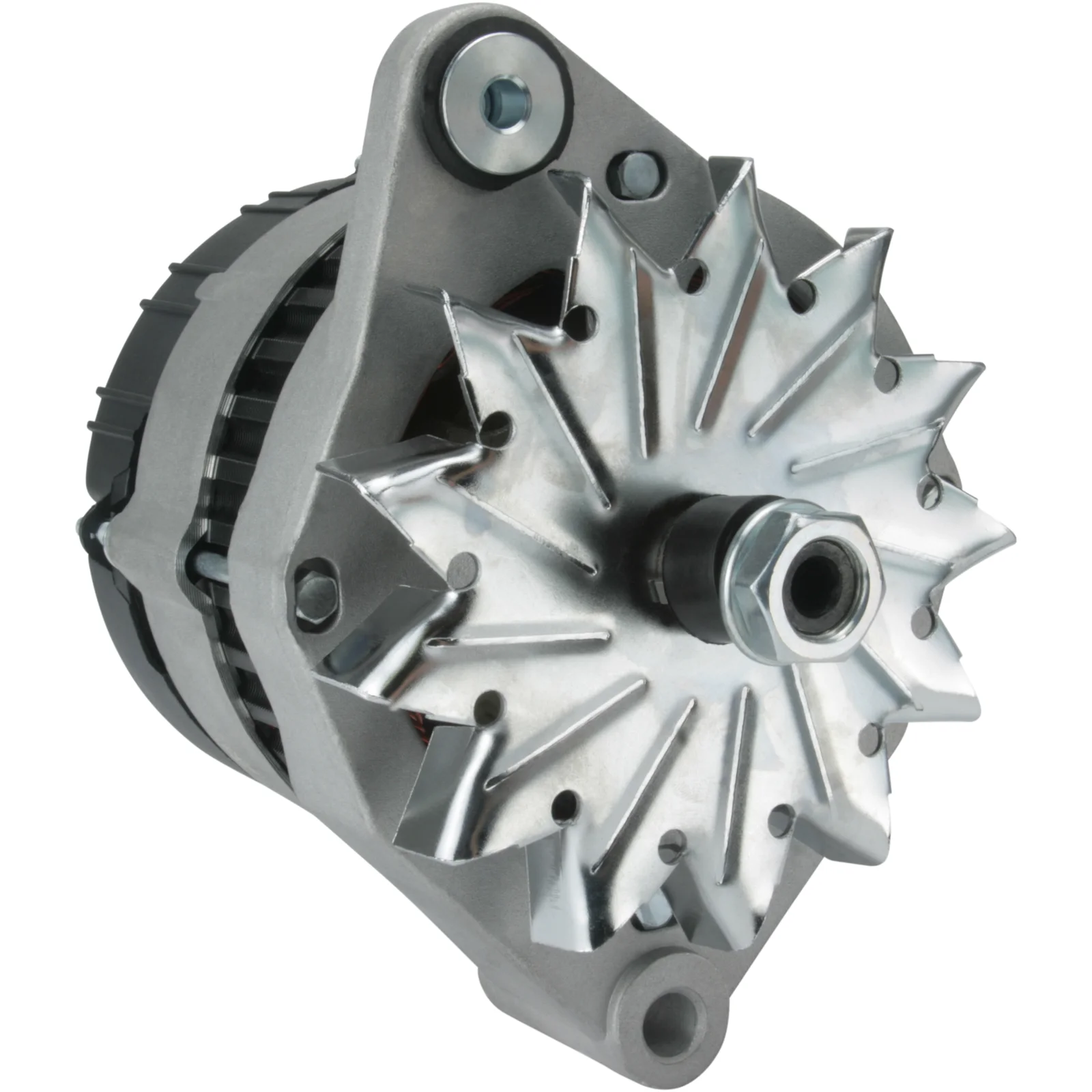

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110052

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 40, Rotation: CW, Radius: 84.00

Description

Voltage: 28
Amp: 40
Insulated return: Yes
Terminal: W
Width/holder arm: 50.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 8.20
Radius: 84.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 177.00
Pulley: w/o
Fan: EF
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    a13n270, F032110052, 9ar2713, 9AR3713, 9ar3713g, 9AR3739, 9ar3739g, 510-804, 510-817, 2937130, 2937130A, 71249002, 71340002, 71490502, 71490702, 71490802, 71491002, 71543002

  • Normalised article numbler
    a13n270, f032110052, lra00386, lra02429, mg434, 8el730042001, 9ar2713, 9ar3713, 9ar3713g, 9ar3739, 9ar3739g, 5227, 12410, 12419n, 12680n, 12680n120a, 30744ri, 75774, 202017, 439189, 470605, 470872, 480860, 510804, 510817, 2937130, 2937130a, 20150114, 71249002, 71340002, 71490502, 71490702, 71490802, 71491002, 71543002, 500009254, 500109404, 816027045
  • Description
    Voltage: 28
    Amp: 40
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 50.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: 8.20
    Radius: 84.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 177.00
    Pulley: w/o
    Fan: EF
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      a13n270, F032110052, 9ar2713, 9AR3713, 9ar3713g, 9AR3739, 9ar3739g, 510-804, 510-817, 2937130, 2937130A, 71249002, 71340002, 71490502, 71490702, 71490802, 71491002, 71543002

    • Normalised article numbler
      a13n270, f032110052, lra00386, lra02429, mg434, 8el730042001, 9ar2713, 9ar3713, 9ar3713g, 9ar3739, 9ar3739g, 5227, 12410, 12419n, 12680n, 12680n120a, 30744ri, 75774, 202017, 439189, 470605, 470872, 480860, 510804, 510817, 2937130, 2937130a, 20150114, 71249002, 71340002, 71490502, 71490702, 71490802, 71491002, 71543002, 500009254, 500109404, 816027045
