Article no.: F032110175

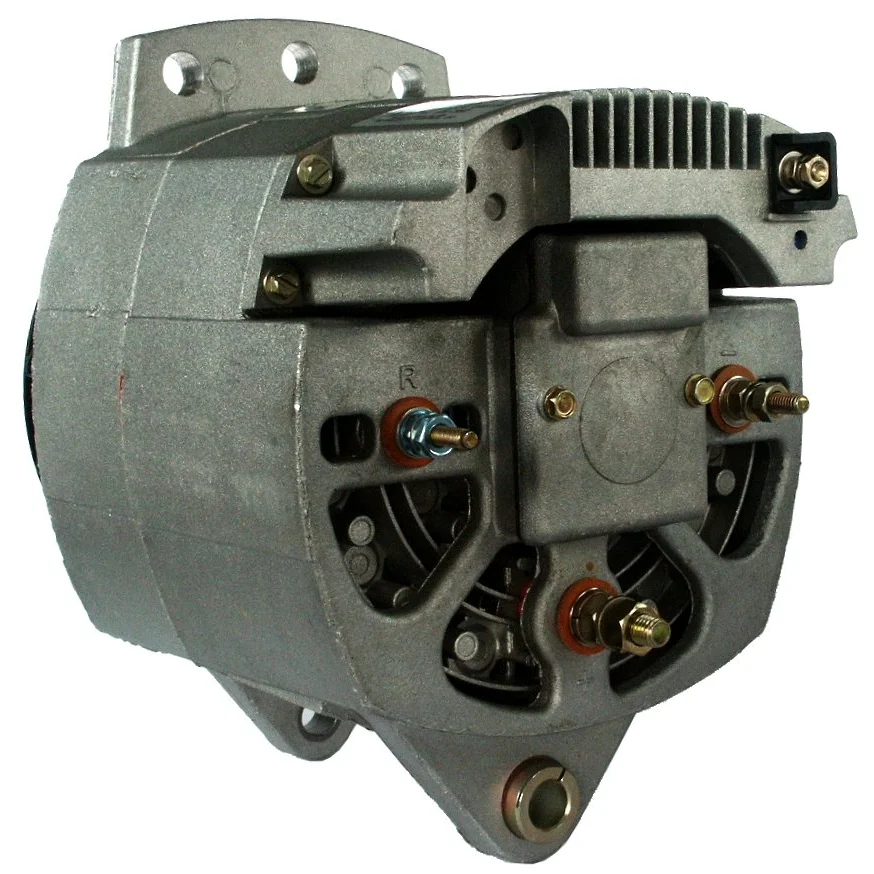

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 100, Rotation: CW, Mounting bracket distributor: 103.00

Description

Voltage: 28
Amp: 100
Insulated return: Yes
Width/holder arm: 14.70
Mounting bracket dist.: 103.00
Bracket hole: 13.00
Belt adjustment bracket hole position: 56
Belt adjustment bracket hole position 3: 4
Belt adjustment bracket hole position 2: 60
Belt adjustment bracket hole 1: 1/2" UNC
Belt adjustment bracket hole 2: 1/2" UNC
Belt adjustment bracket hole 3: 1/2" UNC
Radius: 108.00
Radius 2: 107.00
Radius 3: 106.50
Radius 4: 107.50
B+: M8
Position/B+ in min.: 30
D+ Size: M5
Rotation: CW
Total length mm: 249.00
Pulley: without
Fan: EF
Regulator type: IR
Product info: BN
Servicing: Volvo
Remarks: Fan: HC-CARGO 134317. Pulley: HC-CARGO 131176.

Files

  • OEM
    aat3312, cca0220, F032110175, TM3016001, 8SC3002, 8sc3002u, 8sc3002y, 8sc3003u, 8sc3011u, 8SC3014, 8sc3014u, 8sc3015u, 8sc3019u, 8SC3133U, 10-298, 11.204.021, 44-4021, 110-158, 110-183, 110-298, 110-302, 110-316, 849748, 859490PB, 896892, 1501935, 2557832, 3279220, 460496500, 504065529, 5000789396

  • Normalised article numbler
    a9274s, a9274sr, aat3312, alt32018, bao3093, cca0220, dra0265, f032110175, lra03802, mg78, tm3016001, 8el730136001, 8sc3002, 8sc3002u, 8sc3002y, 8sc3003u, 8sc3011u, 8sc3014, 8sc3014u, 8sc3015u, 8sc3019u, 8sc3133u, 5492, 8415, 8415n, 10298, 50920ri, 110158, 110183, 110298, 110302, 110316, 444021, 486912, 849748, 859490pb, 896892, 1501935, 2557832, 3279220, 9212554, 11204021, 32118703, 460496500, 504065529, 646007100, 646048100, 5000789396, 5001221004
  • Description
    Voltage: 28
    Amp: 100
    Insulated return: Yes
    Width/holder arm: 14.70
    Mounting bracket dist.: 103.00
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 56
    Belt adjustment bracket hole position 3: 4
    Belt adjustment bracket hole position 2: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Belt adjustment bracket hole 2: 1/2" UNC
    Belt adjustment bracket hole 3: 1/2" UNC
    Radius: 108.00
    Radius 2: 107.00
    Radius 3: 106.50
    Radius 4: 107.50
    B+: M8
    Position/B+ in min.: 30
    D+ Size: M5
    Rotation: CW
    Total length mm: 249.00
    Pulley: without
    Fan: EF
    Regulator type: IR
    Product info: BN
    Servicing: Volvo
    Remarks: Fan: HC-CARGO 134317. Pulley: HC-CARGO 131176.

    Files

  • Suitable for these vehicles

    • OEM
      aat3312, cca0220, F032110175, TM3016001, 8SC3002, 8sc3002u, 8sc3002y, 8sc3003u, 8sc3011u, 8SC3014, 8sc3014u, 8sc3015u, 8sc3019u, 8SC3133U, 10-298, 11.204.021, 44-4021, 110-158, 110-183, 110-298, 110-302, 110-316, 849748, 859490PB, 896892, 1501935, 2557832, 3279220, 460496500, 504065529, 5000789396

    • Normalised article numbler
      a9274s, a9274sr, aat3312, alt32018, bao3093, cca0220, dra0265, f032110175, lra03802, mg78, tm3016001, 8el730136001, 8sc3002, 8sc3002u, 8sc3002y, 8sc3003u, 8sc3011u, 8sc3014, 8sc3014u, 8sc3015u, 8sc3019u, 8sc3133u, 5492, 8415, 8415n, 10298, 50920ri, 110158, 110183, 110298, 110302, 110316, 444021, 486912, 849748, 859490pb, 896892, 1501935, 2557832, 3279220, 9212554, 11204021, 32118703, 460496500, 504065529, 646007100, 646048100, 5000789396, 5001221004
