HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110176

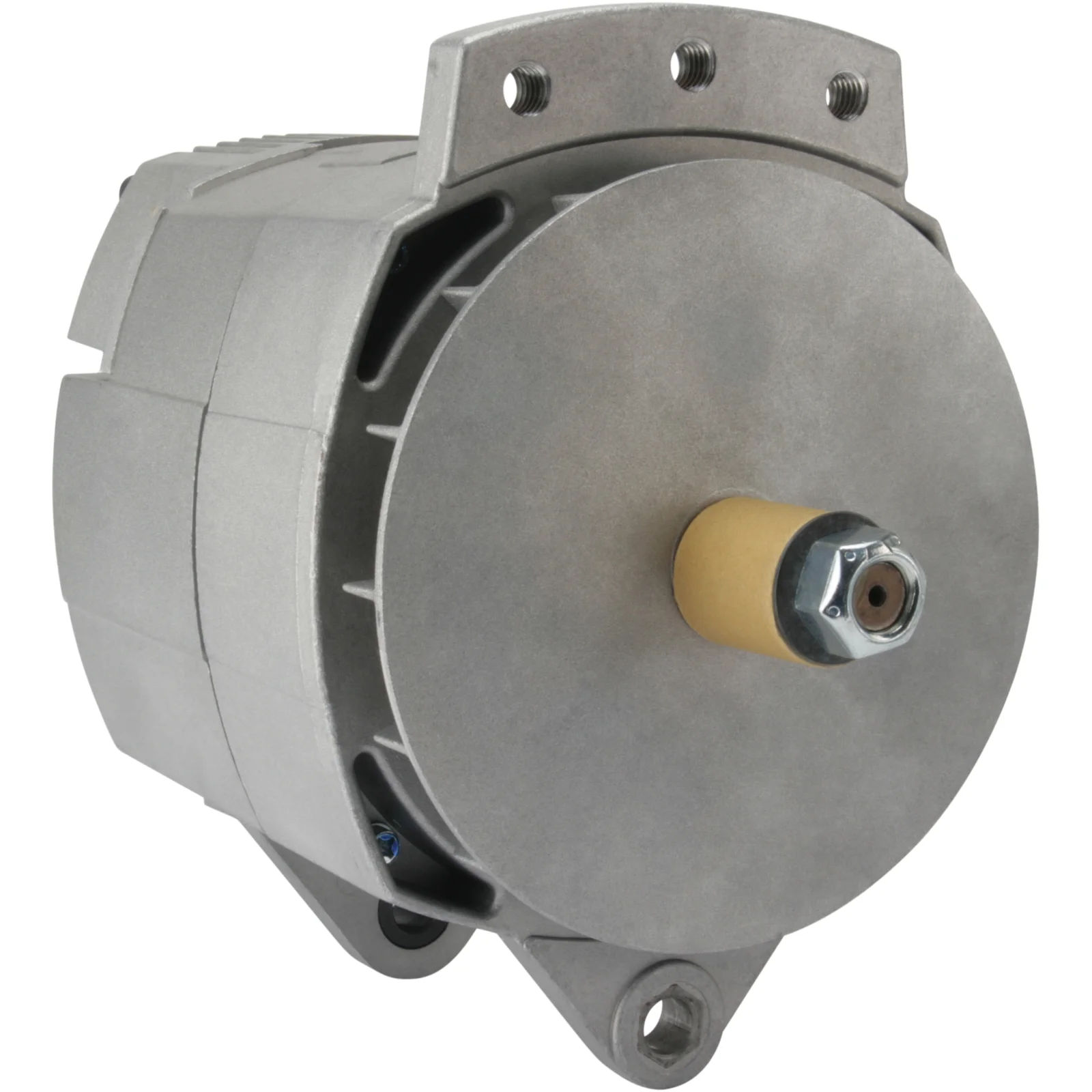

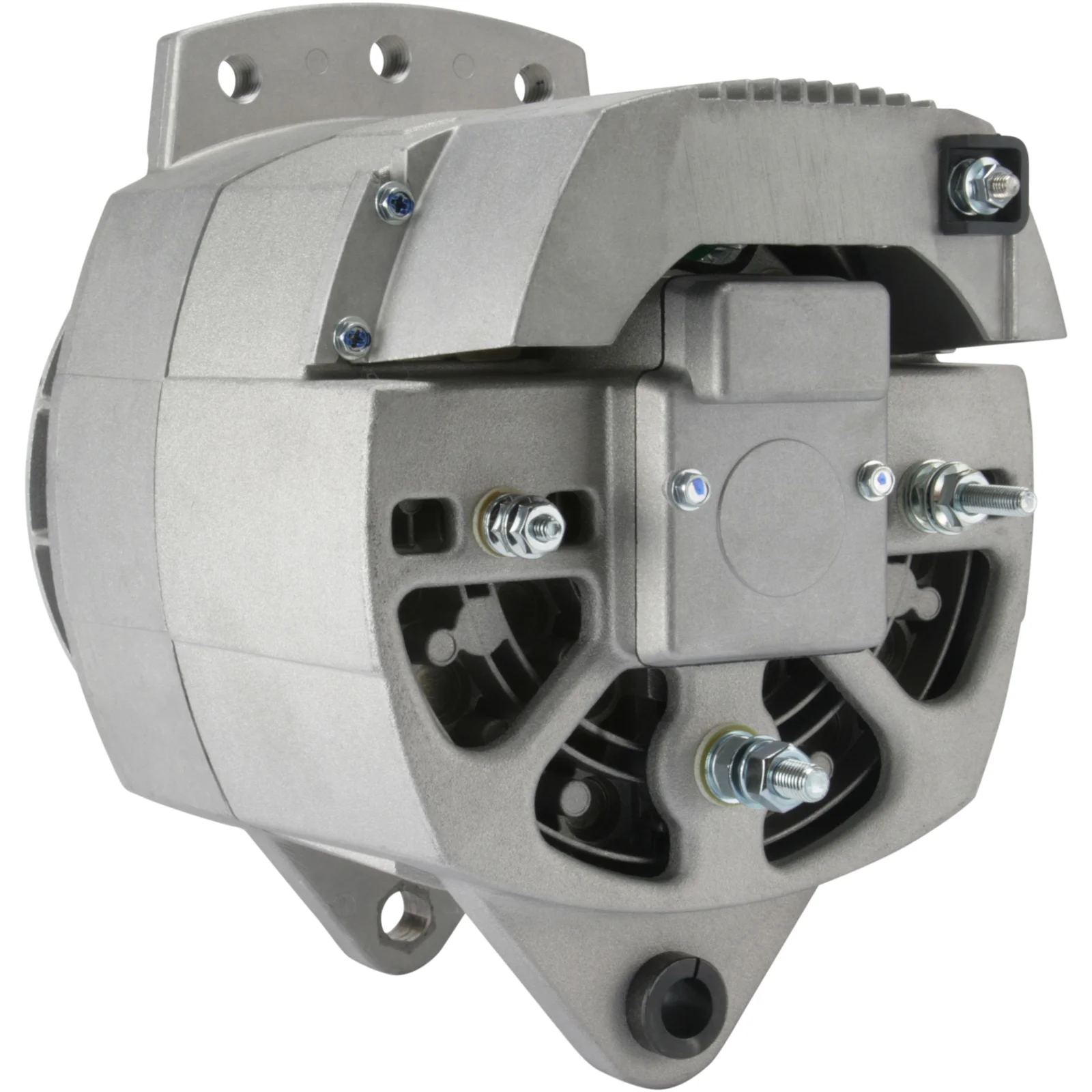

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 175, Rotation: CW, Mounting bracket distributor: 101.50

Description

Industry/Marine Alternator | Alternator → Alternator 24V-175A 24V - 175A, insulated Cut-in speed: 2000 rpm, max. speed 8000 Ignition- or lamp-activated Recommended for low-voltage applications GE-8415 100A, cut-in 1100 rpm, Alternative: Original Prestolite brand in stock = PL 110-258 For Yourex product order GE-8422

Voltage: 28
Amp: 175
Insulated return: Yes
Terminal: W
Width/holder arm: 14.70
Mounting bracket distance: 101.50
Bracket hole: 13.00
Belt adjustment bracket hole position: 55
Belt adjustment bracket hole position 3: 5
Belt adjustment bracket hole position 2: 60
Belt adjustment bracket hole 1: 1/2" UNC
Belt adjustment bracket hole 2: 1/2" UNC
Belt adjustment bracket hole 3: 1/2" UNC
Radius: 108.00
Radius 2: 107.00
Radius 3: 100.00
Radius 4: 104.00
B+: 5/16" UNC
Position/B+ in min.: 30
D+ Size: 10-24 UNC
Rotation: CW
W plug type: M5
Total length mm: 278.00
Pulley: w/o
Fan: EF
Regulator type: IR
Product info: BN
Servicing: Volvo Penta

Files

  • OEM
    F032110176, F042308040, 8SC 3019U, 8sc3005v, 8sc3005y, 8SC3009Z, 8sc3009z, 8SC3009ZA, 8sc3009za, 8sc3029z, 8SC3157V, 010-258, 15-0921, 110-184, 110-258, 110-258a, 110-316, 110-569, 859477B, 859477PB, 3001117, 3088320

  • Normalised article numbler
    a9329s, alt0193, alt32021, bao3168, cal11607, dra0266, dra0267, dra0267n, f032110176, f042308022, f042308039, f042308040, f042511762, f042a08022, f042a08039, 8el730137001, 8sc3005v, 8sc3005y, 8sc3009z, 8sc3009za, 8sc3019u, 8sc3029z, 8sc3157v, 5493, 7412, 8415n, 8416, 8422, 8422n, 010258, 50921ri, 75724, 110184, 110258, 110258a, 110316, 110569, 150921, 859477b, 859477pb, 3001117, 3088320, 816020175, 5001221754
  • Description
    Industry/Marine Alternator | Alternator → Alternator 24V-175A 24V - 175A, insulated Cut-in speed: 2000 rpm, max. speed 8000 Ignition- or lamp-activated Recommended for low-voltage applications GE-8415 100A, cut-in 1100 rpm, Alternative: Original Prestolite brand in stock = PL 110-258 For Yourex product order GE-8422

    Voltage: 28
    Amp: 175
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 14.70
    Mounting bracket distance: 101.50
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 55
    Belt adjustment bracket hole position 3: 5
    Belt adjustment bracket hole position 2: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Belt adjustment bracket hole 2: 1/2" UNC
    Belt adjustment bracket hole 3: 1/2" UNC
    Radius: 108.00
    Radius 2: 107.00
    Radius 3: 100.00
    Radius 4: 104.00
    B+: 5/16" UNC
    Position/B+ in min.: 30
    D+ Size: 10-24 UNC
    Rotation: CW
    W plug type: M5
    Total length mm: 278.00
    Pulley: w/o
    Fan: EF
    Regulator type: IR
    Product info: BN
    Servicing: Volvo Penta

    Files

  • Suitable for these vehicles

    • OEM
      F032110176, F042308040, 8SC 3019U, 8sc3005v, 8sc3005y, 8SC3009Z, 8sc3009z, 8SC3009ZA, 8sc3009za, 8sc3029z, 8SC3157V, 010-258, 15-0921, 110-184, 110-258, 110-258a, 110-316, 110-569, 859477B, 859477PB, 3001117, 3088320

    • Normalised article numbler
      a9329s, alt0193, alt32021, bao3168, cal11607, dra0266, dra0267, dra0267n, f032110176, f042308022, f042308039, f042308040, f042511762, f042a08022, f042a08039, 8el730137001, 8sc3005v, 8sc3005y, 8sc3009z, 8sc3009za, 8sc3019u, 8sc3029z, 8sc3157v, 5493, 7412, 8415n, 8416, 8422, 8422n, 010258, 50921ri, 75724, 110184, 110258, 110258a, 110316, 110569, 150921, 859477b, 859477pb, 3001117, 3088320, 816020175, 5001221754
