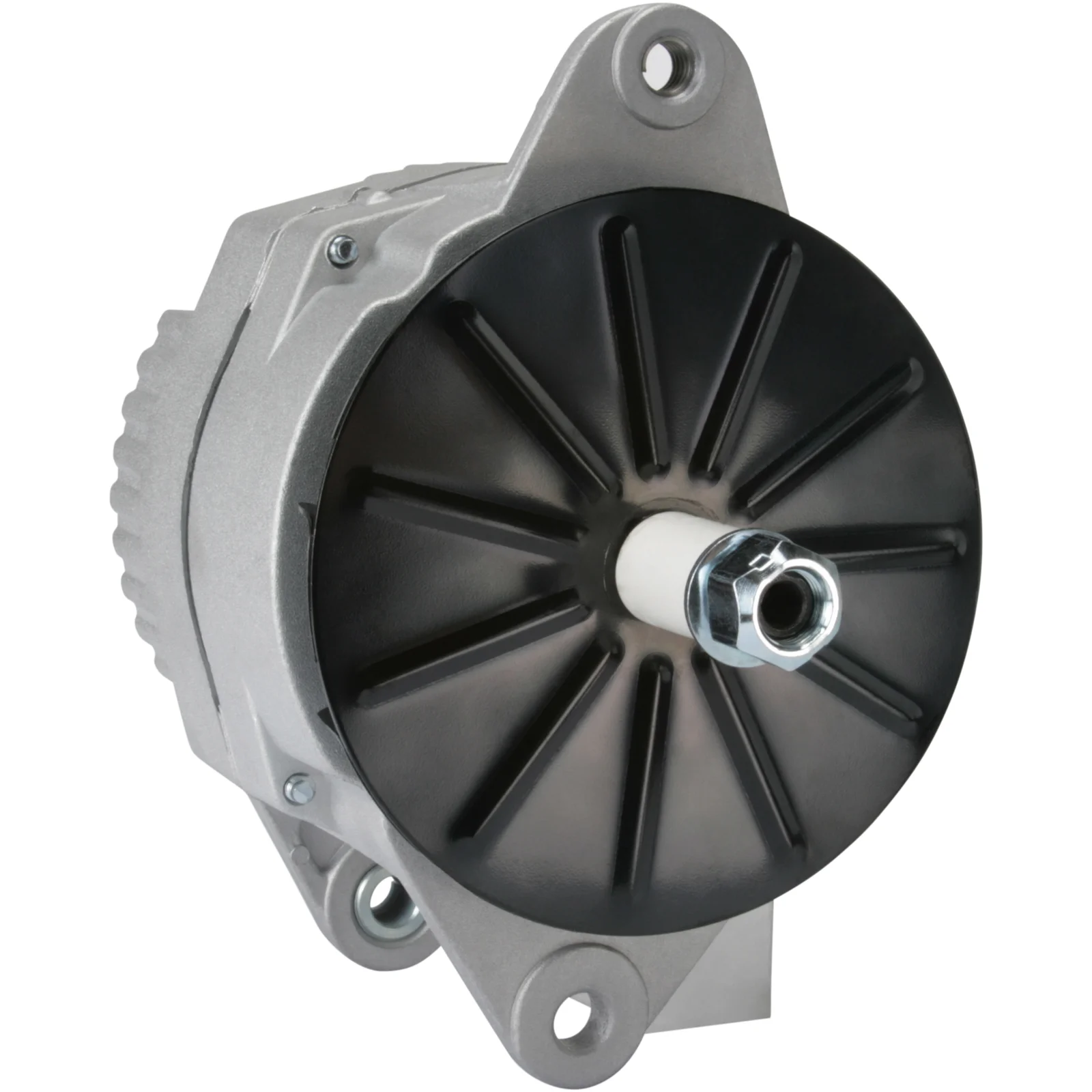

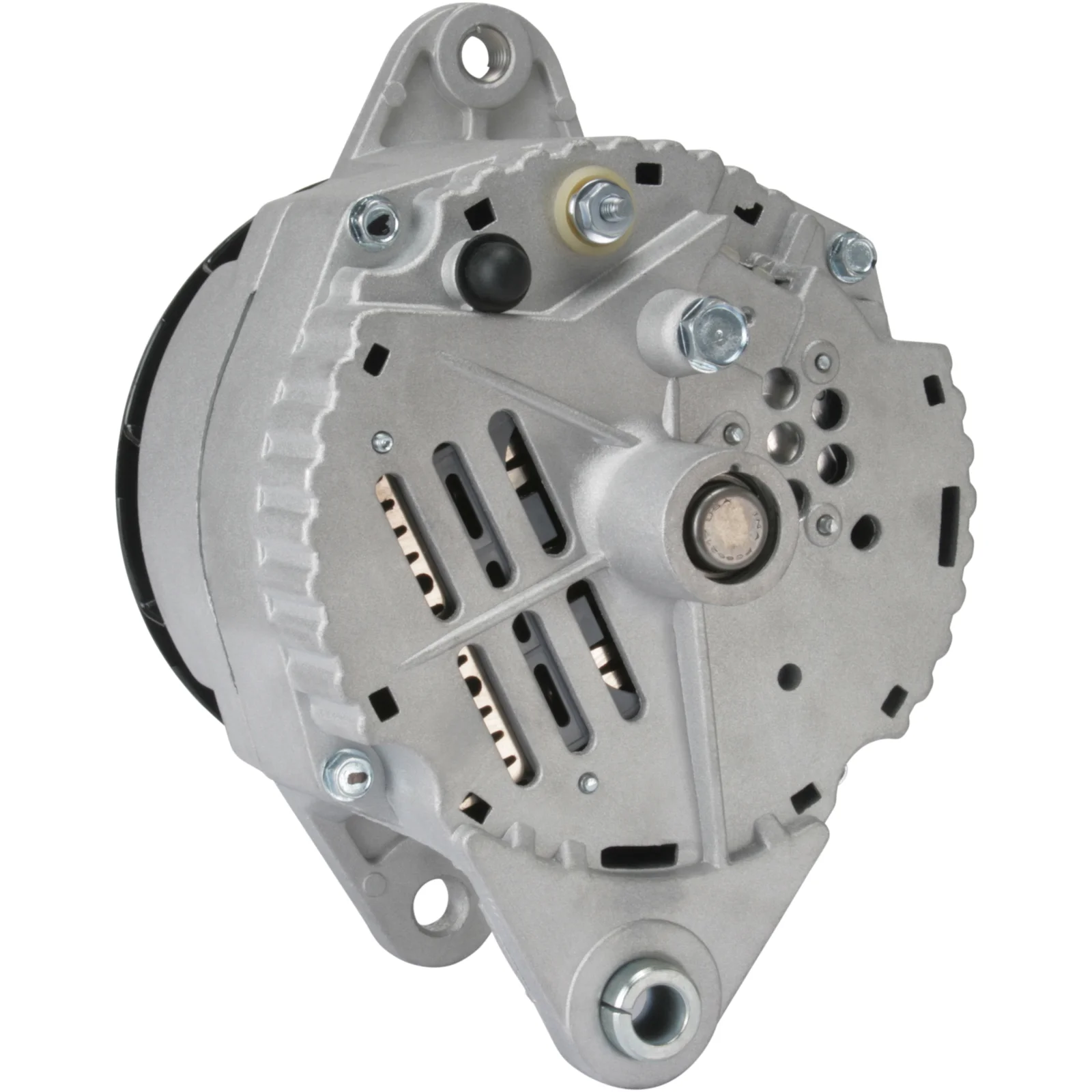

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110300

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 65, Rotation: CW, Mounting bracket distributor: 103.00

Description

Voltage: 28
Amp: 65
Terminal: W
Width/holder arm: 12.00
Mounting bracket dist.: 103.00
Bracket hole: 12.00
Belt. adjustment bracket hole position.: 60
Belt. adjustment bracket hole 1: 1/2" UNC
Radius: 116.00
Radius 2: 117.50
B+: M6
Position/B+ in min.: 57
Rotation: CW
Total length mm: 226.50
One Wire hookup (Self exciting): Yes
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: International
Remarks: Replacing: 27SI. Shaft diameter: 22.00 mm. Fan: HC-CARGO 131854.

Files

  • OEM
    a49652, F032110300, L72955, 321-654, 214169, 683594C91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 3603853rx, 10463160

  • Normalised article numbler
    a173, a49652, adr0009, alt40000, cal60614, da07197, drz0115, f032110300, l72955, 8el730145001, 1049, 5501, 7197, 7197n, 7197r, 20127, 20128, 42704, 42704p, 50929ri, 75795, 134059, 201271, 214169, 291187, 321654, 483692, 683594c91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 1177600dr, 3603853rx, 10463160, 32992077, 90013100, 500119654
  • Description
    Voltage: 28
    Amp: 65
    Terminal: W
    Width/holder arm: 12.00
    Mounting bracket dist.: 103.00
    Bracket hole: 12.00
    Belt. adjustment bracket hole position.: 60
    Belt. adjustment bracket hole 1: 1/2" UNC
    Radius: 116.00
    Radius 2: 117.50
    B+: M6
    Position/B+ in min.: 57
    Rotation: CW
    Total length mm: 226.50
    One Wire hookup (Self exciting): Yes
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: International
    Remarks: Replacing: 27SI. Shaft diameter: 22.00 mm. Fan: HC-CARGO 131854.

    Files

  • Suitable for these vehicles

    • OEM
      a49652, F032110300, L72955, 321-654, 214169, 683594C91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 3603853rx, 10463160

    • Normalised article numbler
      a173, a49652, adr0009, alt40000, cal60614, da07197, drz0115, f032110300, l72955, 8el730145001, 1049, 5501, 7197, 7197n, 7197r, 20127, 20128, 42704, 42704p, 50929ri, 75795, 134059, 201271, 214169, 291187, 321654, 483692, 683594c91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 1177600dr, 3603853rx, 10463160, 32992077, 90013100, 500119654
