Article no.: F032110448

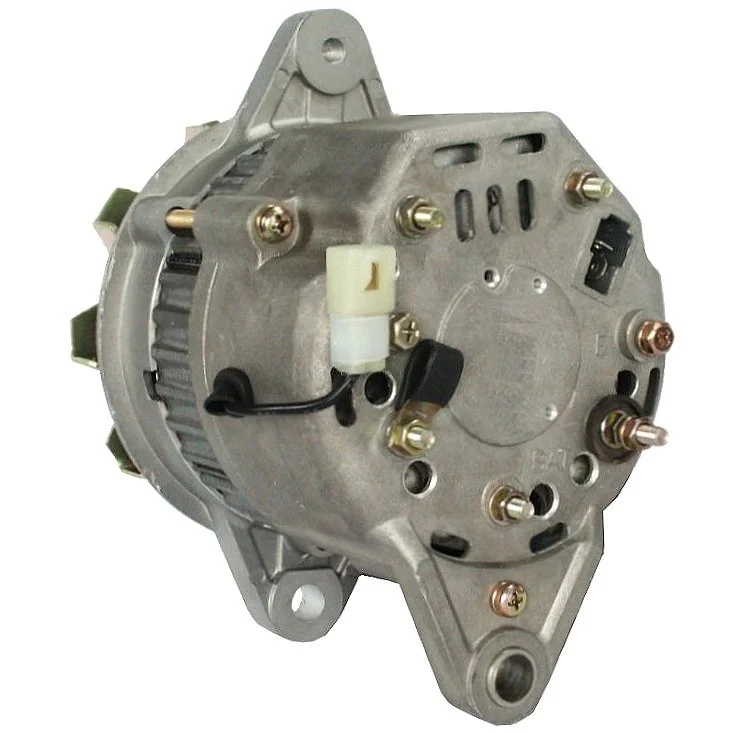

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 20, Rotation: CW, Mounting bracket distance: 81.30

Description

Voltage: 28 Amp: 20 Terminal: W Pulley dist.: 44.50 Width/holder arm: 13.50 Mount. bracket dist.: 81.30 Bracket hole: 10.40 Belt. adj. brackethole pos.: 60 Belt. adj. bracket hole 1: M8 Pulley dia.: 85.00 Grooves/pulley: 1 Radius: 78.00 Radius 2: 78.00 B+: M5 Position/B+ in min.: 20 D+ Size: Plug Rotation: CW Plug no.: PL09 Total length mm: 165.00 Pulley: P Regulator type: IR Prod. info: BN Servicing: Mitsubishi

Files

  • OEM
    A001T70783, a1t70783, F032110448, lr220-23, lr220-24, 5812003300, 5812003350

  • Normalised article numbler
    a001t70783, a1t70783, a5154, a5156, alt32095, cal35602, dra3386, f032110448, lr22023, lr22024, lra02437, 8el730130001, 5425, 12114, 12114n, 12309, 12309n, 40796ri, 75819, 119143, 480930, 1247101hi, 12060501, 12060603, 526101204, 543101204, 5812003300, 5812003350
  • Description
    Voltage: 28 Amp: 20 Terminal: W Pulley dist.: 44.50 Width/holder arm: 13.50 Mount. bracket dist.: 81.30 Bracket hole: 10.40 Belt. adj. brackethole pos.: 60 Belt. adj. bracket hole 1: M8 Pulley dia.: 85.00 Grooves/pulley: 1 Radius: 78.00 Radius 2: 78.00 B+: M5 Position/B+ in min.: 20 D+ Size: Plug Rotation: CW Plug no.: PL09 Total length mm: 165.00 Pulley: P Regulator type: IR Prod. info: BN Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A001T70783, a1t70783, F032110448, lr220-23, lr220-24, 5812003300, 5812003350

    • Normalised article numbler
      a001t70783, a1t70783, a5154, a5156, alt32095, cal35602, dra3386, f032110448, lr22023, lr22024, lra02437, 8el730130001, 5425, 12114, 12114n, 12309, 12309n, 40796ri, 75819, 119143, 480930, 1247101hi, 12060501, 12060603, 526101204, 543101204, 5812003300, 5812003350
