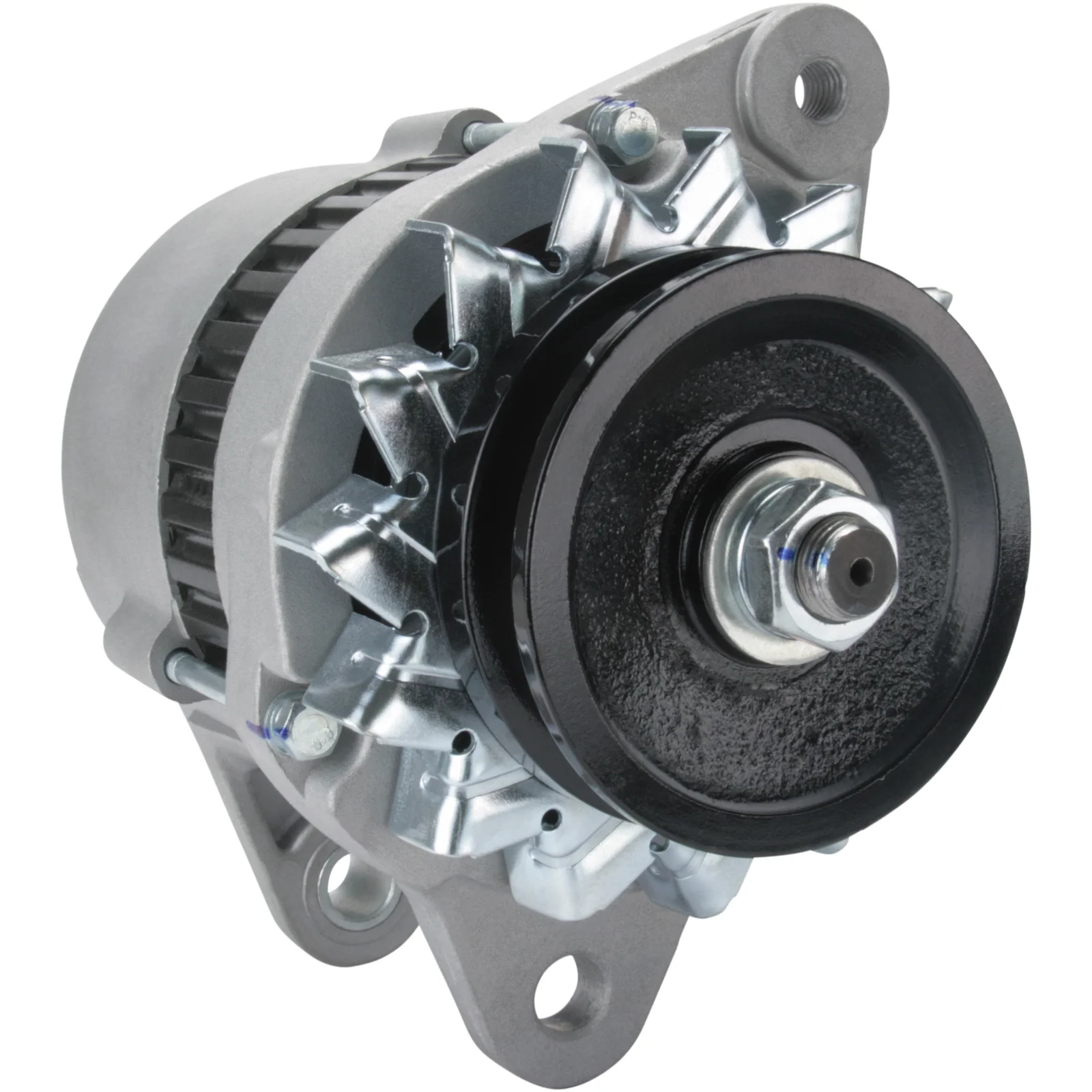

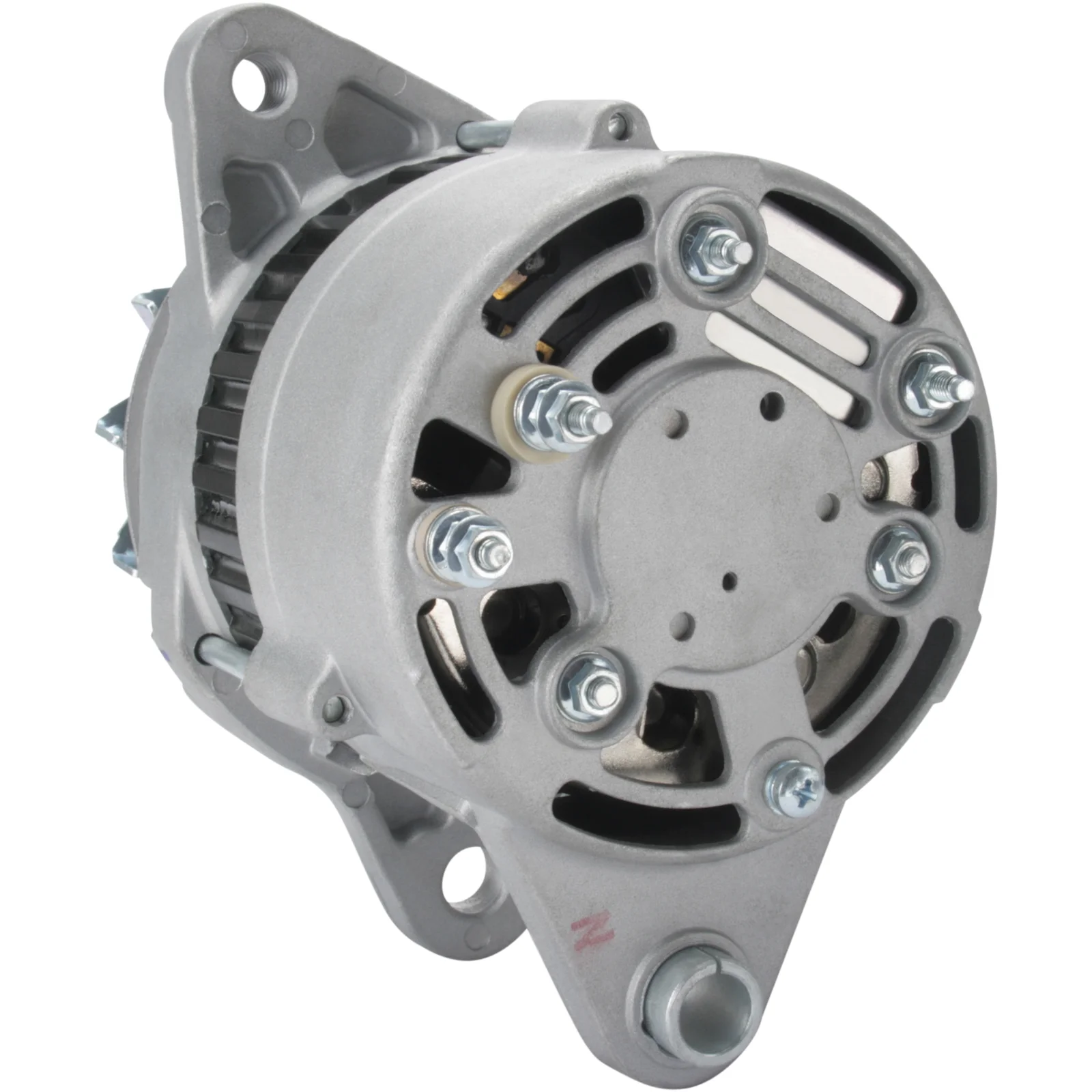

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110562

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 25, Rotation: CW, Mounting bracket distributor: 73.50

Description

Voltage: 28
Amp: 25
Pulley diameter: 62.50
Width/holder arm: 12.00
Mounting bracket distance: 73.50
Bracket hole: 14.00
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M12
Pulley diameter: 101.00
Grooves/pulley: 1
Radius: 85.50
Radius 2: 86.50
B+: M5
Position/B+ in min.: 45
D+ Size: M5
Rotation: CW
Total length mm: 210.00
Pulley: P
Regulator type: IR
Production info: BN
Servicing: Komatsu

Files

  • OEM
    0-33000-2860, 0-33000-3070, 0-33000-5280, 0-33000-5860, 0-33000-5870, 0-33000-6511, F032110562, 600-821-5580, 600-821-6110, 600-821-6120, 600-821-6130, 600-821-6140, 600-821-6160

  • Normalised article numbler
    a9026, a9027, alt29000, alt7151a, alt7151d, cal50600, f032110562, f042309001, f042309002, f042309005, f042a09002, f042a09005, 8el730123001, 5419, 12251, 12251n1g, 12260, 12260n, 40789ri, 119366, 0330002860, 0330003070, 0330005280, 0330005860, 0330005870, 0330006511, 543113254, 6008215580, 6008216110, 6008216120, 6008216130, 6008216140, 6008216160
  • Description
    Voltage: 28
    Amp: 25
    Pulley diameter: 62.50
    Width/holder arm: 12.00
    Mounting bracket distance: 73.50
    Bracket hole: 14.00
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M12
    Pulley diameter: 101.00
    Grooves/pulley: 1
    Radius: 85.50
    Radius 2: 86.50
    B+: M5
    Position/B+ in min.: 45
    D+ Size: M5
    Rotation: CW
    Total length mm: 210.00
    Pulley: P
    Regulator type: IR
    Production info: BN
    Servicing: Komatsu

    Files

  • Suitable for these vehicles

    • OEM
      0-33000-2860, 0-33000-3070, 0-33000-5280, 0-33000-5860, 0-33000-5870, 0-33000-6511, F032110562, 600-821-5580, 600-821-6110, 600-821-6120, 600-821-6130, 600-821-6140, 600-821-6160

    • Normalised article numbler
      a9026, a9027, alt29000, alt7151a, alt7151d, cal50600, f032110562, f042309001, f042309002, f042309005, f042a09002, f042a09005, 8el730123001, 5419, 12251, 12251n1g, 12260, 12260n, 40789ri, 119366, 0330002860, 0330003070, 0330005280, 0330005860, 0330005870, 0330006511, 543113254, 6008215580, 6008216110, 6008216120, 6008216130, 6008216140, 6008216160
