Article no.: F032110952

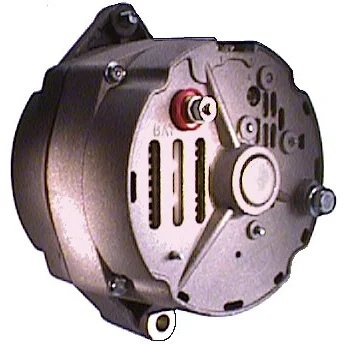

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 40, Rotation: CW, Pulley diameter: 70.80

Description

Voltage: 28
Amp: 40
Terminal: W
Pulley dist.: 75.50
Width/holder arm: 50.70
Bracket hole: 10.10
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 5/16" UNC
Pulley dia.: 70.80
Grooves/pulley: 1
Radius: 82.00
Radius 2: 84.00
B+: M5
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL216
Total length mm: 166.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Case
Remarks: Replacing: 10SI.

Files

  • OEM
    F032110952, 1101204, 1102918, 1102919, 1103031, 1103123, 1105510, 1105537, 3604476rx

  • Normalised article numbler
    alt22022, bao3203r, cal60625, drz0143, f032110952, 8el730168001, 5524, 7176, 7176n, 7179, 48993, 1101204, 1102918, 1102919, 1103031, 1103123, 1105510, 1105537, 3604476rx, 90013129n, 585103404, 646042040
  • Description
    Voltage: 28
    Amp: 40
    Terminal: W
    Pulley dist.: 75.50
    Width/holder arm: 50.70
    Bracket hole: 10.10
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 5/16" UNC
    Pulley dia.: 70.80
    Grooves/pulley: 1
    Radius: 82.00
    Radius 2: 84.00
    B+: M5
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL216
    Total length mm: 166.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Case
    Remarks: Replacing: 10SI.

    Files

  • Suitable for these vehicles

    • OEM
      F032110952, 1101204, 1102918, 1102919, 1103031, 1103123, 1105510, 1105537, 3604476rx

    • Normalised article numbler
      alt22022, bao3203r, cal60625, drz0143, f032110952, 8el730168001, 5524, 7176, 7176n, 7179, 48993, 1101204, 1102918, 1102919, 1103031, 1103123, 1105510, 1105537, 3604476rx, 90013129n, 585103404, 646042040
