Article no.: F032110977

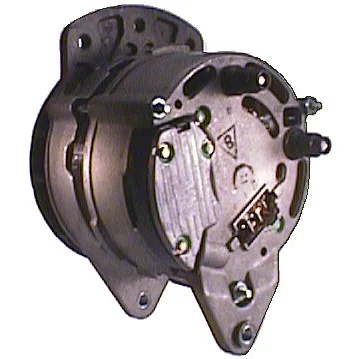

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 35, Rotation: CW, Mount. bracket dist.: 84.00

Description

Voltage: 28
Amp: 35
Terminal: W
Pulley dist.: 41.80
Width/holder arm: 11.00
Mount. bracket dist.: 84.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 8.30
Belt. adj. bracket hole 2: 8.30
Belt. adj. bracket hole 3: 8.30
Pulley dia.: 71.50
Grooves/pulley: 1
Radius: 87.50
Radius 2: 83.00
Radius 3: 82.00
Radius 4: 83.00
B+: M6
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 165.50
Pulley: P
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032110977, NAB501, nab901, 66021623, 66021623M

  • Normalised article numbler
    a4037, bao3212, f032110977, nab501, nab901, 8el737673001, 5775, 12719noe, 301468ri, 016001055, 66021174, 66021623, 66021623m
  • Description
    Voltage: 28
    Amp: 35
    Terminal: W
    Pulley dist.: 41.80
    Width/holder arm: 11.00
    Mount. bracket dist.: 84.00
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 55
    Belt. adj. brackethole pos. 3: 5
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 8.30
    Belt. adj. bracket hole 2: 8.30
    Belt. adj. bracket hole 3: 8.30
    Pulley dia.: 71.50
    Grooves/pulley: 1
    Radius: 87.50
    Radius 2: 83.00
    Radius 3: 82.00
    Radius 4: 83.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 165.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032110977, NAB501, nab901, 66021623, 66021623M

    • Normalised article numbler
      a4037, bao3212, f032110977, nab501, nab901, 8el737673001, 5775, 12719noe, 301468ri, 016001055, 66021174, 66021623, 66021623m
